Trailer breakaway wiring is a critical component of towing safety, ensuring that your trailer remains secure and under control even if it becomes detached from the towing vehicle. Understanding the intricacies of trailer breakaway wiring can help you maintain a safe and reliable towing setup. This guide will walk you through the essentials of trailer breakaway wiring, including its purpose, components, installation, and maintenance.
Understanding Trailer Breakaway Wiring
Trailer breakaway wiring is designed to activate the trailer's brakes in the event of an accidental detachment from the towing vehicle. This safety feature is crucial for preventing runaway trailers, which can pose significant risks to other drivers and property. The system typically includes a breakaway switch, a battery, and wiring that connects these components to the trailer's braking system.
Components of Trailer Breakaway Wiring
The trailer breakaway system consists of several key components:

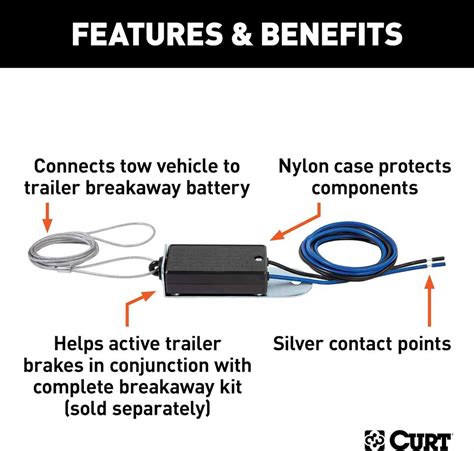

- Breakaway Switch: This is the primary component that activates the trailer's brakes when the trailer becomes detached from the towing vehicle.
- Battery: A dedicated battery powers the breakaway system, ensuring that it functions even if the trailer's main power source is disconnected.
- Wiring: The wiring connects the breakaway switch to the battery and the trailer's braking system. It is essential to use high-quality, properly insulated wiring to ensure reliability.
- Safety Chain: While not part of the electrical system, safety chains are crucial for physically securing the trailer to the towing vehicle. They provide an additional layer of safety in case of a breakaway event.
Installing Trailer Breakaway Wiring
Installing trailer breakaway wiring involves several steps. Here is a detailed guide to help you through the process:
Gathering the Necessary Tools and Materials
Before you begin, ensure you have the following tools and materials:
- Breakaway switch
- Battery
- Wiring (appropriate gauge for your trailer's electrical system)
- Wire strippers
- Crimp connectors
- Safety chains
- Mounting hardware
Step-by-Step Installation
Follow these steps to install your trailer breakaway wiring:
- Mount the Breakaway Switch: Choose a secure location on the trailer frame to mount the breakaway switch. Ensure it is easily accessible but protected from damage.
- Install the Battery: Mount the battery in a secure and ventilated area. Ensure it is protected from moisture and physical damage.
- Run the Wiring: Connect one end of the wiring to the breakaway switch and the other end to the battery. Ensure the wiring is routed safely, avoiding sharp edges and moving parts.
- Connect to the Braking System: Connect the wiring from the breakaway switch to the trailer's braking system. This typically involves connecting to the brake controller or directly to the brake magnets.
- Test the System: Before hitting the road, test the breakaway system to ensure it functions correctly. Disconnect the trailer from the towing vehicle and pull the pin on the breakaway switch. The trailer's brakes should engage immediately.
🔧 Note: Always refer to the manufacturer's instructions for specific details on installing the breakaway switch and battery. Ensure all connections are secure and properly insulated to prevent short circuits.
Maintaining Trailer Breakaway Wiring
Maintaining your trailer breakaway wiring is essential for ensuring its reliability. Regular inspections and maintenance can help prevent failures and ensure your safety on the road. Here are some key maintenance tips:
- Inspect Wiring: Regularly check the wiring for any signs of damage, such as frayed insulation or corrosion. Replace any damaged wiring immediately.
- Check Connections: Ensure all connections are secure and free of corrosion. Use dielectric grease to protect connections from moisture.
- Test the System: Periodically test the breakaway system to ensure it functions correctly. This can be done by disconnecting the trailer and pulling the pin on the breakaway switch.
- Battery Maintenance: Keep the battery charged and in good condition. Check the battery terminals for corrosion and clean them as needed.
🔧 Note: Always follow the manufacturer's recommendations for maintaining the breakaway system. Regular maintenance can extend the life of your components and ensure reliable performance.
Troubleshooting Common Issues
Even with proper installation and maintenance, issues can arise with trailer breakaway wiring. Here are some common problems and their solutions:
| Problem | Solution |
|---|---|
| Brakes Not Engaging | Check the wiring for any breaks or loose connections. Ensure the battery is charged and the breakaway switch is functioning correctly. |
| Corroded Connections | Clean the connections with a wire brush and apply dielectric grease to protect against future corrosion. |
| Battery Not Holding Charge | Check the battery for any signs of damage or leakage. Replace the battery if necessary. |
| Wiring Damage | Inspect the wiring for any signs of damage, such as frayed insulation or cuts. Replace any damaged wiring immediately. |
🔧 Note: If you encounter persistent issues, consult a professional to ensure the safety and reliability of your trailer breakaway system.
Ensuring Safety with Trailer Breakaway Wiring
Safety should always be your top priority when towing a trailer. Properly installed and maintained trailer breakaway wiring is a crucial component of a safe towing setup. Here are some additional safety tips to keep in mind:
- Regular Inspections: Conduct regular inspections of your trailer and towing vehicle to ensure all components are in good working order.
- Proper Loading: Ensure your trailer is properly loaded, with the weight evenly distributed. This helps maintain stability and control while towing.
- Safety Chains: Always use safety chains to provide an additional layer of security in case of a breakaway event.
- Emergency Preparedness: Carry an emergency kit in your towing vehicle, including items such as a spare tire, jack, and basic tools.
By following these guidelines and maintaining your trailer breakaway wiring, you can ensure a safe and reliable towing experience. Regular inspections, proper installation, and timely maintenance are key to preventing issues and ensuring the safety of your trailer and other road users.
Trailer breakaway wiring is a vital component of towing safety, providing an essential layer of protection in case of an accidental detachment. By understanding the components, installation, and maintenance of trailer breakaway wiring, you can ensure a safe and reliable towing experience. Regular inspections, proper loading, and emergency preparedness are additional steps you can take to enhance safety while towing. Always prioritize safety and follow manufacturer recommendations to maintain the integrity of your trailer breakaway system.
