Understanding the Thermal Convection Coefficient is crucial for anyone involved in thermal engineering, HVAC design, or any field that deals with heat transfer. This coefficient plays a pivotal role in determining how efficiently heat is transferred through fluids, whether it's air, water, or any other medium. In this post, we will delve into the intricacies of the Thermal Convection Coefficient, its importance, how it is calculated, and its applications in various industries.
What is the Thermal Convection Coefficient?

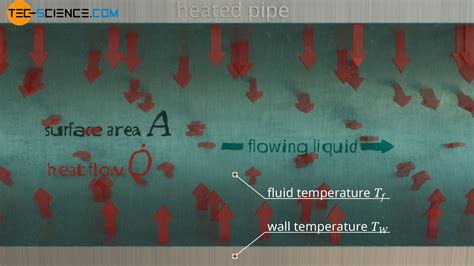

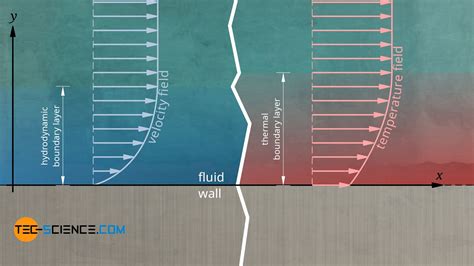

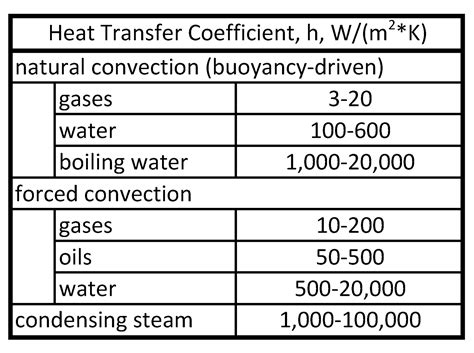

The Thermal Convection Coefficient, often denoted as ‘h’, is a measure of the effectiveness of heat transfer between a solid surface and a moving fluid. It quantifies the amount of heat that can be transferred per unit area per unit time per unit temperature difference. This coefficient is essential in designing systems where heat transfer is a critical factor, such as in heat exchangers, cooling systems, and thermal management in electronics.
Importance of the Thermal Convection Coefficient
The Thermal Convection Coefficient is vital for several reasons:
- Efficiency: It helps in designing efficient heat transfer systems by ensuring that the heat is transferred effectively without wasting energy.
- Cost Savings: By optimizing heat transfer, it can lead to significant cost savings in energy consumption.
- Safety: Proper heat management is crucial for safety, especially in industries where overheating can lead to catastrophic failures.
- Performance: In fields like electronics, where thermal management is critical, the Thermal Convection Coefficient ensures that devices operate within safe temperature ranges, enhancing their performance and longevity.
Factors Affecting the Thermal Convection Coefficient
Several factors influence the Thermal Convection Coefficient. Understanding these factors is essential for accurate calculations and effective design:
- Fluid Properties: The thermal conductivity, viscosity, and specific heat of the fluid affect the coefficient.
- Flow Velocity: The speed at which the fluid moves over the surface impacts the heat transfer rate.
- Surface Geometry: The shape and roughness of the surface can either enhance or hinder heat transfer.
- Temperature Difference: The greater the temperature difference between the surface and the fluid, the higher the heat transfer rate.
Calculating the Thermal Convection Coefficient
Calculating the Thermal Convection Coefficient involves several steps and can be done using empirical correlations or computational fluid dynamics (CFD) simulations. Here, we will focus on the empirical approach:
1. Identify the Flow Regime: Determine whether the flow is laminar or turbulent. This can be done using the Reynolds number (Re).
2. Select an Appropriate Correlation: Different correlations are available for different flow regimes and geometries. Some common correlations include:
- Dittus-Boelter Equation: Suitable for turbulent flow in pipes.
- Sieder-Tate Equation: Useful for laminar flow in pipes with constant wall temperature.
- Nusselt Number Correlations: These are often used for external flows over flat plates or cylinders.
3. Calculate the Nusselt Number (Nu): The Nusselt number is a dimensionless number that represents the ratio of convective to conductive heat transfer. It is calculated using the selected correlation.
4. Determine the Thermal Convection Coefficient: The Thermal Convection Coefficient can be calculated using the formula:
h = Nu * k / L
where k is the thermal conductivity of the fluid and L is the characteristic length.
📝 Note: The characteristic length L depends on the geometry of the system. For example, for a pipe, L is the diameter, while for a flat plate, it is the length of the plate.
Applications of the Thermal Convection Coefficient
The Thermal Convection Coefficient finds applications in various industries. Some of the key areas include:
- HVAC Systems: In heating, ventilation, and air conditioning systems, the coefficient helps in designing efficient cooling and heating systems.
- Electronics Cooling: In the electronics industry, managing heat is crucial for the performance and longevity of devices. The Thermal Convection Coefficient is used to design effective cooling solutions.
- Automotive Industry: In engines and other automotive components, heat management is essential for performance and safety. The coefficient helps in designing efficient cooling systems.
- Food Processing: In the food industry, heat transfer is crucial for processes like pasteurization and sterilization. The Thermal Convection Coefficient ensures that these processes are carried out efficiently.
Empirical Correlations for the Thermal Convection Coefficient
Several empirical correlations are used to calculate the Thermal Convection Coefficient for different scenarios. Here are a few commonly used correlations:
Dittus-Boelter Equation
The Dittus-Boelter equation is used for turbulent flow in pipes and is given by:
Nu = 0.023 * Re^0.8 * Pr^n
where Re is the Reynolds number, Pr is the Prandtl number, and n is 0.4 for heating and 0.3 for cooling.
Sieder-Tate Equation
The Sieder-Tate equation is used for laminar flow in pipes with constant wall temperature and is given by:
Nu = 1.86 * (Re * Pr * D/L)^(1⁄3) * (μ/μw)^0.14
where D is the diameter of the pipe, L is the length of the pipe, μ is the dynamic viscosity of the fluid, and μw is the dynamic viscosity of the fluid at the wall temperature.
Nusselt Number Correlations for External Flows
For external flows over flat plates or cylinders, the Nusselt number can be calculated using correlations specific to the geometry and flow regime. Some common correlations include:
| Geometry | Flow Regime | Correlation |
|---|---|---|
| Flat Plate | Laminar | Nu = 0.664 * Re^(1⁄2) * Pr^(1⁄3) |
| Flat Plate | Turbulent | Nu = 0.037 * Re^(4⁄5) * Pr^(1⁄3) |
| Cylinder | Cross Flow | Nu = 0.683 * Re^(1⁄2) * Pr^(1⁄3) |
📝 Note: These correlations are empirical and may not be accurate for all conditions. It is essential to validate the results with experimental data or CFD simulations when possible.
Experimental Determination of the Thermal Convection Coefficient
In some cases, it may be necessary to determine the Thermal Convection Coefficient experimentally. This can be done using various methods, such as:
- Heat Transfer Experiments: By measuring the heat transfer rate and the temperature difference between the surface and the fluid, the coefficient can be calculated.
- Thermocouples and Heat Flux Sensors: These devices can be used to measure the temperature and heat flux at the surface, allowing for the calculation of the coefficient.
- Infrared Thermography: This non-invasive method can be used to measure the surface temperature distribution, providing valuable data for calculating the coefficient.
Computational Fluid Dynamics (CFD) Simulations
CFD simulations are powerful tools for determining the Thermal Convection Coefficient. They allow for the detailed analysis of fluid flow and heat transfer in complex geometries. CFD simulations can provide insights into the flow patterns, temperature distributions, and heat transfer rates, enabling the accurate calculation of the coefficient.
Some of the key steps in performing CFD simulations for heat transfer include:
- Geometry Creation: Define the geometry of the system, including the solid surfaces and the fluid domain.
- Mesh Generation: Create a mesh that discretizes the geometry into small elements for numerical analysis.
- Boundary Conditions: Specify the boundary conditions, including the inlet and outlet velocities, temperatures, and heat fluxes.
- Solver Settings: Choose the appropriate solver settings, including the turbulence model and the discretization schemes.
- Post-Processing: Analyze the results to determine the Thermal Convection Coefficient and other relevant parameters.
📝 Note: CFD simulations require significant computational resources and expertise. It is essential to validate the results with experimental data to ensure accuracy.
Case Studies
To illustrate the application of the Thermal Convection Coefficient, let’s consider a few case studies:
Case Study 1: Cooling of an Electronic Component
In this case study, we consider the cooling of an electronic component using forced convection. The component is a flat plate with a surface area of 0.1 m², and the cooling fluid is air with a velocity of 5 m/s. The temperature of the component is 80°C, and the ambient temperature is 20°C.
The Thermal Convection Coefficient can be calculated using the correlation for turbulent flow over a flat plate:
Nu = 0.037 * Re^(4⁄5) * Pr^(1⁄3)
Given the properties of air and the flow conditions, the Reynolds number is approximately 50,000, and the Prandtl number is 0.71. Substituting these values into the correlation, we get:
Nu = 0.037 * (50,000)^(4⁄5) * (0.71)^(1⁄3) ≈ 114.5
The Thermal Convection Coefficient can then be calculated as:
h = Nu * k / L = 114.5 * 0.026 / 0.1 ≈ 30 W/m²K
This value of the Thermal Convection Coefficient can be used to design the cooling system for the electronic component.
Case Study 2: Heat Exchanger Design
In this case study, we consider the design of a heat exchanger for a chemical process. The heat exchanger is a shell-and-tube type with water flowing through the tubes and a hot fluid flowing through the shell. The goal is to determine the Thermal Convection Coefficient for the water flowing through the tubes.
The Thermal Convection Coefficient can be calculated using the Dittus-Boelter equation for turbulent flow in pipes:
Nu = 0.023 * Re^0.8 * Pr^0.4
Given the properties of water and the flow conditions, the Reynolds number is approximately 10,000, and the Prandtl number is 5.4. Substituting these values into the correlation, we get:
Nu = 0.023 * (10,000)^0.8 * (5.4)^0.4 ≈ 43.6
The Thermal Convection Coefficient can then be calculated as:
h = Nu * k / D = 43.6 * 0.6 / 0.025 ≈ 1046 W/m²K
This value of the Thermal Convection Coefficient can be used to design the heat exchanger and ensure efficient heat transfer.
These case studies illustrate the practical application of the Thermal Convection Coefficient in different scenarios. By understanding and calculating this coefficient, engineers can design efficient and effective heat transfer systems.
In conclusion, the Thermal Convection Coefficient is a fundamental parameter in heat transfer analysis. It plays a crucial role in various industries, from HVAC systems to electronics cooling and chemical processes. By understanding the factors that affect the coefficient, using appropriate empirical correlations, and validating results with experimental data or CFD simulations, engineers can design efficient and effective heat transfer systems. The Thermal Convection Coefficient is not just a theoretical concept but a practical tool that enables the optimization of thermal management in real-world applications.
