Understanding the mechanical properties of materials is crucial in various industries, from aerospace to automotive and construction. One of the most fundamental tests used to evaluate these properties is the tensile test. This test involves applying a controlled tensile (pulling) force to a material until it fractures, providing valuable data on its strength, ductility, and other critical characteristics. A key piece of equipment used in this process is the Tensile Test Machine.
What is a Tensile Test Machine?
A Tensile Test Machine is a device designed to measure the tensile properties of materials. It applies a pulling force to a specimen and records the force and elongation data, which can then be used to calculate various mechanical properties such as ultimate tensile strength, yield strength, and elongation at break. These machines are essential in quality control, research and development, and material selection processes.
Components of a Tensile Test Machine
The basic components of a Tensile Test Machine include:
- Load Frame: The structure that supports the testing process, including the crosshead and base.
- Crosshead: The moving part that applies the tensile force to the specimen.
- Load Cell: A transducer that measures the force applied to the specimen.

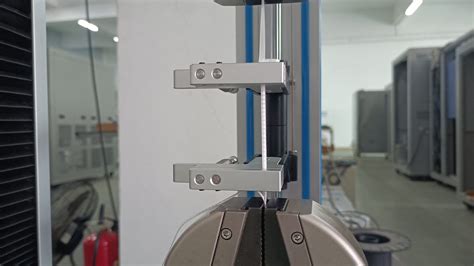

- Extensometer: A device that measures the elongation of the specimen.
- Control System: The software and hardware that control the testing process and record data.
Types of Tensile Test Machines
Tensile test machines come in various types, each suited to different applications and material types. The most common types include:

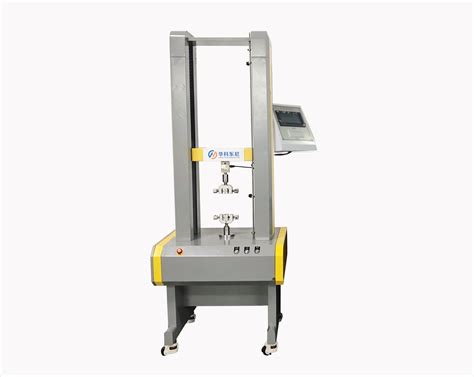

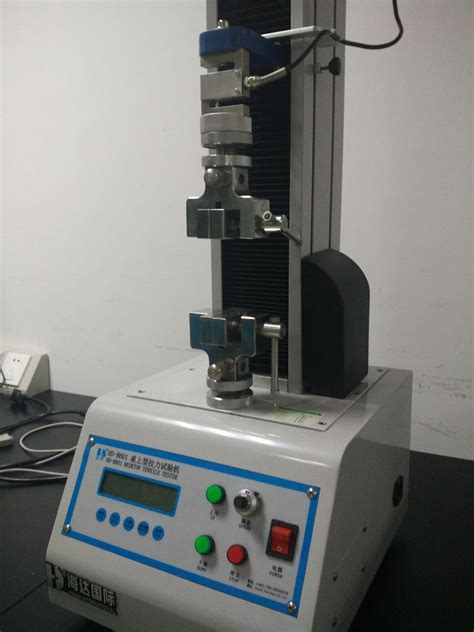

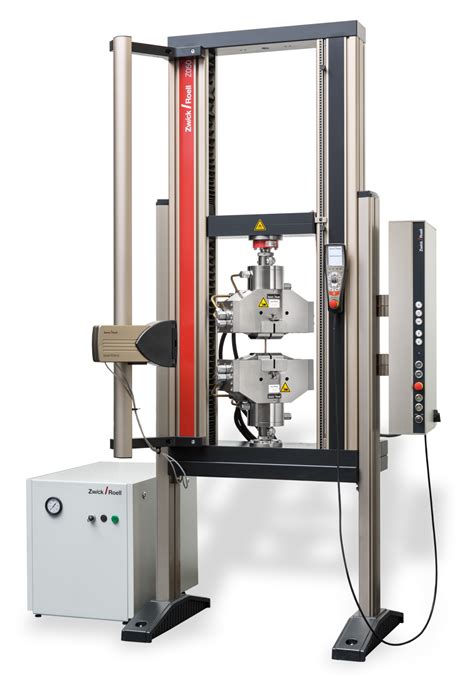

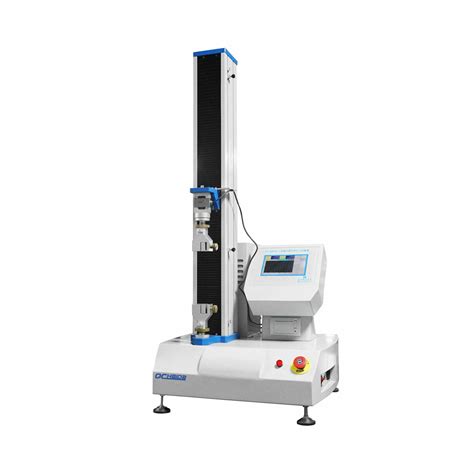

- Electromechanical Machines: These use an electric motor to drive the crosshead, providing precise control over the testing speed.

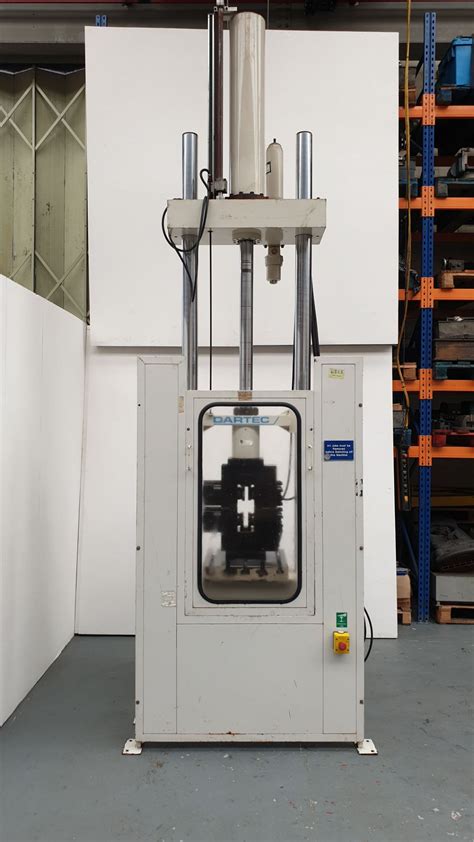

- Hydraulic Machines: These use hydraulic pressure to apply the tensile force, offering high load capacities and fast testing speeds.

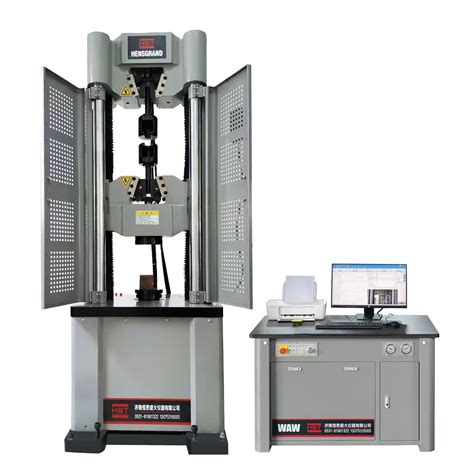

- Servohydraulic Machines: These combine the precision of electromechanical machines with the high load capacities of hydraulic machines, making them suitable for dynamic testing.
How a Tensile Test Machine Works
The operation of a Tensile Test Machine involves several key steps:
- Specimen Preparation: The material to be tested is cut into a standardized shape and size, often using a specific gauge length.
- Machine Setup: The specimen is secured in the machine's grips, and the extensometer is attached if elongation measurements are required.
- Testing: The machine applies a controlled tensile force to the specimen, gradually increasing the load until the specimen fractures.
- Data Collection: The load cell and extensometer record the force and elongation data throughout the test.
- Data Analysis: The collected data is analyzed to determine the material's mechanical properties, such as ultimate tensile strength, yield strength, and elongation at break.
🔍 Note: The specimen's shape and size are crucial for accurate results. Standardized specimens ensure consistency and comparability across different tests.
Key Mechanical Properties Measured
During a tensile test, several key mechanical properties are measured:
- Ultimate Tensile Strength (UTS): The maximum stress that a material can withstand while being stretched or pulled before failing.
- Yield Strength: The stress at which a material begins to deform plastically.
- Elongation at Break: The percentage increase in length that occurs before the specimen fractures.
- Young's Modulus: A measure of the stiffness of an elastic material, calculated as the ratio of stress to strain in the elastic region.
Applications of Tensile Test Machines
Tensile test machines are used in a wide range of industries and applications, including:
- Aerospace: Ensuring the strength and reliability of aircraft components.
- Automotive: Testing the mechanical properties of vehicle parts and materials.
- Construction: Evaluating the strength of building materials such as steel, concrete, and composites.
- Manufacturing: Quality control and material selection for various products.
- Research and Development: Developing new materials and improving existing ones.
Factors Affecting Tensile Test Results
Several factors can influence the results of a tensile test, including:
- Specimen Preparation: The shape, size, and surface finish of the specimen can affect the test results.
- Testing Speed: The rate at which the tensile force is applied can impact the material's behavior.
- Environmental Conditions: Temperature, humidity, and other environmental factors can influence the material's properties.
- Machine Calibration: Regular calibration of the Tensile Test Machine ensures accurate and reliable results.
🔍 Note: Consistent testing conditions and proper machine maintenance are essential for obtaining accurate and reproducible results.
Calibration and Maintenance of Tensile Test Machines
To ensure the accuracy and reliability of tensile test results, regular calibration and maintenance of the Tensile Test Machine are crucial. Calibration involves verifying and adjusting the machine's load cell and extensometer to ensure they are functioning correctly. Maintenance includes cleaning, lubricating, and inspecting the machine's components to prevent wear and tear.
Regular calibration and maintenance should be performed according to the manufacturer's recommendations and industry standards. This ensures that the machine operates within its specified accuracy and reliability parameters, providing consistent and reliable test results.
Advanced Features of Modern Tensile Test Machines
Modern Tensile Test Machines come with advanced features that enhance their functionality and usability. Some of these features include:
- Automated Testing: Allows for unattended testing, increasing efficiency and reducing human error.
- Data Analysis Software: Provides advanced data analysis and reporting capabilities, making it easier to interpret test results.
- Environmental Chambers: Enable testing under controlled temperature and humidity conditions, simulating real-world environments.
- High-Speed Testing: Allows for rapid testing of materials, reducing testing time and increasing throughput.
Safety Considerations
Operating a Tensile Test Machine involves handling high forces and potential hazards. Safety considerations include:
- Personal Protective Equipment (PPE): Wear appropriate PPE, including safety glasses, gloves, and protective clothing.
- Machine Guarding: Ensure that the machine is properly guarded to prevent accidental contact with moving parts.
- Emergency Stop: Familiarize yourself with the emergency stop procedures and ensure that the stop button is easily accessible.
- Training: Receive proper training on the operation and safety procedures of the Tensile Test Machine.
🔍 Note: Always follow the manufacturer's safety guidelines and industry standards when operating a Tensile Test Machine.
Tensile Test Standards
Several international standards govern the conduct of tensile tests to ensure consistency and comparability of results. Some of the most commonly used standards include:
| Standard | Description |
|---|---|
| ASTM E8 | Standard Test Methods for Tension Testing of Metallic Materials |
| ISO 6892 | Metallic materials — Tensile testing — Method of test at ambient temperature |
| ASTM D638 | Standard Test Method for Tensile Properties of Plastics |
| ISO 527 | Plastics — Determination of tensile properties |
Adhering to these standards ensures that tensile tests are conducted in a consistent and reliable manner, allowing for meaningful comparisons of material properties across different tests and laboratories.
In conclusion, the Tensile Test Machine is an indispensable tool in the evaluation of material properties. Its ability to measure key mechanical characteristics such as ultimate tensile strength, yield strength, and elongation at break makes it essential for quality control, research, and development across various industries. Understanding the components, types, and operation of a Tensile Test Machine, as well as the factors affecting test results and the importance of calibration and maintenance, is crucial for obtaining accurate and reliable data. By adhering to safety considerations and industry standards, users can ensure the safe and effective use of these machines, contributing to the advancement of material science and engineering.
