Tcp Port Dns

Understanding the intricacies of network communication is crucial for anyone involved in IT or cybersecurity. Two fundamental components of this communication are TCP port and DNS. These elements work together to ensure that data is transmitted efficiently and securely across networks. This post will delve into the details of TCP port and DNS, explaining their roles, how they interact, and their significance in modern networking.

Table of Contents

Understanding TCP Ports

TCP (Transmission Control Protocol) is a core protocol of the Internet Protocol Suite, providing reliable, ordered, and error-checked delivery of data between applications. A TCP port is a communication endpoint that allows applications to communicate over a network. Each port is identified by a 16-bit number, ranging from 0 to 65535.

TCP ports are categorized into three ranges:

Well-Known Ports (0-1023): These ports are reserved for specific services and protocols. For example, port 80 is used for HTTP, and port 443 is used for HTTPS.
Registered Ports (1024-49151): These ports are assigned by the Internet Assigned Numbers Authority (IANA) for specific services upon request.
Dynamic/Private Ports (49152-65535): These ports are used for private or custom applications and are not registered with IANA.

When a client application wants to communicate with a server, it establishes a connection using a specific TCP port. The server listens on a designated port for incoming connections. Once the connection is established, data can be transmitted reliably between the client and server.

The Role of DNS in Network Communication

DNS (Domain Name System) is a hierarchical and decentralized naming system used to translate human-readable domain names (e.g., www.example.com) into IP addresses (e.g., 192.0.2.1). This translation is essential because computers and network devices communicate using IP addresses, not domain names.

DNS operates through a series of queries and responses. When a user enters a domain name into a web browser, the browser sends a DNS query to a DNS resolver. The resolver then queries DNS servers to find the corresponding IP address. Once the IP address is obtained, the browser can establish a connection to the server using the TCP port associated with the requested service.

DNS is crucial for several reasons:

Human-Friendly: DNS makes it easier for users to remember and access websites using domain names instead of numerical IP addresses.
Load Balancing: DNS can distribute traffic across multiple servers to ensure efficient use of resources and improve performance.
Redundancy: DNS allows for the creation of redundant systems, ensuring that if one server goes down, traffic can be redirected to another server.

How TCP Ports and DNS Work Together

TCP ports and DNS work in tandem to facilitate network communication. Here’s a step-by-step breakdown of how they interact:

Domain Name Resolution: When a user enters a domain name into a web browser, the browser sends a DNS query to resolve the domain name into an IP address.
IP Address Retrieval: The DNS resolver queries various DNS servers to find the IP address associated with the domain name.
Connection Establishment: Once the IP address is obtained, the browser initiates a connection to the server using the appropriate TCP port. For example, if the user is accessing a website, the browser will use port 80 for HTTP or port 443 for HTTPS.
Data Transmission: After the connection is established, data is transmitted between the client and server using the TCP port. The TCP protocol ensures that data is delivered reliably and in the correct order.

This process is seamless and happens in the background, allowing users to access websites and services effortlessly.

Common TCP Ports and Their Uses

Understanding common TCP ports and their uses is essential for network administration and security. Here is a table of some commonly used TCP ports and their associated services:

Port Number	Service	Description
20	FTP Data	Used for data transfer in FTP (File Transfer Protocol).
21	FTP Control	Used for control commands in FTP.
22	SSH	Used for secure shell access to remote systems.
23	Telnet	Used for remote login and command execution.
25	SMTP	Used for sending email messages.
53	DNS	Used for domain name resolution.
80	HTTP	Used for web browsing and accessing websites.
110	POP3	Used for receiving email messages.
143	IMAP	Used for retrieving email messages from a mail server.
443	HTTPS	Used for secure web browsing and accessing websites.
3306	MySQL	Used for MySQL database management.
3389	RDP	Used for remote desktop protocol access.

This table provides a quick reference for some of the most commonly used TCP ports and their associated services. Understanding these ports can help in configuring network services, troubleshooting connectivity issues, and enhancing network security.

🔍 Note: The list of TCP ports and their uses is extensive, and new ports are continually being assigned for various services. It is essential to stay updated with the latest port assignments and their uses to ensure effective network management.

Security Considerations for TCP Ports and DNS

While TCP ports and DNS are essential for network communication, they also present potential security risks. Understanding these risks and implementing appropriate security measures is crucial for protecting network infrastructure.

TCP Ports Security:

Port Scanning: Attackers can use port scanning tools to identify open TCP ports on a network. This information can be used to launch targeted attacks on vulnerable services.
Firewalls: Implementing firewalls can help control incoming and outgoing traffic based on TCP ports. Firewalls can block unauthorized access to specific ports, enhancing network security.
Intrusion Detection Systems (IDS): IDS can monitor network traffic for suspicious activities related to TCP ports. If an attack is detected, the IDS can alert administrators and take appropriate actions.

DNS Security:

DNS Spoofing: Attackers can intercept and modify DNS responses to redirect users to malicious websites. This can be prevented by implementing DNSSEC (DNS Security Extensions), which provides data origin authentication and data integrity.

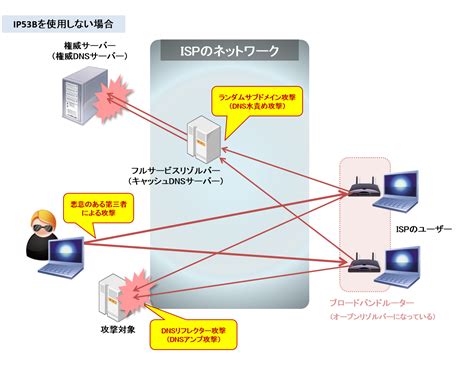

DNS Amplification Attacks: Attackers can use DNS servers to amplify the volume of traffic in a DDoS (Distributed Denial of Service) attack. Implementing rate limiting and access controls can help mitigate these attacks.
DNS Cache Poisoning: Attackers can inject false information into a DNS resolver's cache, leading to incorrect domain name resolutions. Regularly flushing the DNS cache and using secure DNS resolvers can help prevent this.

By understanding the security risks associated with TCP ports and DNS, and implementing appropriate security measures, organizations can protect their network infrastructure from potential threats.

🔒 Note: Regularly updating software and firmware, conducting security audits, and staying informed about the latest security threats are essential for maintaining a secure network environment.

Troubleshooting TCP Port and DNS Issues

Network issues related to TCP ports and DNS can disrupt communication and affect productivity. Here are some common troubleshooting steps for resolving these issues:

Troubleshooting TCP Port Issues:

Check Port Status: Use tools like `netstat` or `ss` to check if the TCP port is open and listening. For example, on a Linux system, you can use the command `sudo ss -tuln` to list all open TCP ports.
Verify Service Configuration: Ensure that the service associated with the TCP port is correctly configured and running. Check the service logs for any errors or issues.
Firewall Settings: Verify that the firewall is not blocking the TCP port. Check the firewall rules and ensure that the port is allowed for both incoming and outgoing traffic.

Troubleshooting DNS Issues:

DNS Resolution: Use tools like `nslookup` or `dig` to check if the domain name is resolving to the correct IP address. For example, you can use the command `nslookup example.com` to resolve the domain name.
DNS Server Configuration: Ensure that the DNS server is correctly configured and reachable. Check the DNS server logs for any errors or issues.
DNS Cache: Clear the DNS cache on the client and server to ensure that outdated information is not being used. On a Windows system, you can use the command `ipconfig /flushdns` to clear the DNS cache.

By following these troubleshooting steps, you can identify and resolve issues related to TCP ports and DNS, ensuring smooth network communication.

🛠️ Note: Documenting the troubleshooting process and maintaining a log of resolved issues can help in quickly identifying and resolving similar problems in the future.

In conclusion, TCP ports and DNS are fundamental components of network communication. Understanding their roles, how they interact, and the security considerations involved is essential for effective network management. By implementing appropriate security measures and following best practices for troubleshooting, organizations can ensure reliable and secure network communication.
