Switchgear is a critical component in electrical systems, responsible for controlling, protecting, and isolating electrical equipment. Understanding switchgear what is and its various types is essential for anyone involved in electrical engineering, maintenance, or operations. This blog post will delve into the fundamentals of switchgear, its types, components, and applications, providing a comprehensive overview for both beginners and professionals.

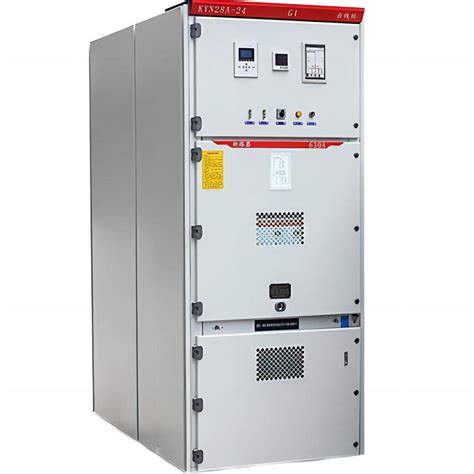

What is Switchgear?
Switchgear refers to a combination of electrical disconnect switches, fuses, or circuit breakers used to control, protect, and isolate electrical equipment. It is designed to ensure the safe and reliable operation of electrical systems by managing the flow of electrical current and protecting against faults and overloads. Switchgear can be found in various settings, including power plants, substations, industrial facilities, and commercial buildings.
Types of Switchgear
Switchgear can be categorized into several types based on their voltage levels, insulation medium, and specific applications. The main types include:

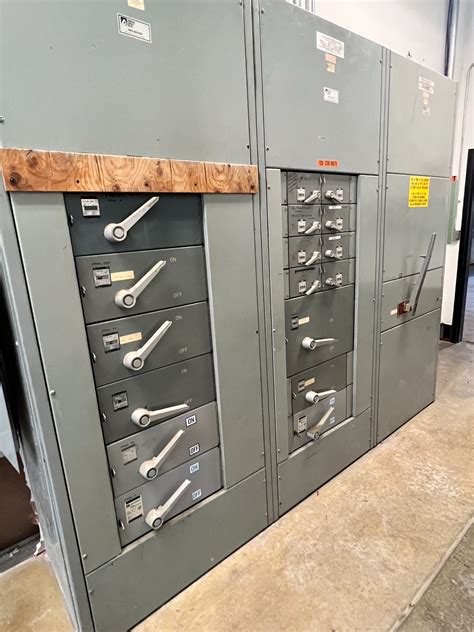

- Low Voltage Switchgear: Operates at voltages up to 1,000 volts and is commonly used in residential, commercial, and light industrial settings.
- Medium Voltage Switchgear: Operates at voltages ranging from 1,000 to 35,000 volts and is used in industrial facilities, power distribution systems, and substations.
- High Voltage Switchgear: Operates at voltages above 35,000 volts and is used in power transmission systems and large industrial complexes.
Components of Switchgear
Switchgear systems consist of various components that work together to ensure the safe and efficient operation of electrical systems. The key components include:
- Circuit Breakers: Devices that can interrupt the flow of electrical current in case of a fault or overload.
- Disconnect Switches: Used to isolate electrical equipment from the power source for maintenance or repair.
- Fuses: Protective devices that break the circuit when the current exceeds a safe level.
- Relays: Devices that detect faults and send signals to circuit breakers to interrupt the current.
- Busbars: Conductors that distribute electrical power within the switchgear.
- Instrument Transformers: Devices that measure voltage and current for monitoring and control purposes.
Applications of Switchgear
Switchgear is used in a wide range of applications to ensure the safe and reliable operation of electrical systems. Some of the key applications include:
- Power Generation: Switchgear is used in power plants to control and protect generators and transformers.
- Power Transmission: High voltage switchgear is used in transmission systems to manage the flow of electrical power over long distances.
- Power Distribution: Medium and low voltage switchgear is used in distribution systems to deliver electrical power to residential, commercial, and industrial customers.
- Industrial Facilities: Switchgear is used in factories and plants to control and protect electrical equipment and machinery.
- Commercial Buildings: Low voltage switchgear is used in offices, shopping centers, and other commercial buildings to manage electrical power distribution.
Switchgear Insulation Mediums
Switchgear can be classified based on the insulation medium used to isolate electrical components. The common insulation mediums include:
- Air Insulated Switchgear (AIS): Uses air as the insulating medium. It is cost-effective and suitable for indoor applications but requires more space.
- Gas Insulated Switchgear (GIS): Uses sulfur hexafluoride (SF6) gas as the insulating medium. It is compact, reliable, and suitable for both indoor and outdoor applications.
- Vacuum Insulated Switchgear (VIS): Uses vacuum as the insulating medium. It is compact, reliable, and suitable for medium voltage applications.
Switchgear Standards and Regulations
Switchgear must comply with various standards and regulations to ensure safety and reliability. Some of the key standards include:
- IEC 62271: International standard for high-voltage switchgear and controlgear.
- ANSI/IEEE C37: American National Standard for switchgear, control, and protective devices.
- NEMA SG 1: National Electrical Manufacturers Association standard for metal-enclosed switchgear.
Switchgear Maintenance
Maintaining switchgear is crucial for ensuring its reliable operation and extending its lifespan. Regular maintenance tasks include:
- Inspecting for physical damage or wear.
- Checking for loose connections or corrosion.
- Testing circuit breakers and relays for proper operation.
- Cleaning and lubricating moving parts.
- Verifying insulation resistance and dielectric strength.
🔧 Note: Always follow the manufacturer's guidelines for maintenance procedures and safety precautions.
Switchgear Safety
Working with switchgear involves handling high voltages and currents, which can be hazardous. Safety measures include:
- Using personal protective equipment (PPE) such as insulated gloves, face shields, and safety glasses.
- Following lockout/tagout procedures to ensure equipment is de-energized before maintenance.
- Conducting regular safety training for personnel.
- Ensuring proper grounding and bonding of equipment.
⚠️ Note: Never attempt to work on live switchgear without proper training and authorization.
Future Trends in Switchgear
The switchgear industry is evolving with advancements in technology and increasing demand for smart grids and renewable energy integration. Some of the future trends include:
- Digital Switchgear: Integration of digital technologies for remote monitoring, control, and diagnostics.
- Smart Grid Compatibility: Designing switchgear to support smart grid functionalities such as demand response and distributed generation.
- Sustainable Insulation Mediums: Developing eco-friendly insulation mediums to replace SF6 gas.
- Modular Designs: Creating modular switchgear solutions for flexible and scalable applications.
Switchgear is a vital component in electrical systems, ensuring the safe and reliable operation of power generation, transmission, and distribution. Understanding switchgear what is, its types, components, and applications is essential for anyone involved in electrical engineering and maintenance. By adhering to standards, conducting regular maintenance, and following safety protocols, switchgear can operate efficiently and safely, supporting the growing demands of modern electrical systems.
