Swamee Jain Equation

The Swamee Jain Equation is a fundamental tool in the field of fluid dynamics, particularly in the context of pipe flow analysis. This equation is widely used to determine the head loss in pipes due to friction, which is crucial for designing and optimizing piping systems. Understanding the Swamee Jain Equation and its applications can significantly enhance the efficiency and reliability of fluid transport systems.

Table of Contents

Understanding the Swamee Jain Equation

The Swamee Jain Equation is an empirical formula derived from the Darcy-Weisbach equation, which is used to calculate the head loss in a pipe due to friction. The equation is named after its developers, P. K. Swamee and A. K. Jain, who introduced it as a simplified and more accurate alternative to the Colebrook equation. The Swamee Jain Equation is particularly useful for its ease of use and accuracy in practical engineering applications.

The general form of the Swamee Jain Equation is:

f = 0.25 [log10(ε/(3.7D) + 5.74/Re^0.9)]^-2

Where:

f is the Darcy friction factor
ε is the roughness of the pipe
D is the diameter of the pipe
Re is the Reynolds number

Applications of the Swamee Jain Equation

The Swamee Jain Equation has a wide range of applications in various engineering fields. Some of the key areas where this equation is commonly used include:

Civil Engineering: In the design of water supply and drainage systems, the Swamee Jain Equation helps in calculating the head loss and ensuring efficient flow.
Mechanical Engineering: For the design of piping systems in industrial plants, the equation aids in determining the appropriate pipe sizes and materials to minimize friction losses.
Chemical Engineering: In the design of process piping systems, the Swamee Jain Equation is used to optimize flow rates and reduce energy consumption.
Environmental Engineering: For the design of wastewater treatment facilities, the equation helps in managing flow rates and ensuring proper treatment processes.

Calculating Head Loss Using the Swamee Jain Equation

To calculate the head loss in a pipe using the Swamee Jain Equation, follow these steps:

Determine the Reynolds number (Re) using the formula: Re = (ρVD)/μ, where ρ is the density of the fluid, V is the velocity of the fluid, D is the diameter of the pipe, and μ is the dynamic viscosity of the fluid.
Calculate the relative roughness of the pipe (ε/D), where ε is the roughness of the pipe and D is the diameter of the pipe.
Use the Swamee Jain Equation to find the Darcy friction factor (f).
Calculate the head loss (h_f) using the formula: h_f = f(L/D)(V²/2g), where L is the length of the pipe, D is the diameter of the pipe, V is the velocity of the fluid, and g is the acceleration due to gravity.

📝 Note: Ensure that all units are consistent when performing calculations to avoid errors.

Example Calculation

Let's consider an example to illustrate the use of the Swamee Jain Equation. Suppose we have a pipe with the following characteristics:

Diameter (D) = 0.3 meters
Length (L) = 100 meters
Roughness (ε) = 0.0002 meters
Fluid velocity (V) = 2 meters/second
Fluid density (ρ) = 1000 kg/m³
Dynamic viscosity (μ) = 0.001 Pa·s

First, calculate the Reynolds number:

Re = (ρVD)/μ = (1000 * 2 * 0.3) / 0.001 = 600,000

Next, calculate the relative roughness:

ε/D = 0.0002 / 0.3 = 0.00067

Now, use the Swamee Jain Equation to find the Darcy friction factor:

f = 0.25 [log10(0.00067/(3.7*0.3) + 5.74/600,000^0.9)]^-2 ≈ 0.015

Finally, calculate the head loss:

h_f = f(L/D)(V²/2g) = 0.015(100/0.3)(2^2/(2*9.81)) ≈ 1.02 meters

Comparing the Swamee Jain Equation with Other Methods

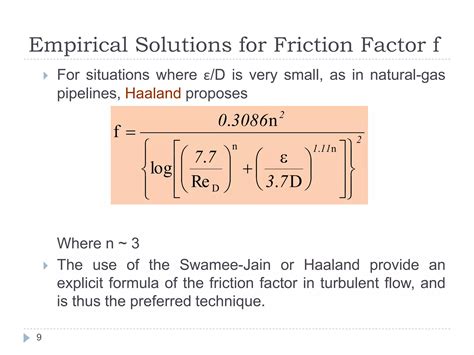

The Swamee Jain Equation is often compared with other methods for calculating head loss, such as the Colebrook equation and the Hazen-Williams equation. Each method has its advantages and limitations:

Method	Advantages	Limitations
Swamee Jain Equation	Simple and accurate for a wide range of Reynolds numbers	May require iterative solutions for very high Reynolds numbers
Colebrook Equation	Highly accurate for all flow regimes	Requires iterative solutions, which can be time-consuming
Hazen-Williams Equation	Simple and easy to use	Less accurate for high Reynolds numbers and rough pipes

The choice of method depends on the specific requirements of the application and the desired level of accuracy.

Importance of Accurate Head Loss Calculation

Accurate calculation of head loss is crucial for several reasons:

Efficiency: Properly designed piping systems minimize energy losses, leading to more efficient operation and reduced operational costs.
Reliability: Accurate head loss calculations ensure that the piping system can handle the required flow rates without failures or excessive wear and tear.
Safety: Correct design parameters help prevent issues such as water hammer, which can cause damage to the piping system and pose safety risks.
Cost Savings: Optimized piping systems reduce the need for frequent maintenance and repairs, leading to significant cost savings over the lifespan of the system.

Factors Affecting Head Loss

Several factors influence the head loss in a piping system. Understanding these factors is essential for accurate calculations and effective design:

Pipe Diameter: Smaller diameter pipes result in higher head losses due to increased friction.
Pipe Length: Longer pipes increase the head loss due to the extended length over which friction acts.
Pipe Roughness: Rougher pipes have higher head losses compared to smoother pipes.
Fluid Velocity: Higher fluid velocities lead to increased head losses due to greater friction.
Fluid Properties: The density and viscosity of the fluid affect the Reynolds number, which in turn influences the head loss.

By carefully considering these factors, engineers can design piping systems that minimize head loss and maximize efficiency.

Advanced Considerations

In addition to the basic calculations, there are advanced considerations that can further enhance the accuracy and reliability of head loss calculations:

Transient Flow: In systems where flow rates vary over time, transient flow analysis may be necessary to account for dynamic changes in head loss.
Multiple Pipes: For systems with multiple pipes in series or parallel, the head loss calculations become more complex and may require iterative solutions.
Non-Newtonian Fluids: For fluids that do not follow Newtonian behavior, such as slurries or polymers, specialized equations and models may be needed to accurately calculate head loss.

These advanced considerations require a deeper understanding of fluid dynamics and may involve more sophisticated computational tools and techniques.

In conclusion, the Swamee Jain Equation is a powerful tool for calculating head loss in piping systems. Its simplicity and accuracy make it a valuable resource for engineers in various fields. By understanding and applying this equation, engineers can design more efficient, reliable, and cost-effective piping systems. The importance of accurate head loss calculations cannot be overstated, as it directly impacts the performance and longevity of fluid transport systems. Whether in civil, mechanical, chemical, or environmental engineering, the Swamee Jain Equation provides a robust foundation for optimizing pipe flow analysis.
