Understanding the intricacies of a vehicle's suspension system is crucial for anyone interested in automotive maintenance or performance tuning. The suspension system diagram is a vital tool that provides a visual representation of the various components and their interactions. This diagram helps in diagnosing issues, performing repairs, and optimizing the performance of a vehicle's suspension.
Understanding the Suspension System
The suspension system of a vehicle is designed to absorb shocks and vibrations from the road, providing a smooth and comfortable ride. It also plays a critical role in maintaining vehicle stability and handling. The primary components of a suspension system include:
- Springs
- Shock absorbers
- Control arms
- Bushings
- Ball joints
- Steering knuckles
- Sway bars
Components of the Suspension System
Each component of the suspension system has a specific function that contributes to the overall performance and safety of the vehicle. Let’s delve into the details of each component:
Springs
Springs are responsible for supporting the weight of the vehicle and absorbing the impact from road irregularities. There are different types of springs, including:
- Coil springs
- Leaf springs
- Torsion bars
Coil springs are commonly used in modern vehicles due to their ability to provide a smooth ride and handle various road conditions effectively.
Shock Absorbers
Shock absorbers work in conjunction with the springs to control the movement of the suspension. They help to dampen the oscillations caused by the springs, ensuring that the vehicle remains stable and the tires maintain contact with the road. Shock absorbers are essential for maintaining control and safety, especially during cornering and braking.
Control Arms
Control arms, also known as A-arms, connect the steering knuckles to the vehicle’s frame. They allow the wheels to move up and down while maintaining proper alignment. Control arms are crucial for steering and handling, as they help to control the movement of the wheels and ensure that they remain in the correct position.
Bushings
Bushings are flexible mounts that reduce vibration and noise by absorbing shocks and allowing for slight movements between suspension components. They are typically made of rubber or polyurethane and are designed to wear out over time, requiring periodic replacement.
Ball Joints
Ball joints are spherical bearings that allow the suspension components to pivot and move freely. They are essential for steering and suspension movement, enabling the wheels to turn and absorb shocks. Ball joints are subject to wear and tear and should be inspected regularly to ensure they are in good condition.
Steering Knuckles
Steering knuckles, also known as spindle assemblies, connect the wheel hub to the suspension system. They house the wheel bearings and allow the wheel to rotate freely. Steering knuckles are critical for steering and suspension performance, as they support the weight of the vehicle and enable the wheels to turn.
Sway Bars
Sway bars, also known as anti-roll bars, help to reduce body roll during cornering. They connect the left and right sides of the suspension, distributing the weight evenly and improving stability. Sway bars are particularly important for vehicles with a higher center of gravity, such as SUVs and trucks.
Reading a Suspension System Diagram
A suspension system diagram is a detailed illustration that shows the layout and connections of all the suspension components. Understanding how to read this diagram is essential for diagnosing and repairing suspension issues. Here are some key points to consider when reading a suspension system diagram:
Identifying Components
Begin by identifying the various components in the diagram. Each component should be clearly labeled, making it easier to understand its location and function. Familiarize yourself with the symbols and abbreviations used in the diagram to ensure accurate identification.
Understanding Connections
Pay close attention to the connections between components. The diagram will show how each part is linked to others, providing insight into the overall structure and function of the suspension system. Look for lines or arrows that indicate the flow of movement and the interaction between components.
Analyzing Movement
Analyze how the suspension components move in relation to each other. The diagram should illustrate the range of motion for each part, helping you understand how the system absorbs shocks and maintains stability. This information is crucial for diagnosing issues related to handling and ride comfort.
Common Issues and Solutions
Use the suspension system diagram to identify common issues and their potential solutions. For example, if you notice excessive wear on a particular component, the diagram can help you locate and replace it. Understanding the layout of the suspension system can also help you perform routine maintenance tasks more efficiently.
Maintaining Your Suspension System
Regular maintenance of the suspension system is essential for ensuring the safety and performance of your vehicle. Here are some key maintenance tasks to keep in mind:
Inspecting Components
Regularly inspect the suspension components for signs of wear and tear. Look for cracks, leaks, or excessive play in the joints and bushings. Replace any worn-out parts promptly to prevent further damage and ensure optimal performance.
Checking Alignment
Proper wheel alignment is crucial for maintaining the integrity of the suspension system. Misaligned wheels can cause uneven tire wear, poor handling, and reduced fuel efficiency. Have your vehicle’s alignment checked regularly, especially after hitting potholes or curbs.
Replacing Fluids
Some suspension systems, particularly those with hydraulic components, require regular fluid changes. Check your vehicle’s manual for recommendations on fluid types and replacement intervals. Using the correct fluid and maintaining proper levels will help extend the life of your suspension components.
Performing Routine Maintenance
Perform routine maintenance tasks such as lubricating moving parts, tightening bolts, and inspecting for leaks. Regular maintenance will help prevent major issues and ensure that your suspension system operates smoothly.
🔧 Note: Always refer to your vehicle's manual for specific maintenance guidelines and recommendations.
Common Suspension Issues and Troubleshooting
Even with regular maintenance, suspension issues can arise. Here are some common problems and troubleshooting tips:
Excessive Noise
If you hear unusual noises such as clunking, squeaking, or rattling, it could indicate a problem with the suspension system. Check for loose or worn-out components, such as bushings or ball joints, and replace them as needed.
Uneven Tire Wear
Uneven tire wear can be a sign of suspension issues, such as misaligned wheels or worn-out components. Inspect the suspension system for any signs of wear and have the alignment checked to ensure proper tire wear.
Poor Handling
If your vehicle feels unstable or difficult to control, it could be due to suspension problems. Check for worn-out shock absorbers, control arms, or other components that may be affecting handling. Replace any damaged parts and have the suspension system inspected by a professional if necessary.
Vibration
Excessive vibration can be caused by worn-out suspension components, such as bushings or ball joints. Inspect the suspension system for any signs of wear and replace the affected parts to restore smooth operation.
🛠️ Note: If you are unsure about diagnosing or repairing suspension issues, consult a professional mechanic to ensure the safety and performance of your vehicle.
Upgrading Your Suspension System
For those looking to enhance the performance of their vehicle, upgrading the suspension system can provide significant benefits. Here are some popular upgrades to consider:
Performance Shocks and Struts
Upgrading to performance shocks and struts can improve handling, stability, and ride comfort. These components are designed to provide better control and responsiveness, making them ideal for high-performance vehicles or those used for off-road adventures.
Coilovers
Coilovers are adjustable suspension systems that combine a shock absorber and a coil spring into a single unit. They offer customizable ride height, damping, and spring rates, allowing you to fine-tune the suspension to your specific needs and preferences.
Sway Bars
Installing larger or adjustable sway bars can reduce body roll during cornering, improving stability and handling. This upgrade is particularly beneficial for vehicles with a higher center of gravity, such as SUVs and trucks.
Control Arms and Bushings
Upgrading to performance control arms and bushings can enhance handling and durability. These components are designed to provide better support and reduce flex, ensuring that the suspension system operates smoothly and efficiently.
Air Suspension
Air suspension systems use air springs instead of traditional coil or leaf springs. They offer adjustable ride height and load-leveling capabilities, making them ideal for vehicles that carry heavy loads or require frequent adjustments.
🚘 Note: Always ensure that any upgrades are compatible with your vehicle and follow the manufacturer's guidelines for installation and maintenance.

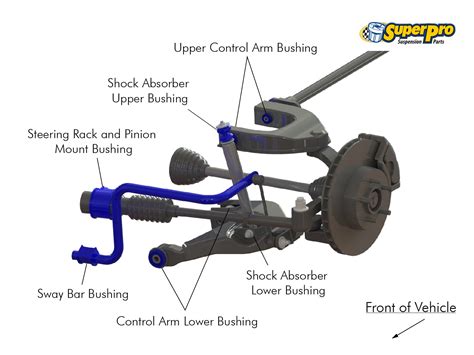

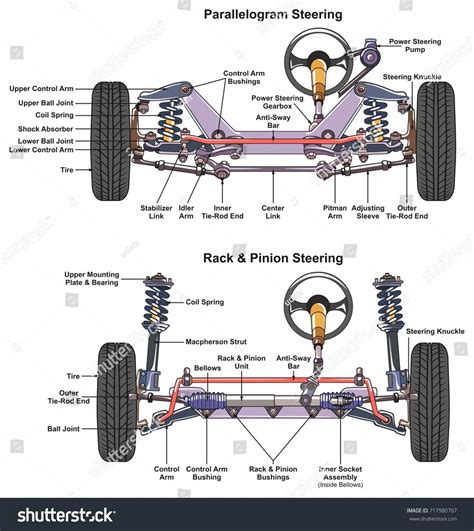

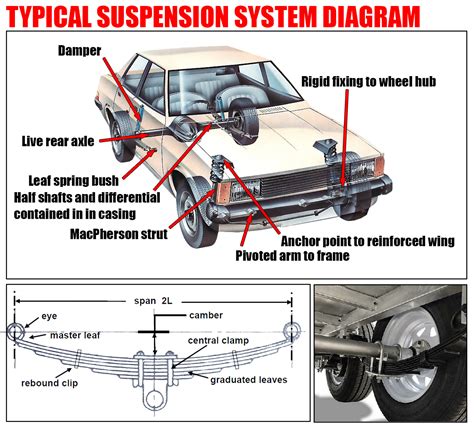

Suspension System Diagram: A Visual Guide
To better understand the layout and connections of the suspension system, refer to a detailed suspension system diagram. This visual guide provides a clear representation of the various components and their interactions, making it easier to diagnose and repair issues. Below is an example of a suspension system diagram for a typical vehicle:
This diagram illustrates the key components of the suspension system, including the springs, shock absorbers, control arms, bushings, ball joints, steering knuckles, and sway bars. By studying this diagram, you can gain a better understanding of how each component contributes to the overall performance and stability of the vehicle.
When using a suspension system diagram, pay close attention to the following details:
- The location and orientation of each component
- The connections and interactions between components
- The range of motion and movement for each part
- The symbols and abbreviations used in the diagram
Conclusion
Understanding the suspension system and its components is essential for maintaining the performance and safety of your vehicle. A suspension system diagram serves as a valuable tool for diagnosing issues, performing repairs, and optimizing the suspension’s performance. By familiarizing yourself with the various components and their functions, you can ensure that your vehicle remains in top condition, providing a smooth and comfortable ride for years to come. Regular maintenance, timely repairs, and strategic upgrades can significantly enhance the longevity and performance of your suspension system, making it a crucial aspect of vehicle care.
