In today's technologically advanced world, the reliability of electrical systems is paramount. Whether in residential, commercial, or industrial settings, the protection of electrical equipment from power surges is crucial. This is where Surge Protection Devices (SPDs) come into play. SPDs are designed to safeguard electrical and electronic devices from voltage spikes, which can cause significant damage and lead to costly repairs or replacements.
Understanding Power Surges
Power surges are sudden increases in voltage that can occur due to various reasons, including lightning strikes, power outages, and switching of heavy electrical loads. These surges can last for a fraction of a second but are powerful enough to damage sensitive electronic components. Understanding the causes and effects of power surges is the first step in appreciating the importance of Surge Protection Devices.
Types of Surge Protection Devices
There are several types of Surge Protection Devices, each designed to handle different levels of voltage and current. The most common types include:
- Plug-in SPDs: These are the most basic and commonly used SPDs. They are designed to be plugged into standard electrical outlets and protect individual devices connected to them.
- Power Strip SPDs: Similar to plug-in SPDs, these are integrated into power strips and offer protection for multiple devices connected to the strip.

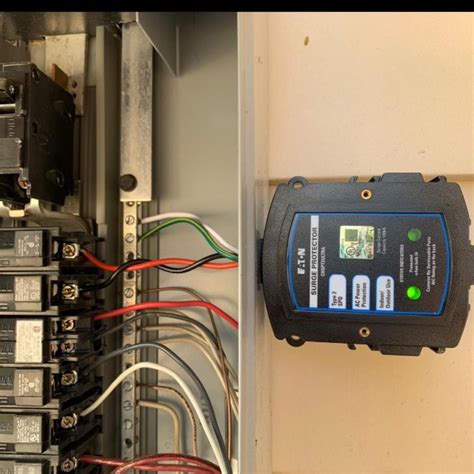

- Whole-House SPDs: These devices are installed at the main electrical panel and provide protection for the entire electrical system of a building. They are ideal for protecting all appliances and devices from power surges.
- Point-of-Use SPDs: These are installed near sensitive electronic equipment, such as computers and home theater systems, to provide localized protection.
How Surge Protection Devices Work
Surge Protection Devices operate by diverting excess voltage away from sensitive electronic components. They typically consist of a metal oxide varistor (MOV), which acts as a voltage-dependent resistor. When the voltage exceeds a safe level, the MOV conducts the excess current to the ground, protecting the connected devices. Some advanced SPDs also include additional components like gas discharge tubes and silicon avalanche diodes for enhanced protection.
Key Features to Look for in Surge Protection Devices
When selecting a Surge Protection Device, it is essential to consider several key features to ensure optimal protection:
- Joule Rating: This indicates the amount of energy the SPD can absorb before it fails. A higher joule rating means better protection.
- Clamping Voltage: This is the voltage level at which the SPD begins to conduct excess current to the ground. A lower clamping voltage provides better protection.
- Response Time: The time it takes for the SPD to react to a power surge. Faster response times offer better protection.
- Indicators: Some SPDs come with indicators that show whether the device is functioning correctly or if it needs to be replaced.
Installation and Maintenance of Surge Protection Devices
Proper installation and regular maintenance of Surge Protection Devices are crucial for their effective operation. Here are some steps to ensure optimal performance:
- Choose the Right Location: Install SPDs as close as possible to the devices they are protecting. For whole-house SPDs, install them at the main electrical panel.
- Follow Manufacturer Instructions: Always follow the manufacturer’s guidelines for installation to ensure proper functioning.
- Regular Inspection: Periodically inspect SPDs for any signs of damage or wear. Replace them if they show signs of failure.
- Testing: Some SPDs come with built-in testing features. Use these to ensure the device is working correctly.
🔧 Note: Always turn off the power supply before installing or replacing Surge Protection Devices to avoid electrical hazards.
Benefits of Using Surge Protection Devices
The benefits of using Surge Protection Devices are numerous and include:
- Protection of Electronic Devices: SPDs safeguard sensitive electronic equipment from power surges, extending their lifespan.
- Cost Savings: By preventing damage to electronic devices, SPDs help avoid costly repairs and replacements.
- Peace of Mind: Knowing that your electrical system is protected from power surges provides peace of mind, especially during thunderstorms and other adverse weather conditions.
- Enhanced Safety: SPDs help prevent electrical fires and other hazards caused by power surges.
Common Misconceptions About Surge Protection Devices
There are several misconceptions about Surge Protection Devices that need to be addressed:
- SPDs are only for lightning protection: While SPDs do protect against lightning strikes, they also safeguard against other causes of power surges, such as power outages and switching of heavy loads.
- All SPDs are the same: Different types of SPDs offer varying levels of protection. It is essential to choose the right type based on your specific needs.
- SPDs last forever: SPDs have a limited lifespan and need to be replaced periodically. Regular inspection and testing are crucial.
Choosing the Right Surge Protection Device for Your Needs
Selecting the right Surge Protection Device depends on several factors, including the type of devices you need to protect, the level of protection required, and your budget. Here is a guide to help you make an informed decision:
| Type of SPD | Best For | Key Features |
|---|---|---|
| Plug-in SPDs | Individual devices | Easy to install, affordable, limited protection |
| Power Strip SPDs | Multiple devices | Convenient, protects multiple devices, limited protection |
| Whole-House SPDs | Entire electrical system | Comprehensive protection, professional installation required |
| Point-of-Use SPDs | Sensitive electronic equipment | Localized protection, ideal for high-value devices |
When choosing an SPD, consider the joule rating, clamping voltage, and response time to ensure you get the best protection for your needs.
Case Studies: Real-World Applications of Surge Protection Devices
To illustrate the effectiveness of Surge Protection Devices, let’s look at a few real-world case studies:
- Residential Protection: A homeowner in a lightning-prone area installed a whole-house SPD. During a severe thunderstorm, the SPD protected all electronic devices, including computers, televisions, and appliances, from damage.
- Commercial Protection: A small business installed point-of-use SPDs near their servers and networking equipment. During a power outage, the SPDs prevented data loss and equipment damage, ensuring business continuity.
- Industrial Protection: A manufacturing plant installed SPDs at critical points in their electrical system. The SPDs protected sensitive machinery and control systems from power surges, reducing downtime and maintenance costs.
These case studies highlight the importance of Surge Protection Devices in various settings and the benefits they provide in terms of protection and cost savings.
In conclusion, Surge Protection Devices are essential for safeguarding electrical and electronic devices from power surges. By understanding the types, features, and benefits of SPDs, you can make an informed decision to protect your valuable equipment. Regular inspection and maintenance of SPDs ensure their effective operation, providing peace of mind and enhanced safety. Whether in residential, commercial, or industrial settings, investing in Surge Protection Devices is a wise choice for long-term protection and cost savings.
