Super Heterodyne Am Receiver

In the realm of radio communication, the Super Heterodyne AM Receiver stands as a cornerstone technology, revolutionizing how we receive and process AM (Amplitude Modulation) signals. This sophisticated receiver design has been pivotal in enhancing the clarity and reliability of radio transmissions, making it an essential component in various applications, from broadcasting to telecommunications.

Table of Contents

Understanding the Super Heterodyne AM Receiver

The Super Heterodyne AM Receiver operates on the principle of heterodyning, a process that converts a received radio frequency (RF) signal to a fixed intermediate frequency (IF) for easier amplification and demodulation. This conversion is achieved through a series of stages, each playing a crucial role in the overall performance of the receiver.

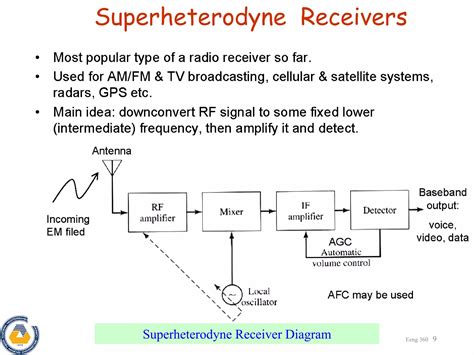

Key Components of a Super Heterodyne AM Receiver

The Super Heterodyne AM Receiver comprises several key components, each contributing to its functionality and efficiency. These components include:

Antenna: Captures the incoming RF signal from the air.
RF Amplifier: Amplifies the weak RF signal received by the antenna.
Mixer: Combines the RF signal with a locally generated oscillator signal to produce an IF signal.
Local Oscillator: Generates a stable frequency that is mixed with the RF signal.
IF Amplifier: Amplifies the IF signal to a level suitable for demodulation.
Detector: Extracts the original audio signal from the IF signal.
Audio Amplifier: Amplifies the audio signal to a level suitable for driving speakers.

How a Super Heterodyne AM Receiver Works

The operation of a Super Heterodyne AM Receiver can be broken down into several stages:

Signal Reception: The antenna captures the incoming RF signal, which is then passed to the RF amplifier.
RF Amplification: The RF amplifier boosts the weak signal to a level that can be effectively processed by the mixer.
Mixing: The mixer combines the amplified RF signal with a signal from the local oscillator. This process, known as heterodyning, produces an IF signal.
IF Amplification: The IF amplifier further amplifies the IF signal, enhancing its strength for demodulation.
Detection: The detector extracts the original audio signal from the IF signal. This is typically done using an envelope detector for AM signals.
Audio Amplification: The audio amplifier boosts the extracted audio signal to a level suitable for driving speakers or headphones.

This multi-stage process ensures that the received signal is amplified, filtered, and demodulated with high fidelity, resulting in clear and reliable audio output.

Advantages of the Super Heterodyne AM Receiver

The Super Heterodyne AM Receiver offers several advantages that make it a preferred choice for many applications:

Selectivity: The use of an IF stage allows for better selectivity, enabling the receiver to distinguish between closely spaced signals.
Sensitivity: The multi-stage amplification process enhances the receiver's sensitivity, allowing it to detect weak signals effectively.
Stability: The local oscillator provides a stable reference frequency, ensuring consistent performance.
Flexibility: The design can be easily adapted to different frequency bands by adjusting the local oscillator and IF stages.

Applications of the Super Heterodyne AM Receiver

The Super Heterodyne AM Receiver finds applications in various fields, including:

Broadcasting: Used in AM radio stations for receiving and transmitting audio signals.
Telecommunications: Employed in communication systems for reliable signal reception.
Aviation: Utilized in aviation communication for clear and reliable voice transmission.
Marine Communication: Essential for marine radio systems, ensuring safe and effective communication at sea.

Design Considerations for a Super Heterodyne AM Receiver

When designing a Super Heterodyne AM Receiver, several factors must be considered to ensure optimal performance:

Frequency Selection: Choosing the appropriate IF frequency is crucial for balancing selectivity and image rejection.
Component Quality: High-quality components, such as filters and amplifiers, are essential for maintaining signal integrity.
Stability: Ensuring the stability of the local oscillator is vital for consistent performance.
Noise Reduction: Implementing effective noise reduction techniques to minimize interference and improve signal quality.

By carefully considering these factors, designers can create a Super Heterodyne AM Receiver that delivers exceptional performance and reliability.

🔍 Note: The choice of IF frequency is critical as it affects the receiver's ability to reject unwanted signals and improve overall performance.

Challenges and Solutions in Super Heterodyne AM Receiver Design

Designing a Super Heterodyne AM Receiver presents several challenges that must be addressed to achieve optimal performance. Some of the key challenges include:

Image Rejection: Ensuring that the receiver can effectively reject image frequencies, which are unwanted signals that can interfere with the desired signal.
Selectivity: Achieving high selectivity to distinguish between closely spaced signals without compromising sensitivity.
Stability: Maintaining the stability of the local oscillator to ensure consistent performance over time.
Noise: Minimizing noise and interference to improve signal quality.

To overcome these challenges, designers employ various techniques and components, such as:

High-Quality Filters: Using high-quality filters to reject image frequencies and improve selectivity.
Stable Oscillators: Implementing stable local oscillators to ensure consistent performance.
Noise Reduction Circuits: Incorporating noise reduction circuits to minimize interference and improve signal quality.

By addressing these challenges, designers can create a Super Heterodyne AM Receiver that delivers reliable and high-quality performance.

🛠️ Note: Regular maintenance and calibration of the receiver components are essential to ensure long-term stability and performance.

Future Trends in Super Heterodyne AM Receiver Technology

The field of Super Heterodyne AM Receiver technology is continually evolving, driven by advancements in semiconductor technology and digital signal processing. Some of the future trends in this area include:

Digital Signal Processing (DSP): Incorporating DSP techniques to enhance signal processing capabilities and improve performance.
Software-Defined Radio (SDR): Utilizing SDR technology to create flexible and reprogrammable receivers that can adapt to different frequency bands and modulation schemes.
Miniaturization: Developing compact and efficient receiver designs that can be integrated into smaller devices, such as smartphones and wearable technology.
Energy Efficiency: Focusing on energy-efficient designs to reduce power consumption and extend battery life in portable devices.

These trends are poised to revolutionize the way Super Heterodyne AM Receivers are designed and used, opening up new possibilities for communication and broadcasting.

As the technology continues to advance, the Super Heterodyne AM Receiver will remain a vital component in the world of radio communication, ensuring clear and reliable signal reception for a wide range of applications.

In conclusion, the Super Heterodyne AM Receiver is a sophisticated and essential technology in the field of radio communication. Its multi-stage design, incorporating key components such as the RF amplifier, mixer, and local oscillator, ensures high selectivity, sensitivity, and stability. The receiver’s applications span broadcasting, telecommunications, aviation, and marine communication, making it a versatile and indispensable tool. By addressing design challenges and embracing future trends, the Super Heterodyne AM Receiver will continue to evolve, providing reliable and high-quality performance in an ever-changing technological landscape.
