Understanding the Sulfur Hexafluoride Lewis Structure is crucial for anyone delving into the world of chemistry, particularly in the study of molecular geometry and bonding. Sulfur hexafluoride (SF6) is a colorless, odorless, and non-toxic gas that has significant applications in various industries, including electrical insulation and plasma etching. This blog post will guide you through the process of drawing the Lewis structure of SF6, explaining its molecular geometry, and discussing its properties and applications.
What is Sulfur Hexafluoride?
Sulfur hexafluoride is a compound consisting of one sulfur atom bonded to six fluorine atoms. It is a hypervalent molecule, meaning it has more than eight valence electrons around the central sulfur atom. This unique characteristic makes it an interesting subject for studying molecular structures and bonding theories.
Drawing the Sulfur Hexafluoride Lewis Structure
To draw the Sulfur Hexafluoride Lewis Structure, follow these steps:
- Identify the central atom: In SF6, sulfur (S) is the central atom.
- Count the total number of valence electrons: Sulfur has 6 valence electrons, and each fluorine atom has 7 valence electrons. Therefore, the total number of valence electrons is 6 (from S) + 6 × 7 (from F) = 48.
- Place the valence electrons around the central atom: Start by placing one pair of electrons between the sulfur atom and each fluorine atom to form single bonds. This uses 12 electrons (2 electrons per bond × 6 bonds).
- Distribute the remaining electrons: After forming the single bonds, you have 36 electrons left (48 total - 12 used for bonds). These electrons are distributed as lone pairs around the fluorine atoms, giving each fluorine atom 3 lone pairs (6 electrons).
Here is the Sulfur Hexafluoride Lewis Structure:
Molecular Geometry of Sulfur Hexafluoride

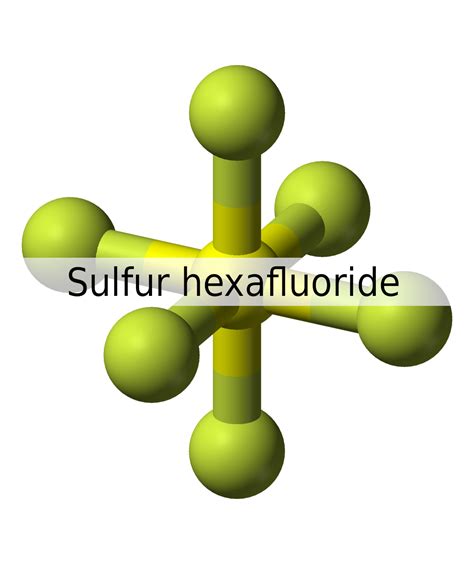

The molecular geometry of SF6 is octahedral. This means that the six fluorine atoms are arranged at the vertices of an octahedron, with the sulfur atom at the center. The bond angles between the fluorine atoms are 90 degrees, and the molecule has no dipole moment due to its symmetrical structure.
Properties of Sulfur Hexafluoride
Sulfur hexafluoride has several unique properties that make it valuable in various applications:
- Chemical Stability: SF6 is extremely stable and does not react with most substances, making it ideal for use in environments where chemical reactivity is a concern.
- Electrical Insulation: It is an excellent electrical insulator, which is why it is used in high-voltage equipment such as circuit breakers and transformers.
- Density: SF6 is denser than air, which means it can be used to displace air in applications where a heavier gas is needed.
- Non-Toxicity: Despite its density, SF6 is non-toxic and does not pose a health risk in typical concentrations.
Applications of Sulfur Hexafluoride
Sulfur hexafluoride has a wide range of applications across different industries:
- Electrical Insulation: As mentioned earlier, SF6 is widely used in high-voltage electrical equipment due to its excellent insulating properties.
- Plasma Etching: In the semiconductor industry, SF6 is used in plasma etching processes to remove material from silicon wafers.
- Medical Imaging: SF6 can be used as a contrast agent in ultrasound imaging due to its ability to form microbubbles.
- Insulation in Windows: SF6 is used as a filling gas in double-glazed windows to improve insulation properties.
Environmental Considerations
While sulfur hexafluoride has many beneficial applications, it is also a potent greenhouse gas. Its global warming potential is approximately 23,500 times greater than that of carbon dioxide over a 100-year period. This means that even small leaks of SF6 can have a significant impact on the environment. Therefore, it is crucial to handle and dispose of SF6 responsibly to minimize its environmental impact.
🌱 Note: Proper handling and disposal procedures should be followed to prevent the release of SF6 into the atmosphere.
Comparing SF6 with Other Sulfur Compounds
To better understand the Sulfur Hexafluoride Lewis Structure, it can be helpful to compare it with other sulfur compounds. Here is a table comparing SF6 with sulfur dioxide (SO2) and sulfur trioxide (SO3):
| Compound | Lewis Structure | Molecular Geometry | Bond Angles |
|---|---|---|---|
| Sulfur Hexafluoride (SF6) | |
Octahedral | 90 degrees |
| Sulfur Dioxide (SO2) |  |
Bent | 119 degrees |
| Sulfur Trioxide (SO3) |  |
Trigonal Planar | 120 degrees |
Each of these compounds has a unique Lewis Structure and molecular geometry, which affects their chemical properties and applications.
Understanding the Sulfur Hexafluoride Lewis Structure provides valuable insights into the bonding and geometry of this important compound. By examining its properties, applications, and environmental considerations, we can appreciate the significance of SF6 in various industries while also recognizing the need for responsible handling to mitigate its environmental impact. This knowledge is essential for chemists, engineers, and anyone interested in the fascinating world of molecular structures and bonding.
