Subnet Mask Cheat Sheet

Understanding subnet masks is crucial for anyone working in networking. A subnet mask helps divide a network into smaller, more manageable subnets, enabling efficient routing and communication. This guide will serve as your ultimate Subnet Mask Cheat Sheet, providing a comprehensive overview of subnet masks, their importance, and how to use them effectively.

What is a Subnet Mask?

A subnet mask is a number that distinguishes the network and host portions of an IP address. It is used to determine the size of the network and the number of available hosts within that network. Subnet masks are essential for routing traffic within a network and ensuring that data packets are delivered to the correct destination.

Understanding IP Addresses and Subnet Masks

An IP address is a unique identifier assigned to each device on a network. It consists of 32 bits, divided into four octets, each containing 8 bits. For example, an IP address might look like 192.168.1.1. A subnet mask, on the other hand, is a 32-bit number that masks the IP address to determine the network and host portions.

For instance, consider the IP address 192.168.1.1 with a subnet mask of 255.255.255.0. The subnet mask 255.255.255.0 indicates that the first 24 bits (192.168.1) are the network portion, and the remaining 8 bits (.1) are the host portion.

Types of Subnet Masks

Subnet masks can be classified into two main types: default subnet masks and custom subnet masks.

Default Subnet Masks

Default subnet masks are predefined and are used when no custom subnetting is required. The most common default subnet masks are:

• Class A: 255.0.0.0 (or /8)
• Class B: 255.255.0.0 (or /16)
• Class C: 255.255.255.0 (or /24)

Custom Subnet Masks

Custom subnet masks are created to divide a network into smaller subnets. This is useful for optimizing network performance and security. Custom subnet masks can be any combination of 1s and 0s, but they must follow specific rules to ensure proper network functionality.

How to Calculate Subnet Masks

Calculating subnet masks involves determining the number of bits required for the network and host portions. Here are the steps to calculate a subnet mask:

1. Determine the number of hosts needed in the network.
2. Calculate the number of bits required for the host portion. This is done by finding the smallest power of 2 that is greater than or equal to the number of hosts.
3. Subtract the number of host bits from 32 to get the number of network bits.
4. Create the subnet mask by setting the network bits to 1 and the host bits to 0.

For example, if you need a network with 100 hosts, you would calculate the number of host bits as follows:

• 100 hosts require 7 bits (2^7 = 128, which is the smallest power of 2 greater than 100).
• Subtract 7 from 32 to get 25 network bits.
• The subnet mask would be 255.255.255.128 (or /25).

💡 Note: Remember that the subnet mask must always start with a series of 1s followed by a series of 0s. For example, 255.255.255.128 is valid, but 255.255.254.0 is not.

Common Subnet Masks

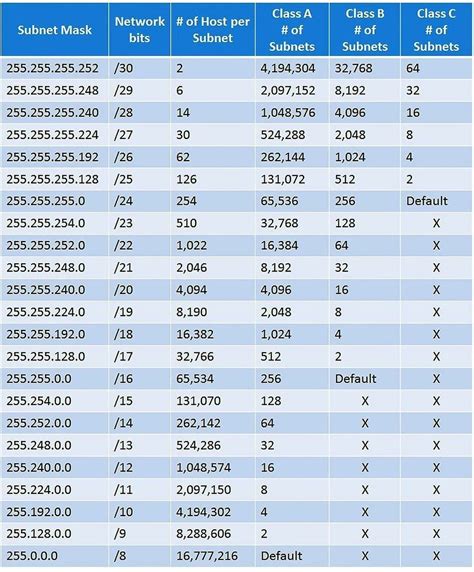

Here is a table of common subnet masks and their corresponding network and host bit counts:

Subnetting Examples

Let’s go through a few examples to illustrate how subnet masks are used in practice.

Example 1: Class C Network

Consider a Class C network with the IP address 192.168.1.0 and a subnet mask of 255.255.255.0. This network has 256 possible IP addresses, but only 254 are usable (excluding the network and broadcast addresses).

Example 2: Custom Subnet Mask

Suppose you need to create a network with 50 hosts. You would use a subnet mask of 255.255.255.192 (/26), which provides 62 usable IP addresses. The network address would be 192.168.1.0, and the broadcast address would be 192.168.1.63.

Example 3: Multiple Subnets

If you have a Class B network (172.16.0.0/16) and need to create four subnets, each with 62 hosts, you would use a subnet mask of 255.255.255.192 (/26). This would give you four subnets, each with 62 usable IP addresses.

💡 Note: When creating multiple subnets, ensure that each subnet has a unique network address and that there is no overlap between subnets.

Subnet Mask Cheat Sheet

Here is a quick reference Subnet Mask Cheat Sheet to help you remember the key points:

• Default Subnet Masks:
  • Class A: 255.0.0.0 (/8)
  • Class B: 255.255.0.0 (/16)
  • Class C: 255.255.255.0 (/24)
• Custom Subnet Masks: Created based on the number of hosts needed.
• Calculating Subnet Masks:
  • Determine the number of hosts.
  • Calculate the number of host bits.
  • Subtract host bits from 32 to get network bits.
  • Create the subnet mask.
• Common Subnet Masks:
  • 255.255.255.128 (/25)
  • 255.255.255.192 (/26)
  • 255.255.255.224 (/27)
  • 255.255.255.240 (/28)
  • 255.255.255.248 (/29)
  • 255.255.255.252 (/30)

This cheat sheet should serve as a handy reference for quickly determining the appropriate subnet mask for your network needs.

Subnet masks are a fundamental concept in networking, and understanding them is essential for anyone working in IT. By following the guidelines and examples provided in this Subnet Mask Cheat Sheet, you can effectively manage your network and ensure optimal performance and security.

In summary, subnet masks are crucial for dividing networks into smaller, more manageable subnets. They help determine the network and host portions of an IP address, enabling efficient routing and communication. Whether you are using default subnet masks or creating custom ones, understanding how to calculate and apply subnet masks is essential for network administration. By following the steps and examples outlined in this guide, you can effectively manage your network and ensure that data packets are delivered to the correct destination.
