Structure Of Mtbe

Methyl tert-butyl ether (MTBE) is a chemical compound widely used as a fuel additive to raise the octane rating of gasoline. Understanding the structure of MTBE is crucial for comprehending its properties, applications, and environmental impacts. This blog post delves into the molecular structure, chemical properties, synthesis, applications, and environmental considerations of MTBE.

Table of Contents

Molecular Structure of MTBE

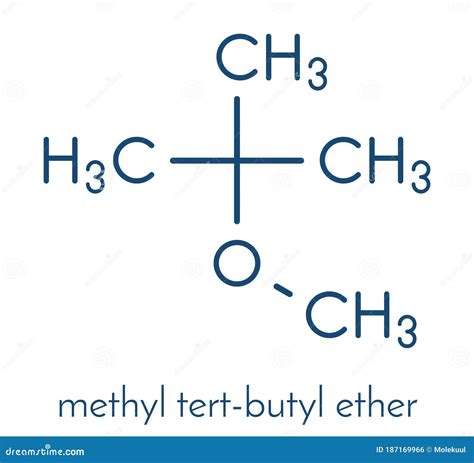

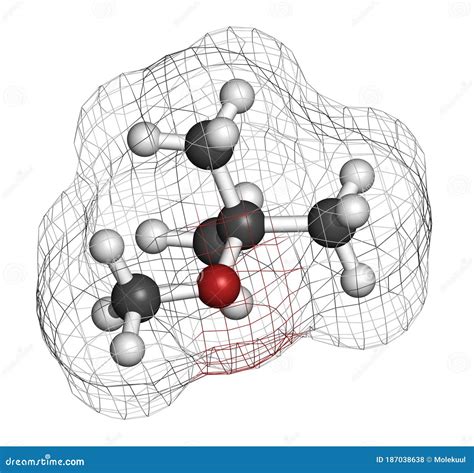

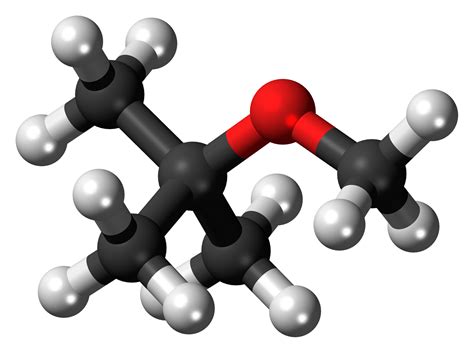

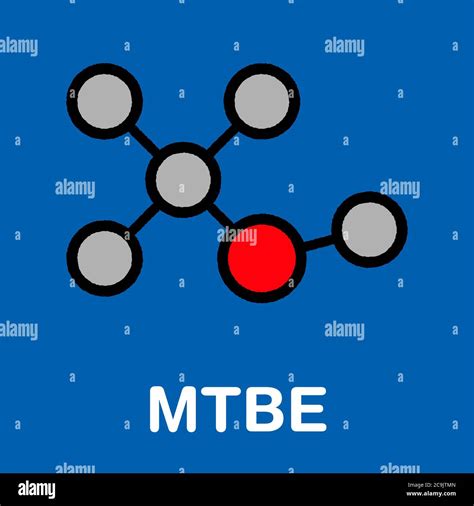

The molecular formula of MTBE is C5H12O. It consists of a methyl group (CH3) attached to a tert-butyl group ((CH3)3C), which is connected to an oxygen atom. The structure of MTBE can be visualized as follows:

The tert-butyl group is a branched hydrocarbon with three methyl groups attached to a central carbon atom. The oxygen atom forms an ether linkage between the methyl group and the tert-butyl group. This unique structure contributes to MTBE's stability and solubility in hydrocarbons, making it an effective fuel additive.

Chemical Properties of MTBE

MTBE exhibits several key chemical properties that make it suitable for use in gasoline:

Molecular Weight: 88.15 g/mol
Boiling Point: 55.2°C (131.4°F)
Melting Point: -108.6°C (-163.5°F)
Density: 0.74 g/mL at 20°C
Solubility: Soluble in water (43 g/L at 20°C), miscible with most organic solvents
Flash Point: -28°C (-18°F)

These properties make MTBE a valuable component in gasoline blends, enhancing performance and reducing emissions.

Synthesis of MTBE

The synthesis of MTBE involves the reaction of isobutylene with methanol in the presence of an acid catalyst. The process can be summarized as follows:

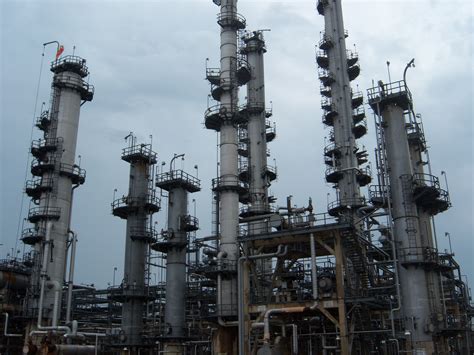

The reaction is typically carried out in a continuous process using a fixed-bed reactor. The catalyst, usually a strong acid such as sulfuric acid or a solid acid catalyst like Amberlyst, facilitates the reaction. The reaction conditions, including temperature and pressure, are carefully controlled to optimize yield and selectivity.

The overall reaction can be represented as:

$MTBE Synthesis Reaction$

This reaction is exothermic, meaning it releases heat. Proper heat management is essential to maintain the reaction's efficiency and safety.

Applications of MTBE

MTBE is primarily used as a fuel additive in gasoline. Its key applications include:

Octane Enhancement: MTBE increases the octane rating of gasoline, which improves engine performance and reduces knocking.
Oxygenate: As an oxygenate, MTBE helps reduce carbon monoxide and hydrocarbon emissions by promoting more complete combustion of fuel.
Replacement for Lead: MTBE was widely used as a replacement for lead compounds in gasoline, which were phased out due to environmental and health concerns.

Despite its benefits, the use of MTBE has declined in recent years due to environmental concerns, particularly its potential to contaminate groundwater. Alternative oxygenates, such as ethanol, are now more commonly used.

Environmental Considerations

While MTBE has been beneficial in improving fuel quality, its environmental impacts have raised significant concerns. Key environmental considerations include:

Groundwater Contamination: MTBE is highly soluble in water and can easily leach into groundwater from leaking underground storage tanks and spills. This contamination can affect drinking water supplies and pose health risks.
Health Effects: Exposure to MTBE can cause various health issues, including respiratory problems, headaches, and dizziness. Long-term exposure may have more severe effects, although research is ongoing.
Regulatory Measures: Due to these concerns, many regions have implemented regulations to limit or ban the use of MTBE. For example, the United States has phased out MTBE in favor of ethanol as a fuel additive.

To mitigate these risks, it is essential to handle MTBE with care, ensure proper storage and disposal, and adhere to regulatory guidelines. Alternative fuel additives that are less environmentally harmful are being explored and implemented.

📝 Note: Always follow local regulations and best practices for handling and disposing of MTBE to minimize environmental impact.

Alternative Fuel Additives

Given the environmental concerns surrounding MTBE, alternative fuel additives are being developed and adopted. Some of the most prominent alternatives include:

Ethanol: Ethanol is a renewable fuel produced from biomass, such as corn or sugarcane. It is widely used as an oxygenate in gasoline and has a lower environmental impact compared to MTBE.
Ethyl Tert-Butyl Ether (ETBE): ETBE is similar to MTBE but is produced from ethanol and isobutylene. It has a lower solubility in water, reducing the risk of groundwater contamination.
Tert-Amyl Methyl Ether (TAME): TAME is another ether-based fuel additive that is less soluble in water than MTBE, making it a safer alternative in terms of groundwater contamination.

These alternatives offer similar performance benefits as MTBE while addressing environmental concerns. The transition to these additives is ongoing, driven by regulatory pressures and consumer demand for cleaner fuels.

Future of MTBE

The future of MTBE is uncertain, given the growing environmental awareness and regulatory pressures. However, MTBE's unique properties and historical significance in the fuel industry mean it may still have niche applications. Research and development efforts are focused on improving the environmental profile of MTBE and exploring new uses for this versatile compound.

Innovations in catalysis and reaction engineering could lead to more efficient and environmentally friendly synthesis methods for MTBE. Additionally, advancements in fuel technology may uncover new applications for MTBE, ensuring its continued relevance in the energy sector.

As the energy landscape evolves, the role of MTBE will likely change. Its legacy as a pioneering fuel additive will be remembered, and its future will be shaped by ongoing research and regulatory developments.

In summary, MTBE’s structure of MTBE and chemical properties have made it a valuable component in gasoline, enhancing performance and reducing emissions. However, environmental concerns have led to a decline in its use, prompting the development of alternative fuel additives. The future of MTBE will depend on continued research and regulatory adaptations, ensuring its role in the energy sector remains relevant and sustainable.
