Stitch Weld Symbol

Welding is a critical process in various industries, ensuring the structural integrity and durability of metal components. Among the different welding techniques, the stitch weld symbol plays a pivotal role in creating strong and reliable joints. This symbol is essential for welders and engineers to understand the specific requirements and techniques needed for stitch welding. This post delves into the intricacies of the stitch weld symbol, its applications, and best practices for achieving optimal results.

Table of Contents

Understanding the Stitch Weld Symbol

The stitch weld symbol is a graphical representation used in welding diagrams to indicate the type and placement of stitch welds. Stitch welding involves creating a series of short welds along a joint, rather than a continuous weld. This technique is particularly useful for reducing distortion and residual stresses in the welded components.

Stitch welding is often used in applications where continuous welding would cause excessive heat buildup, leading to warping or cracking. By breaking the weld into shorter segments, the heat is distributed more evenly, minimizing these issues. The stitch weld symbol helps welders understand the exact pattern and spacing of these welds, ensuring consistency and quality.

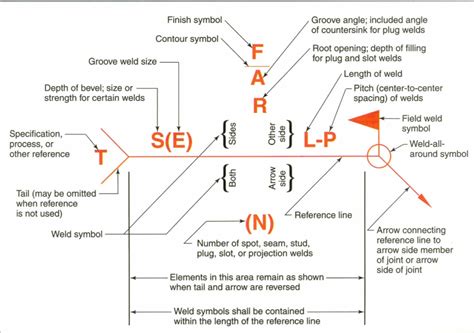

Components of the Stitch Weld Symbol

The stitch weld symbol consists of several key components that provide detailed instructions for the welding process. These components include:

Arrow: Points to the location of the weld on the joint.
Reference Line: A horizontal line that intersects the arrow, indicating the direction of the weld.
Tail: Contains additional information such as the weld size, type, and any special instructions.
Stitch Pattern: A series of short lines or dashes that represent the individual stitch welds.

Each of these components plays a crucial role in conveying the necessary information for the welding process. The arrow and reference line help locate the weld, while the tail provides specific details about the weld's characteristics. The stitch pattern indicates the spacing and length of each weld segment.

Applications of Stitch Welding

Stitch welding is employed in a wide range of industries due to its ability to minimize distortion and residual stresses. Some of the most common applications include:

Automotive Industry: Used in the fabrication of vehicle frames and body panels to prevent warping.
Aerospace Industry: Essential for welding aircraft components where precision and strength are critical.
Construction Industry: Utilized in the assembly of structural steel components to ensure stability and durability.
Manufacturing Industry: Applied in the production of machinery and equipment to maintain dimensional accuracy.

In each of these industries, the stitch weld symbol ensures that welders follow the correct procedures, resulting in high-quality welds that meet the required specifications.

Best Practices for Stitch Welding

To achieve optimal results with stitch welding, it is essential to follow best practices that ensure the welds are strong, consistent, and free from defects. Some key best practices include:

Proper Preparation: Clean the surfaces to be welded to remove any contaminants that could affect the weld quality.
Correct Spacing: Maintain consistent spacing between stitch welds to distribute heat evenly and prevent distortion.
Appropriate Weld Size: Use the correct weld size as specified in the stitch weld symbol to ensure the welds are strong enough to support the load.
Controlled Heat Input: Monitor the heat input during welding to avoid excessive heat buildup, which can cause warping or cracking.
Post-Weld Treatment: Apply post-weld treatments such as stress relief or peening to enhance the weld's strength and durability.

By adhering to these best practices, welders can produce high-quality stitch welds that meet the required standards and specifications.

Common Mistakes to Avoid

While stitch welding offers numerous benefits, there are common mistakes that can compromise the quality of the welds. Some of these mistakes include:

Inconsistent Spacing: Varying the spacing between stitch welds can lead to uneven heat distribution and increased distortion.
Incorrect Weld Size: Using a weld size that is too small or too large can result in weak welds or excessive heat buildup.
Excessive Heat Input: Applying too much heat during welding can cause warping, cracking, or other defects.
Inadequate Surface Preparation: Failing to clean the surfaces properly can lead to contaminants that weaken the weld.

To avoid these mistakes, it is crucial to follow the instructions provided in the stitch weld symbol and adhere to best practices for stitch welding.

🔍 Note: Always refer to the specific welding procedures and standards applicable to your industry to ensure compliance and quality.

Interpreting the Stitch Weld Symbol

Interpreting the stitch weld symbol accurately is essential for achieving the desired weld quality. The symbol provides detailed information about the weld's characteristics, including:

Weld Type: Indicates whether the weld is a fillet, groove, or other type.
Weld Size: Specifies the size of the weld, typically measured in millimeters or inches.

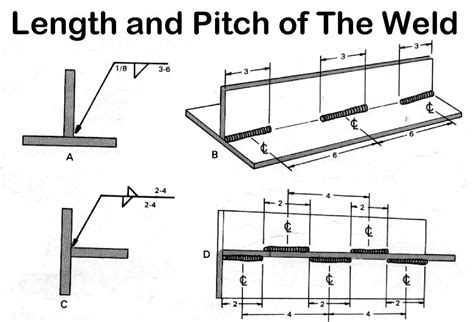

Stitch Pattern: Shows the spacing and length of each stitch weld.
Special Instructions: Includes any additional instructions or requirements for the welding process.

By carefully interpreting the stitch weld symbol, welders can ensure that they follow the correct procedures and achieve the desired weld quality.

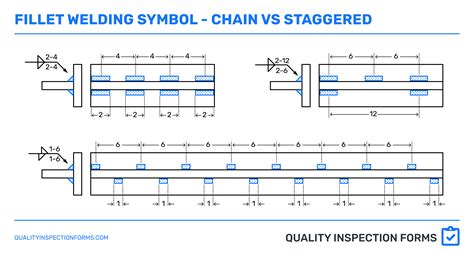

Example of a Stitch Weld Symbol

Below is an example of a stitch weld symbol and its components:

Component	Description
Arrow	Points to the location of the weld on the joint.
Reference Line	A horizontal line that intersects the arrow, indicating the direction of the weld.
Tail	Contains additional information such as the weld size, type, and any special instructions.
Stitch Pattern	A series of short lines or dashes that represent the individual stitch welds.

This example illustrates how the stitch weld symbol provides comprehensive instructions for the welding process, ensuring consistency and quality.

Conclusion

The stitch weld symbol is a vital tool in the welding industry, providing clear and detailed instructions for creating strong and reliable stitch welds. By understanding the components of the symbol and following best practices, welders can achieve optimal results and ensure the structural integrity of welded components. Whether in the automotive, aerospace, construction, or manufacturing industries, the stitch weld symbol plays a crucial role in maintaining high-quality welding standards. By adhering to the guidelines and avoiding common mistakes, welders can produce welds that meet the required specifications and contribute to the overall success of their projects.
