Steered Molecular Dynamics

Molecular dynamics simulations have revolutionized the way scientists understand and predict the behavior of molecular systems. Among the various techniques employed in this field, Steered Molecular Dynamics (SMD) stands out as a powerful tool for investigating the mechanical properties and dynamic responses of biomolecules. This method allows researchers to apply external forces to molecular systems, simulating processes such as protein unfolding, ligand binding, and mechanical stress responses.

Table of Contents

Understanding Steered Molecular Dynamics

Steered Molecular Dynamics (SMD) is a computational technique used to study the mechanical properties of biomolecules by applying external forces. This method involves pulling a molecule or a part of a molecule along a predefined direction, typically using a harmonic potential. The forces applied can mimic experimental conditions, such as those encountered in atomic force microscopy (AFM) or optical tweezers.

SMD simulations provide valuable insights into the mechanical stability of proteins, the energy landscapes of conformational changes, and the kinetics of molecular interactions. By analyzing the response of a molecule to an applied force, researchers can gain a deeper understanding of its structural and functional properties.

Applications of Steered Molecular Dynamics

Steered Molecular Dynamics has a wide range of applications in various fields of molecular biology and biophysics. Some of the key areas where SMD is extensively used include:

Protein Unfolding: SMD simulations can reveal the unfolding pathways of proteins, providing insights into their mechanical stability and the forces required to disrupt their native structures.
Ligand Binding: By applying forces to ligands, SMD can help understand the binding kinetics and the energy barriers involved in ligand-receptor interactions.
Mechanical Stress Responses: SMD can simulate the response of biomolecules to mechanical stress, such as those experienced in cellular environments or during mechanical deformation.
Drug Design: SMD simulations can aid in the design of drugs by providing information on the mechanical properties of target molecules and the forces involved in their interactions with potential drugs.

Setting Up a Steered Molecular Dynamics Simulation

To perform a Steered Molecular Dynamics simulation, several steps need to be followed. These steps include system preparation, force application, and data analysis. Below is a detailed guide to setting up an SMD simulation:

System Preparation

The first step in setting up an SMD simulation is to prepare the molecular system. This involves:

Building the molecular structure using tools like PyMOL or VMD.
Solvating the system with water molecules and adding ions to neutralize the charge.
Minimizing the energy of the system to remove any steric clashes.
Equilibrating the system to ensure it reaches a stable state before applying the external force.

Force Application

Once the system is prepared, the next step is to apply the external force. This is typically done using a harmonic potential, which pulls a specific atom or group of atoms along a predefined direction. The force constant and pulling velocity are crucial parameters that need to be carefully chosen to ensure the simulation accurately represents the experimental conditions.

Here is an example of how to set up the force application in a simulation script:

# Example script for applying a harmonic potential in GROMACS
pull = yes
pull_ncoords = 1
pull_group1_name = Protein
pull_group2_name = Ligand
pull_coord1_type = umbrella
pull_coord1_geometry = distance
pull_coord1_groups = 1 2
pull_coord1_start = yes
pull_coord1_rate = 0.001 0.001 0.001
pull_coord1_k = 1000
pull_coord1_vec = 0 0 1

📝 Note: The parameters in the script, such as pull_coord1_rate and pull_coord1_k, should be adjusted based on the specific requirements of the simulation.

Data Analysis

After running the SMD simulation, the collected data needs to be analyzed to extract meaningful insights. Key parameters to analyze include:

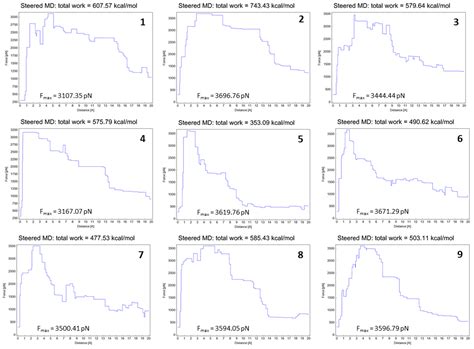

Force-Extension Curves: These curves provide information on the mechanical response of the molecule to the applied force.
Energy Landscapes: Analyzing the energy changes during the simulation can reveal the energy barriers and stable states of the molecule.
Structural Changes: Monitoring the structural changes during the simulation can help understand the unfolding pathways or conformational changes.

Tools like VMD, PyMOL, and GROMACS can be used for visualizing and analyzing the simulation data. These tools provide various plugins and scripts to facilitate the analysis of SMD simulations.

Challenges and Limitations

While Steered Molecular Dynamics is a powerful technique, it also comes with several challenges and limitations. Some of the key challenges include:

Force Field Accuracy: The accuracy of SMD simulations depends heavily on the force field used. Inaccuracies in the force field can lead to incorrect predictions of mechanical properties.
Computational Cost: SMD simulations can be computationally expensive, especially for large molecular systems or long simulation times.
Parameter Selection: Choosing the appropriate parameters for the harmonic potential, such as the force constant and pulling velocity, can be challenging and may require extensive testing.

Despite these challenges, Steered Molecular Dynamics remains a valuable tool for studying the mechanical properties of biomolecules. Advances in computational power and force field development continue to improve the accuracy and efficiency of SMD simulations.

Future Directions

The field of Steered Molecular Dynamics is continually evolving, with new methods and techniques being developed to enhance its capabilities. Some of the future directions in SMD research include:

Enhanced Sampling Techniques: Combining SMD with enhanced sampling techniques, such as metadynamics or umbrella sampling, can improve the exploration of conformational space and provide more accurate energy landscapes.
Machine Learning Integration: Integrating machine learning algorithms with SMD simulations can help in predicting mechanical properties and optimizing simulation parameters.
Multi-Scale Simulations: Developing multi-scale simulation approaches that combine SMD with coarse-grained or quantum mechanical methods can provide a more comprehensive understanding of molecular behavior.

These advancements will further expand the applications of Steered Molecular Dynamics and enhance its role in molecular biology and biophysics research.

In conclusion, Steered Molecular Dynamics is a powerful technique for investigating the mechanical properties and dynamic responses of biomolecules. By applying external forces to molecular systems, SMD simulations provide valuable insights into protein unfolding, ligand binding, and mechanical stress responses. Despite the challenges and limitations, the continued development of SMD methods and techniques holds great promise for future research in this field. As computational power and force field accuracy improve, Steered Molecular Dynamics will remain a crucial tool for understanding the complex behavior of molecular systems.
