Understanding the intricacies of starter solenoid wiring is crucial for anyone working with automotive electrical systems. Whether you are a seasoned mechanic or a DIY enthusiast, knowing how to properly wire a starter solenoid can save you time and prevent costly mistakes. This guide will walk you through the essentials of starter solenoid wiring, from understanding the components to step-by-step installation and troubleshooting.
Understanding the Starter Solenoid
The starter solenoid is a critical component in the starting system of a vehicle. It acts as an electromagnetic switch that engages the starter motor to turn the engine over. The solenoid receives a signal from the ignition switch and, when activated, allows a large current to flow from the battery to the starter motor. This process is essential for starting the engine.
There are two main types of starter solenoids:
- Inline Solenoid: This type is mounted directly on the starter motor. It is compact and often used in smaller vehicles.

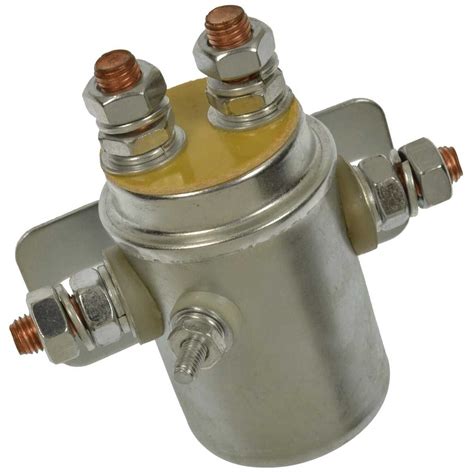

- Remote Solenoid: This type is mounted separately from the starter motor, usually near the battery or firewall. It is commonly used in larger vehicles or those with more complex electrical systems.
Components of the Starter Solenoid Wiring System
Before diving into the wiring process, it's important to understand the key components involved:
- Battery: Provides the electrical power needed to activate the solenoid and starter motor.
- Ignition Switch: Sends the signal to the solenoid to engage the starter motor.
- Starter Motor: The motor that turns the engine over to start it.

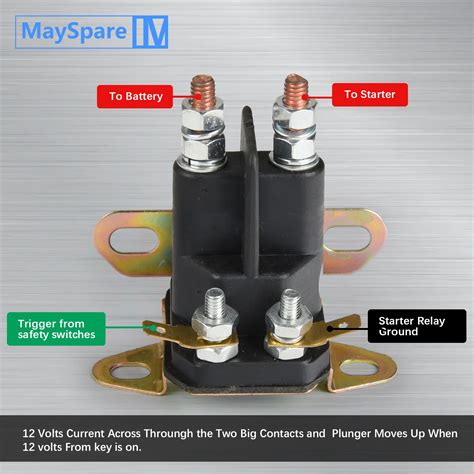

- Solenoid: The electromagnetic switch that connects the battery to the starter motor.
- Wiring: The electrical connections that link all the components together.
Wiring a Starter Solenoid
Wiring a starter solenoid involves connecting the various components in a specific sequence. Below is a step-by-step guide to help you through the process.
Step 1: Gather Your Tools and Materials
Before you begin, make sure you have the following tools and materials:
- Screwdriver (flathead and Phillips)
- Wire cutters
- Wire strippers
- Multimeter
- Electrical tape
- Wire connectors (ring terminals, spade terminals)
- Starter solenoid
- Wiring diagram (specific to your vehicle)
Step 2: Locate the Starter Solenoid
Identify the location of the starter solenoid in your vehicle. It is usually mounted on the starter motor or near the battery. Refer to your vehicle's wiring diagram for the exact location.
Step 3: Disconnect the Battery
For safety, always disconnect the negative terminal of the battery before working on the electrical system. This prevents any accidental short circuits that could cause damage or injury.
Step 4: Remove the Old Solenoid (if applicable)
If you are replacing an old solenoid, carefully remove it by disconnecting the wires and unscrewing it from its mounting point. Take note of the wire connections for reference.
Step 5: Connect the Battery Wire
Connect the thick wire from the battery to the large terminal on the solenoid. This wire provides the high current needed to activate the starter motor. Secure the connection with a ring terminal and tighten the bolt.
Step 6: Connect the Ignition Wire
Connect the wire from the ignition switch to the smaller terminal on the solenoid. This wire carries the signal to activate the solenoid. Use a spade terminal to secure the connection.
Step 7: Connect the Starter Motor Wire
Connect the wire from the solenoid to the starter motor. This wire carries the high current from the solenoid to the starter motor. Use a ring terminal to secure the connection.
Step 8: Test the Connections
Before reconnecting the battery, use a multimeter to test the connections. Ensure that there is continuity between the battery wire and the starter motor wire when the ignition switch is turned on. This confirms that the solenoid is functioning correctly.
🔧 Note: Always double-check your connections to ensure they are secure and free of corrosion. Loose or corroded connections can cause starting problems.
Step 9: Reconnect the Battery
Reconnect the negative terminal of the battery. Start the vehicle to ensure that the new solenoid is working correctly. If the engine starts smoothly, the wiring is complete.
Troubleshooting Starter Solenoid Issues
Even with proper wiring, issues can arise with the starter solenoid. Here are some common problems and their solutions:
Problem 1: No Clicking Sound When Turning the Ignition
If you turn the ignition key and hear no clicking sound, it could indicate a problem with the solenoid or the wiring. Check the following:
- Ensure the battery is fully charged.
- Check for loose or corroded connections.
- Test the solenoid with a multimeter to ensure it is receiving the signal from the ignition switch.
Problem 2: Clicking Sound but No Start
If you hear a clicking sound but the engine does not start, it could indicate a problem with the starter motor or the solenoid. Check the following:
- Ensure the solenoid is properly connected to the starter motor.
- Test the starter motor with a multimeter to ensure it is receiving power.
- Check for any obstructions in the starter motor that could prevent it from engaging.
Problem 3: Intermittent Starting Issues
If the vehicle starts intermittently, it could indicate a loose or corroded connection. Check the following:
- Inspect all wire connections for tightness and corrosion.
- Clean any corroded connections with a wire brush.
- Replace any damaged wires or connectors.
🔧 Note: Regular maintenance of the starter solenoid and wiring can prevent many common issues. Inspect the system periodically for any signs of wear or damage.
Common Wiring Diagrams
While the exact wiring diagram will vary depending on the make and model of your vehicle, the basic principles remain the same. Below is a general wiring diagram for a typical starter solenoid system. Note that the actual wire colors and connections may differ.
| Component | Wire Color | Connection Point |
|---|---|---|
| Battery | Red (Positive) | Large Terminal on Solenoid |
| Ignition Switch | Yellow (Signal) | Small Terminal on Solenoid |
| Starter Motor | Black (Ground) | Starter Motor Terminal |
Refer to your vehicle's specific wiring diagram for the exact wire colors and connections. Always follow the manufacturer's guidelines for the best results.
Safety Precautions
Working with electrical systems can be dangerous if proper precautions are not taken. Always follow these safety guidelines:
- Disconnect the battery before working on the electrical system.
- Wear safety glasses to protect your eyes from debris.
- Use insulated tools to prevent electrical shocks.
- Work in a well-ventilated area to avoid inhaling harmful fumes.
- Follow all manufacturer's instructions and guidelines.
🔧 Note: If you are unsure about any part of the process, consult a professional mechanic. Safety should always be your top priority.
Understanding starter solenoid wiring is essential for anyone working with automotive electrical systems. By following the steps outlined in this guide, you can ensure that your starter solenoid is properly wired and functioning correctly. Regular maintenance and troubleshooting can help prevent common issues and keep your vehicle running smoothly. Always prioritize safety and follow manufacturer’s guidelines for the best results.
