Standard Outlet Height

Understanding the Standard Outlet Height is crucial for anyone involved in electrical work, interior design, or home improvement projects. This measurement ensures that electrical outlets are conveniently located and easily accessible, enhancing both the functionality and aesthetics of a space. This guide will delve into the importance of Standard Outlet Height, the regulations governing it, and practical tips for installation.

Table of Contents

Understanding Standard Outlet Height

The Standard Outlet Height refers to the vertical distance from the floor to the center of an electrical outlet. This measurement is standardized to ensure consistency and safety across different buildings and rooms. The standard height is typically set at 12 inches (30.5 cm) from the floor to the bottom of the outlet box. This placement is designed to accommodate various devices and appliances, making them easily reachable without the need for excessive bending or stretching.

Regulations and Standards

Several regulations and standards govern the Standard Outlet Height to ensure safety and accessibility. These guidelines are set by organizations such as the National Electrical Code (NEC) in the United States and similar bodies in other countries. Here are some key points to consider:

National Electrical Code (NEC): The NEC provides guidelines for electrical installations, including the placement of outlets. According to the NEC, outlets should be installed at a height that is convenient for use and safe for occupants. The standard height of 12 inches from the floor to the bottom of the outlet box is widely accepted.

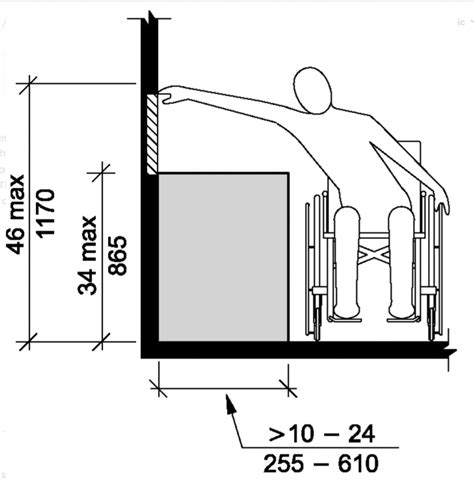

Accessibility Standards: For buildings that need to comply with accessibility standards, such as those required by the Americans with Disabilities Act (ADA), outlets may need to be installed at a lower height to accommodate individuals with disabilities. In such cases, the outlets should be placed no higher than 48 inches from the floor.
Local Building Codes: It is essential to check local building codes, as they may have specific requirements for Standard Outlet Height. These codes can vary by region and may include additional guidelines for outlet placement in residential, commercial, and industrial settings.

Importance of Correct Outlet Height

Properly installing outlets at the Standard Outlet Height offers several benefits:

Safety: Correct placement ensures that outlets are not easily accessible to young children, reducing the risk of electrical accidents. It also minimizes the risk of tripping hazards from cords and cables.
Convenience: Outlets placed at the standard height are easy to reach for most adults, making it convenient to plug in and unplug devices without straining.
Aesthetics: Consistent outlet placement enhances the overall appearance of a room, contributing to a neat and organized look.
Functionality: Properly placed outlets ensure that devices and appliances can be used effectively, without the need for extension cords or power strips that can clutter the space.

Installing Outlets at the Standard Height

Installing outlets at the Standard Outlet Height involves several steps. Here is a detailed guide to help you through the process:

Tools and Materials Needed

Electrical outlet
Outlet box
Screwdriver
Wire stripper
Level
Stud finder
Drill
Hammer
Fish tape (if needed)

Step-by-Step Installation

1. Plan the Layout: Determine the locations where you need outlets based on the room's layout and the devices that will be used. Ensure that outlets are spaced appropriately to avoid overloading circuits.

2. Locate Studs: Use a stud finder to locate the studs behind the drywall. This will help you determine the best places to install the outlet boxes.

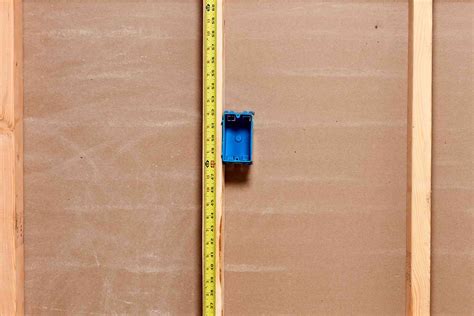

3. Mark the Outlet Height: Use a level to mark the Standard Outlet Height on the wall. The standard height is 12 inches from the floor to the bottom of the outlet box.

4. Install the Outlet Box: Cut a hole in the drywall at the marked location using a drywall saw or a utility knife. Insert the outlet box into the hole and secure it to the stud with screws.

5. Run the Wires: If you are installing new wiring, use fish tape to run the wires from the outlet box to the electrical panel. Ensure that the wires are properly insulated and secured.

6. Connect the Wires: Strip the insulation from the wires and connect them to the outlet according to the manufacturer's instructions. Typically, the black wire connects to the brass screw, the white wire connects to the silver screw, and the green or bare wire connects to the green grounding screw.

7. Secure the Outlet: Place the outlet into the box and secure it with screws. Ensure that the outlet is flush with the wall and that the wires are not pinched or damaged.

8. Test the Outlet: Turn on the power and test the outlet with a voltage tester or a plug-in device to ensure it is functioning correctly.

🔧 Note: Always turn off the power at the electrical panel before working on electrical outlets. Use a non-contact voltage tester to ensure the power is off before proceeding with the installation.

Special Considerations

While the Standard Outlet Height is generally 12 inches from the floor, there are situations where adjustments may be necessary:

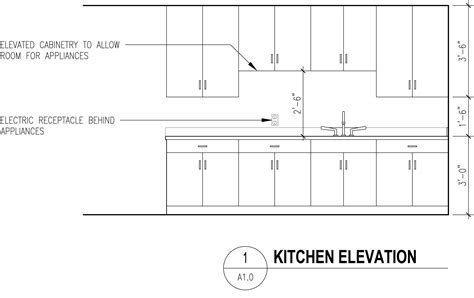

Kitchens and Bathrooms: In kitchens and bathrooms, outlets may need to be installed at a higher height to comply with safety regulations and to avoid contact with water sources.
Basements and Garages: In basements and garages, outlets may be installed at a lower height to accommodate workbenches or other equipment.
Accessibility Needs: For individuals with disabilities, outlets may need to be installed at a lower height to ensure they are easily accessible.

Common Mistakes to Avoid

When installing outlets at the Standard Outlet Height, it is essential to avoid common mistakes that can compromise safety and functionality:

Incorrect Height: Ensure that the outlet is installed at the correct height to avoid inconvenience and potential safety hazards.
Improper Wiring: Follow the manufacturer's instructions for wiring the outlet to prevent electrical shorts and fires.
Overloading Circuits: Avoid overloading circuits by spacing outlets appropriately and using power strips and extension cords sparingly.
Ignoring Local Codes: Always check local building codes and regulations to ensure compliance with safety standards.

By following these guidelines and avoiding common mistakes, you can ensure that your outlets are installed safely and conveniently at the Standard Outlet Height.

In summary, understanding and adhering to the Standard Outlet Height is essential for safe and convenient electrical installations. Whether you are a professional electrician or a DIY enthusiast, following the guidelines and regulations ensures that your outlets are functional, safe, and aesthetically pleasing. Proper planning, accurate measurements, and careful installation are key to achieving the best results. Always prioritize safety and compliance with local codes to create a reliable and efficient electrical system in your home or building.
