Navigating the skies requires precision and adherence to established protocols, and one of the critical components of this process is the Standard Instrument Departure (SID). A SID is a published instrument flight procedure designed to provide a safe and efficient transition from the runway to the en-route structure. This procedure is essential for ensuring that aircraft depart from airports in a manner that minimizes delays, reduces fuel consumption, and enhances safety. Understanding the intricacies of SIDs is crucial for pilots, air traffic controllers, and aviation enthusiasts alike.
Understanding Standard Instrument Departures
A Standard Instrument Departure (SID) is a pre-planned route designed to guide aircraft from the runway to a specific point in the airspace where they can transition to en-route procedures. SIDs are particularly important in busy airspaces where multiple aircraft need to depart and climb to their cruising altitudes without interfering with each other. These procedures are meticulously designed to ensure that aircraft follow a safe and efficient path, avoiding obstacles and other aircraft.

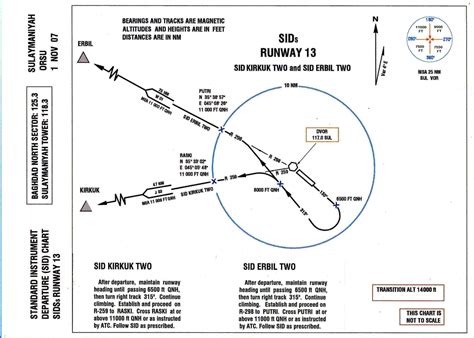

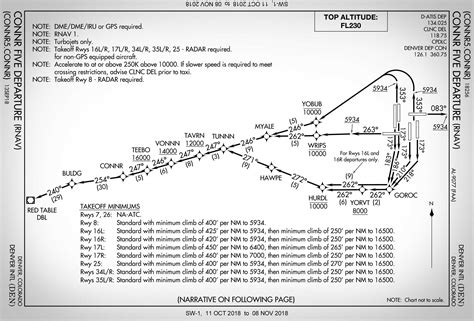

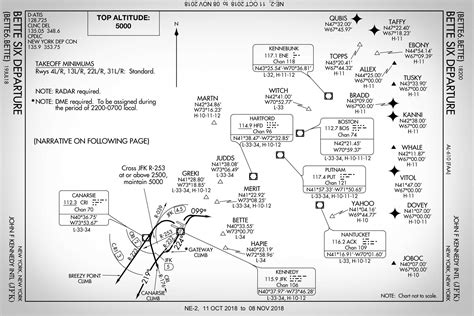

SIDs are typically published in aeronautical charts and are available through various aviation databases. They include detailed instructions on the route to be followed, altitude restrictions, and communication frequencies. Pilots must be familiar with the SID for the airport they are departing from and ensure they comply with all the specified procedures.
Components of a Standard Instrument Departure
A SID consists of several key components that pilots must understand and follow:
- Departure End of Runway (DER): The point at which the aircraft begins its takeoff roll.
- Initial Climb: The initial climb path that the aircraft follows immediately after takeoff. This includes specific altitude restrictions and turn instructions.
- Transition Points: Specific waypoints or fixes that the aircraft must pass through during the departure. These points help ensure that the aircraft stays on the designated route.
- Altitude Restrictions: Specific altitudes that the aircraft must reach by certain points along the route. These restrictions help maintain separation from other aircraft and obstacles.
- Communication Instructions: Specific frequencies and call signs that the pilot must use to communicate with air traffic control during the departure.
Benefits of Using Standard Instrument Departures
Using SIDs offers several benefits to both pilots and air traffic controllers:
- Safety: SIDs are designed to ensure that aircraft follow a safe path, avoiding obstacles and other aircraft. This reduces the risk of collisions and other incidents.
- Efficiency: By following a pre-planned route, aircraft can minimize delays and reduce fuel consumption. This is particularly important in busy airspaces where multiple aircraft are departing and climbing to their cruising altitudes.
- Consistency: SIDs provide a consistent and predictable departure procedure, making it easier for air traffic controllers to manage the flow of traffic.
- Reduced Workload: Pilots and air traffic controllers can focus on other aspects of the flight, knowing that the departure procedure is well-defined and standardized.
Types of Standard Instrument Departures
There are several types of SIDs, each designed for specific situations and airspaces. Some of the most common types include:
- Radar Vectored Departures: These departures are controlled by air traffic control using radar to guide the aircraft along the designated route.
- RNAV Departures: These departures use area navigation (RNAV) systems to guide the aircraft along the route. RNAV departures are particularly useful in areas with complex terrain or airspace.
- DME Arc Departures: These departures use distance measuring equipment (DME) to guide the aircraft along an arc-shaped route. DME arc departures are often used in areas with limited navigational aids.
Example of a Standard Instrument Departure
Let's consider an example of a SID for a hypothetical airport. The SID might be named "RUNWAY 27L DEPARTURE" and include the following instructions:
| Waypoint | Altitude | Instructions |
|---|---|---|
| RUNWAY 27L | 1,000 feet | Climb to 1,000 feet, turn left heading 270 degrees. |
| KILRO | 3,000 feet | Climb to 3,000 feet, turn right heading 360 degrees. |
| BETTY | 5,000 feet | Climb to 5,000 feet, turn left heading 090 degrees. |
| Transition to En-Route | 7,000 feet | Climb to 7,000 feet, contact en-route air traffic control. |
In this example, the pilot would follow the specified route, climbing to the designated altitudes and turning as instructed. The pilot would also communicate with air traffic control as specified in the SID.
📝 Note: Always refer to the latest aeronautical charts and databases for the most current SID procedures.
Challenges and Considerations
While SIDs offer numerous benefits, there are also challenges and considerations that pilots and air traffic controllers must be aware of:
- Complexity: Some SIDs can be complex, with multiple waypoints and altitude restrictions. Pilots must be familiar with the procedure and ensure they comply with all the specified instructions.
- Weather Conditions: Adverse weather conditions can affect the ability to follow a SID. Pilots must be prepared to deviate from the procedure if necessary to ensure safety.
- Air Traffic Control Instructions: Pilots must be prepared to receive and comply with instructions from air traffic control, which may override the SID procedure.
Training and Preparation
Proper training and preparation are essential for pilots to effectively use SIDs. This includes:
- Familiarization: Pilots should familiarize themselves with the SID for the airport they are departing from. This includes studying the aeronautical charts and understanding the route, altitude restrictions, and communication instructions.
- Simulation: Pilots should practice SIDs in a simulator to gain experience and build confidence. This allows pilots to become familiar with the procedure and identify any potential challenges.
- Briefing: Pilots should brief the SID with their crew before the flight. This ensures that everyone is aware of the procedure and knows their roles and responsibilities.
By following these steps, pilots can ensure they are well-prepared to use SIDs effectively and safely.
📝 Note: Always follow the latest procedures and guidelines provided by aviation authorities.
In conclusion, Standard Instrument Departures (SIDs) are a critical component of modern aviation, providing a safe and efficient way for aircraft to depart from airports. By understanding the components, benefits, and challenges of SIDs, pilots and air traffic controllers can ensure that departures are conducted smoothly and safely. Proper training and preparation are essential for pilots to effectively use SIDs, and by following the specified procedures, they can minimize delays, reduce fuel consumption, and enhance safety. The use of SIDs is a testament to the precision and coordination required in aviation, ensuring that every flight begins on the right path.
