Staircase Height Standards

Understanding and adhering to Staircase Height Standards is crucial for ensuring safety and compliance in both residential and commercial buildings. Staircases are a fundamental part of any multi-story structure, and their design must prioritize user safety and accessibility. This blog post delves into the importance of Staircase Height Standards, the key measurements to consider, and how to implement these standards effectively.

Table of Contents

Understanding Staircase Height Standards

Staircase Height Standards refer to the guidelines that dictate the dimensions and specifications of staircases to ensure they are safe and usable for all individuals. These standards are established by various building codes and regulations, which vary by region but share common principles. The primary goal is to prevent accidents and injuries by providing a consistent and predictable staircase design.

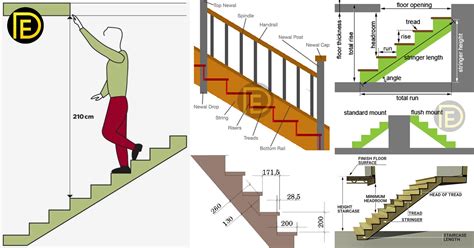

Key Measurements in Staircase Design

When designing a staircase, several key measurements must be considered to meet Staircase Height Standards. These include:

Rise: The vertical distance between the top and bottom of a step.
Run: The horizontal distance between the front and back of a step.
Tread: The horizontal surface of a step where the foot is placed.
Height: The total vertical distance from the floor to the landing or next floor.

These measurements are interconnected and must be carefully calculated to ensure compliance with Staircase Height Standards.

Importance of Rise and Run

The rise and run are two of the most critical measurements in staircase design. The rise is the vertical distance between each step, while the run is the horizontal distance. According to most building codes, the rise should be between 6 to 7.5 inches (152 to 190 mm), and the run should be at least 10 inches (254 mm). These dimensions ensure that the staircase is neither too steep nor too shallow, making it comfortable and safe to use.

It is essential to maintain a consistent rise and run throughout the staircase. Variations can lead to tripping hazards and discomfort for users. The total rise of the staircase should also be considered when determining the number of steps. For example, if the total height from one floor to the next is 96 inches (2438 mm), and each step has a rise of 7 inches (178 mm), the staircase would require approximately 14 steps.

Tread Width and Depth

The tread is the horizontal surface of each step, and its width and depth are crucial for safety and comfort. The minimum tread depth should be at least 10 inches (254 mm), but it is often recommended to be 11 inches (279 mm) or more for added comfort. The width of the tread should be consistent with the width of the staircase to ensure stability and ease of use.

Treads should also have a non-slip surface to prevent accidents, especially in areas prone to moisture or spills. This can be achieved through the use of textured materials or non-slip coatings.

Handrails and Guardrails

Handrails and guardrails are essential components of any staircase, providing support and preventing falls. According to Staircase Height Standards, handrails should be installed on both sides of the staircase and should be between 34 to 38 inches (864 to 965 mm) above the tread. The handrail should also be continuous and extend beyond the top and bottom steps to provide additional support.

Guardrails should be installed along the open sides of the staircase to prevent falls. The height of the guardrail should be at least 42 inches (1067 mm) above the tread, and the spacing between the balusters should not exceed 4 inches (102 mm) to prevent small children or pets from falling through.

Building Codes and Regulations

Building codes and regulations vary by region, but they all share common principles regarding Staircase Height Standards. In the United States, the International Building Code (IBC) and the International Residential Code (IRC) provide guidelines for staircase design. These codes specify the minimum and maximum dimensions for rise, run, tread, and handrails, as well as requirements for lighting and accessibility.

In Europe, the European Standard EN 14122 provides guidelines for staircase design, focusing on safety and accessibility. These standards are often adopted by individual countries and may include additional requirements specific to local conditions.

It is essential to consult local building codes and regulations when designing a staircase to ensure compliance with Staircase Height Standards. Failure to adhere to these standards can result in fines, legal issues, and, more importantly, safety hazards for users.

Accessibility Considerations

In addition to meeting Staircase Height Standards, it is crucial to consider accessibility for individuals with disabilities. The Americans with Disabilities Act (ADA) provides guidelines for accessible staircase design, including requirements for handrails, treads, and landings. These guidelines ensure that staircases are usable by individuals with mobility impairments, providing equal access to all areas of a building.

Some key accessibility considerations include:

Providing a clear width of at least 36 inches (914 mm) for wheelchair access.
Installing handrails on both sides of the staircase.
Ensuring that landings are at least 60 inches (1524 mm) in length and 60 inches (1524 mm) in width.
Providing visual contrast between the treads and risers to aid individuals with visual impairments.

By incorporating these accessibility features, staircases can be made safer and more usable for a broader range of individuals.

Designing for Comfort and Aesthetics

While safety and compliance with Staircase Height Standards are paramount, it is also essential to consider comfort and aesthetics in staircase design. A well-designed staircase can enhance the overall appearance of a building and provide a comfortable and enjoyable experience for users.

Some design considerations for comfort and aesthetics include:

Choosing materials that are durable, easy to maintain, and visually appealing.
Incorporating lighting to illuminate the staircase and create a welcoming atmosphere.
Using decorative elements such as balusters, newel posts, and handrails to enhance the staircase's appearance.
Ensuring that the staircase is proportionate to the surrounding space and complements the overall design of the building.

By balancing safety, comfort, and aesthetics, a staircase can become a functional and visually appealing feature of any building.

💡 Note: Always consult with a professional architect or engineer when designing a staircase to ensure compliance with local building codes and regulations.

When designing a staircase, it is essential to consider the specific needs and preferences of the users. For example, in residential settings, the staircase should be designed to accommodate the needs of all family members, including children and elderly individuals. In commercial settings, the staircase should be designed to handle high traffic volumes and provide easy access for all users.

Additionally, it is crucial to consider the overall design and style of the building when selecting materials and finishes for the staircase. The staircase should complement the surrounding architecture and enhance the building's aesthetic appeal.

By carefully considering these factors, a staircase can be designed to meet Staircase Height Standards, provide a safe and comfortable experience for users, and enhance the overall appearance of the building.

In conclusion, adhering to Staircase Height Standards is essential for ensuring the safety and usability of staircases in both residential and commercial buildings. By understanding the key measurements, consulting local building codes, and considering accessibility and design aesthetics, staircases can be designed to meet the needs of all users while enhancing the overall appearance of the building. Proper planning and execution are crucial for creating a staircase that is both functional and visually appealing, providing a safe and enjoyable experience for all who use it.
