Stages Of Mass Spectrometry

Mass spectrometry is a powerful analytical technique used to identify the amount and type of chemicals present in a sample by measuring the mass-to-charge ratio and abundance of gas-phase ions. Understanding the Stages Of Mass Spectrometry is crucial for anyone working in fields such as chemistry, biology, environmental science, and forensics. This technique involves several key stages, each playing a vital role in the overall process.

Table of Contents

Introduction to Mass Spectrometry

Mass spectrometry is a versatile tool that can analyze a wide range of compounds, from small molecules to large biomolecules. The basic principle involves ionizing the sample, accelerating the ions, and then measuring their mass-to-charge ratio. This process provides detailed information about the molecular structure and composition of the sample.

The Stages Of Mass Spectrometry

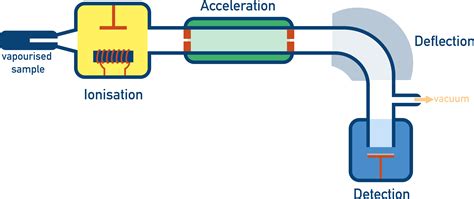

The Stages Of Mass Spectrometry can be broadly categorized into four main stages: ionization, acceleration, deflection, and detection. Each stage is essential for the accurate analysis of the sample.

Ionization

The first stage in mass spectrometry is ionization, where the sample is converted into ions. This process is crucial because mass spectrometers measure the mass-to-charge ratio of ions, not neutral molecules. There are several methods of ionization, each suited to different types of samples:

Electron Ionization (EI): This method involves bombarding the sample with high-energy electrons, causing it to lose an electron and become a positively charged ion.
Chemical Ionization (CI): In this method, the sample is ionized by reacting with ions of a reagent gas, such as methane or ammonia.
Electrospray Ionization (ESI): This technique is commonly used for large biomolecules. It involves spraying the sample solution through a fine needle, creating a mist of charged droplets that evaporate to form ions.
Matrix-Assisted Laser Desorption/Ionization (MALDI): This method is used for large molecules like proteins and polymers. The sample is mixed with a matrix material and irradiated with a laser, causing the matrix to absorb energy and transfer it to the sample, resulting in ionization.

Acceleration

Once the sample is ionized, the ions are accelerated through an electric field. This stage is crucial for separating the ions based on their mass-to-charge ratio. The acceleration voltage determines the kinetic energy of the ions, which is directly proportional to their mass-to-charge ratio. The ions are then directed into the mass analyzer, where they are separated based on their mass-to-charge ratio.

Deflection

The deflection stage involves separating the ions based on their mass-to-charge ratio. This is typically achieved using a magnetic field or an electric field. The most common types of mass analyzers include:

Quadrupole Mass Analyzer: This type uses a combination of direct current (DC) and radio frequency (RF) electric fields to filter ions based on their mass-to-charge ratio.

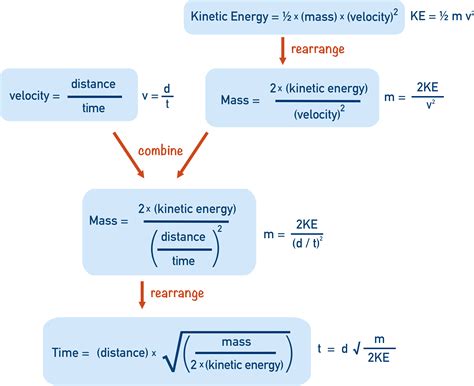

Time-of-Flight (TOF) Mass Analyzer: In this method, ions are accelerated to the same kinetic energy and then allowed to drift through a field-free region. Lighter ions travel faster and reach the detector before heavier ions.
Ion Trap Mass Analyzer: This type uses a combination of electric and magnetic fields to trap ions in a small volume. The ions are then selectively ejected based on their mass-to-charge ratio.
Fourier Transform Ion Cyclotron Resonance (FT-ICR) Mass Analyzer: This method uses a strong magnetic field to trap ions in a cyclotron motion. The ions are then excited to a larger orbit and detected based on their cyclotron frequency.

Detection

The final stage in mass spectrometry is detection, where the separated ions are detected and their abundance is measured. The most common types of detectors include:

Electron Multiplier: This detector amplifies the signal from the ions, converting it into an electrical signal that can be measured.
Microchannel Plate (MCP) Detector: This type uses a plate with many small channels to amplify the signal from the ions.
Array Detector: This detector uses an array of sensors to detect ions simultaneously, providing a more detailed analysis.

Applications of Mass Spectrometry

Mass spectrometry has a wide range of applications across various fields. Some of the key applications include:

Proteomics: Mass spectrometry is used to identify and quantify proteins in biological samples, helping to understand protein function and interactions.
Metabolomics: This technique is used to analyze the metabolic profile of cells, tissues, or organisms, providing insights into metabolic pathways and disease states.
Environmental Analysis: Mass spectrometry is used to detect and quantify pollutants in environmental samples, such as water, soil, and air.
Forensics: This technique is used to identify and quantify drugs, toxins, and other substances in forensic samples, aiding in criminal investigations.
Pharmaceuticals: Mass spectrometry is used to analyze drug compounds, monitor drug metabolism, and ensure the quality and purity of pharmaceutical products.

Interpreting Mass Spectrometry Data

Interpreting mass spectrometry data involves analyzing the mass-to-charge ratio and abundance of the detected ions. The resulting spectrum provides information about the molecular weight, structure, and composition of the sample. Key points to consider when interpreting mass spectrometry data include:

Molecular Ion Peak: This peak corresponds to the molecular weight of the sample and is crucial for identifying the compound.
Fragment Ions: These ions result from the fragmentation of the molecular ion and provide information about the structure of the compound.
Isotopic Patterns: The natural abundance of isotopes can provide additional information about the elemental composition of the compound.
Relative Abundance: The intensity of the peaks indicates the relative abundance of the ions, which can be used to quantify the amount of the compound in the sample.

To illustrate the interpretation of mass spectrometry data, consider the following example:

Mass-to-Charge Ratio (m/z)	Relative Abundance (%)
100	100
73	50
58	30
43	20

In this example, the peak at m/z 100 corresponds to the molecular ion, while the peaks at m/z 73, 58, and 43 are fragment ions. The relative abundance of these peaks provides information about the structure and composition of the compound.

🔍 Note: The interpretation of mass spectrometry data requires a good understanding of the principles of mass spectrometry and the specific techniques used. It is often helpful to use software tools and databases to assist in the analysis.

Advances in Mass Spectrometry

Mass spectrometry is a rapidly evolving field, with new technologies and techniques continually being developed. Some of the recent advances in mass spectrometry include:

High-Resolution Mass Spectrometry: This technique provides higher resolution and accuracy, allowing for the detection of small differences in mass-to-charge ratio.
Tandem Mass Spectrometry (MS/MS): This method involves multiple stages of mass analysis, providing more detailed information about the structure and composition of the compound.
Imaging Mass Spectrometry: This technique allows for the spatial distribution of compounds to be visualized, providing insights into the localization of molecules in tissues and cells.
Ambient Ionization Techniques: These methods allow for the direct analysis of samples in their natural state, without the need for extensive sample preparation.

These advances have expanded the applications of mass spectrometry and improved its sensitivity, accuracy, and versatility.

Mass spectrometry is a powerful and versatile analytical technique with a wide range of applications. Understanding the Stages Of Mass Spectrometry—ionization, acceleration, deflection, and detection—is essential for effectively using this tool. Whether in proteomics, metabolomics, environmental analysis, forensics, or pharmaceuticals, mass spectrometry provides valuable insights into the molecular composition and structure of samples. As the field continues to evolve, new technologies and techniques will further enhance the capabilities of mass spectrometry, making it an indispensable tool for scientific research and analysis.
