Understanding the fundamentals of digital electronics is crucial for anyone delving into the world of circuit design and digital systems. One of the essential components in this field is the SR latch, a basic memory element used to store a single bit of information. The Sr Latch Truth Table is a fundamental tool that helps in understanding the behavior of an SR latch under different input conditions. This post will delve into the intricacies of the SR latch, its truth table, and its applications in digital circuits.
What is an SR Latch?
An SR latch, also known as a Set-Reset latch, is a bistable multivibrator circuit that can store one bit of information. It has two inputs: Set (S) and Reset ®, and two outputs: Q and Q’. The SR latch can be in one of two stable states: Q = 0 and Q’ = 1, or Q = 1 and Q’ = 0. The state of the latch is determined by the inputs S and R.
Understanding the Sr Latch Truth Table

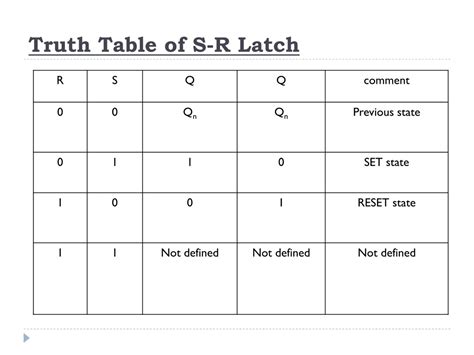

The Sr Latch Truth Table is a tabular representation that shows the next state of the latch based on the current state and the input conditions. The truth table for an SR latch is as follows:
| S | R | Q(next) | Q'(next) |
|---|---|---|---|
| 0 | 0 | Q(previous) | Q'(previous) |
| 0 | 1 | 0 | 1 |
| 1 | 0 | 1 | 0 |
| 1 | 1 | Invalid | Invalid |
The Sr Latch Truth Table can be explained as follows:
- S = 0, R = 0: The latch holds its previous state. If Q was 1, it remains 1; if Q was 0, it remains 0.
- S = 0, R = 1: The latch is reset, meaning Q becomes 0 and Q' becomes 1.
- S = 1, R = 0: The latch is set, meaning Q becomes 1 and Q' becomes 0.
- S = 1, R = 1: This condition is invalid and should be avoided as it can lead to an indeterminate state.
Applications of SR Latch
The SR latch is a fundamental building block in digital electronics and is used in various applications. Some of the key applications include:
- Memory Elements: SR latches are used as basic memory elements in digital systems to store binary data.
- Flip-Flops: SR latches are the basis for more complex flip-flops, such as D flip-flops and JK flip-flops, which are essential for synchronous circuits.
- Debouncing Circuits: SR latches are used in debouncing circuits to eliminate the bouncing effect of mechanical switches.
- Counters and Registers: SR latches are used in the design of counters and registers, which are crucial for digital systems like microprocessors and memory units.
Designing an SR Latch Circuit

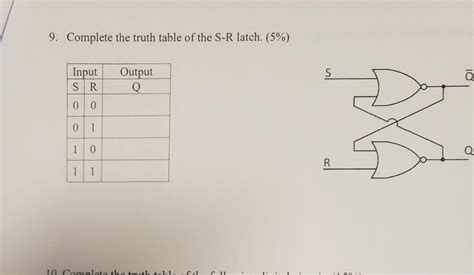

An SR latch can be designed using NOR gates or NAND gates. The most common implementation uses two NOR gates. Here is a step-by-step guide to designing an SR latch using NOR gates:
- Step 1: Connect the NOR Gates Connect two NOR gates in a cross-coupled configuration. The output of the first NOR gate (Q) is connected to one of the inputs of the second NOR gate, and the output of the second NOR gate (Q') is connected to one of the inputs of the first NOR gate.
- Step 2: Add Inputs Connect the Set (S) input to the other input of the first NOR gate and the Reset (R) input to the other input of the second NOR gate.
- Step 3: Verify the Circuit Ensure that the circuit behaves according to the Sr Latch Truth Table. Test the circuit with different input combinations to verify its functionality.
🔍 Note: It is important to avoid the invalid condition (S = 1, R = 1) in practical applications to prevent the latch from entering an indeterminate state.

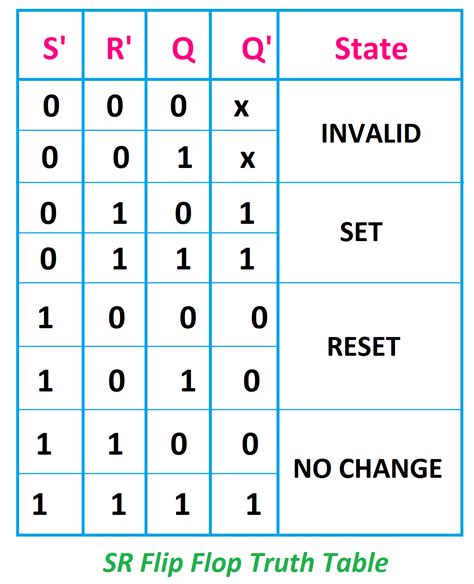

SR Latch Using NAND Gates
An SR latch can also be designed using NAND gates. The configuration is similar to the NOR gate implementation but with some differences in the input connections. Here is how to design an SR latch using NAND gates:
- Step 1: Connect the NAND Gates Connect two NAND gates in a cross-coupled configuration. The output of the first NAND gate (Q) is connected to one of the inputs of the second NAND gate, and the output of the second NAND gate (Q’) is connected to one of the inputs of the first NAND gate.
- Step 2: Add Inputs Connect the Set (S) input to the other input of the first NAND gate through an inverter, and the Reset ® input to the other input of the second NAND gate through an inverter.
- Step 3: Verify the Circuit Ensure that the circuit behaves according to the Sr Latch Truth Table. Test the circuit with different input combinations to verify its functionality.
🔍 Note: The use of inverters in the NAND gate implementation ensures that the latch behaves correctly according to the Sr Latch Truth Table.
Comparing SR Latch with Other Latches
The SR latch is just one type of latch used in digital electronics. Other types include the D latch, JK latch, and T latch. Each has its own unique characteristics and applications. Here is a brief comparison:
- D Latch: The D latch is a data latch that stores the value of the D input when the clock signal is high. It is commonly used in synchronous circuits.
- JK Latch: The JK latch is an improved version of the SR latch that avoids the invalid state. It has two inputs, J and K, and behaves similarly to the SR latch but with additional control.
- T Latch: The T latch is a toggle latch that changes its state on each clock pulse. It is used in counters and other applications where toggling is required.
Each of these latches has its own Sr Latch Truth Table or equivalent truth table that defines its behavior under different input conditions.
Conclusion
The SR latch is a fundamental component in digital electronics, and understanding its behavior through the Sr Latch Truth Table is essential for designing and analyzing digital circuits. Whether implemented using NOR gates or NAND gates, the SR latch plays a crucial role in memory elements, flip-flops, debouncing circuits, and more. By mastering the SR latch and its truth table, one can gain a deeper understanding of digital systems and their applications.
