Springs In Series

Understanding the concept of Springs In Series is crucial for anyone working with mechanical or structural systems. Springs are essential components in various applications, from automotive suspensions to industrial machinery. When springs are connected in series, their combined behavior can significantly impact the overall performance of a system. This post will delve into the fundamentals of Springs In Series, their applications, and how to calculate their combined properties.

Table of Contents

What Are Springs In Series?

When springs are connected end-to-end, they are said to be in series. In this configuration, the load applied to the system is distributed across all the springs. The total deflection of the system is the sum of the deflections of the individual springs. This arrangement is commonly used in applications where a specific deflection or load-bearing capacity is required.

Key Properties of Springs In Series

To understand Springs In Series, it's important to grasp the key properties that define their behavior:

Spring Constant (k): This is a measure of the stiffness of a spring. It is defined as the force required to compress or extend the spring by a unit distance.
Deflection (x): This is the distance a spring is compressed or extended from its equilibrium position.
Load (F): This is the force applied to the spring.

For a single spring, the relationship between these properties is given by Hooke's Law:

F = kx

Calculating the Combined Spring Constant

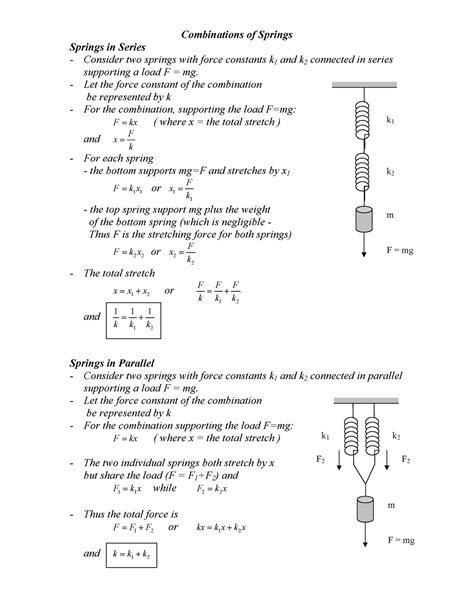

When springs are connected in series, the combined spring constant (k_series) can be calculated using the formula:

1/k_series = 1/k₁ + 1/k₂ + ... + 1/k_n

Where k₁, k₂, ..., k_n are the spring constants of the individual springs.

For example, if you have two springs with spring constants k₁ and k₂, the combined spring constant is given by:

1/k_series = 1/k₁ + 1/k₂

This formula shows that the combined spring constant of springs in series is always less than the smallest individual spring constant. This means that the overall system will be more flexible and less stiff.

Applications of Springs In Series

Springs In Series are used in a variety of applications where specific deflection and load-bearing characteristics are required. Some common applications include:

Automotive Suspensions: In vehicle suspensions, springs in series can help achieve the desired ride comfort and handling characteristics.
Industrial Machinery: In machinery, springs in series can be used to absorb shocks and vibrations, protecting the equipment from damage.
Building Structures: In construction, springs in series can be used to design structures that can withstand seismic activity and other dynamic loads.

Example Calculation

Let's consider an example to illustrate the calculation of the combined spring constant for Springs In Series. Suppose you have three springs with the following spring constants:

k₁ = 100 N/m
k₂ = 200 N/m
k₃ = 300 N/m

To find the combined spring constant (k_series), we use the formula:

1/k_series = 1/100 + 1/200 + 1/300

Calculating the individual terms:

1/100 = 0.01

1/200 = 0.005

1/300 = 0.00333

Adding these values together:

0.01 + 0.005 + 0.00333 = 0.01833

Therefore, the combined spring constant is:

k_series = 1/0.01833 ≈ 54.56 N/m

This means that the combined system of three springs in series has a spring constant of approximately 54.56 N/m.

💡 Note: When calculating the combined spring constant, ensure that all units are consistent. In this example, the spring constants are given in N/m, which is the standard unit for spring constants.

Comparing Springs In Series and Springs In Parallel

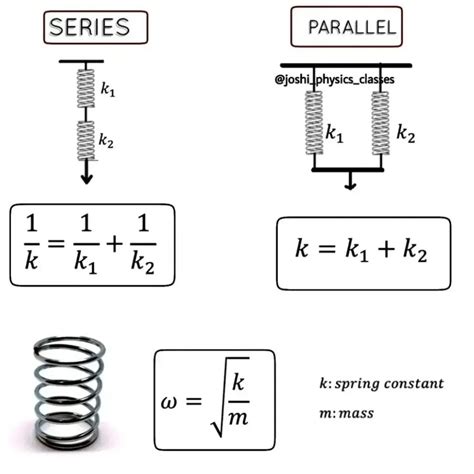

It's also useful to compare Springs In Series with springs connected in parallel. In a parallel configuration, the springs are connected side by side, and the load is distributed across all springs simultaneously. The combined spring constant for springs in parallel is given by:

k_parallel = k₁ + k₂ + ... + k_n

This formula shows that the combined spring constant of springs in parallel is always greater than the largest individual spring constant. This means that the overall system will be stiffer and less flexible.

Here is a comparison table for Springs In Series and springs in parallel:

Property	Springs In Series	Springs In Parallel
Combined Spring Constant	1/k_series = 1/k₁ + 1/k₂ + ... + 1/k_n	k_parallel = k₁ + k₂ + ... + k_n
Overall Stiffness	Less stiff	More stiff
Deflection	Greater deflection	Less deflection

Importance of Understanding Springs In Series

Understanding Springs In Series is essential for engineers and designers who work with mechanical and structural systems. By knowing how to calculate the combined spring constant and the overall behavior of the system, they can design more efficient and effective solutions. This knowledge is particularly important in applications where precise control over deflection and load-bearing capacity is required.

In addition, understanding the differences between Springs In Series and springs in parallel allows engineers to choose the best configuration for their specific application. This can lead to improved performance, reduced costs, and increased reliability of the system.

In summary, Springs In Series play a crucial role in various mechanical and structural applications. By mastering the principles and calculations involved, engineers can design systems that meet specific performance requirements and deliver optimal results.

In conclusion, the concept of Springs In Series is fundamental to the design and analysis of mechanical and structural systems. By understanding the key properties, calculations, and applications of Springs In Series, engineers can create more efficient and effective solutions. Whether in automotive suspensions, industrial machinery, or building structures, the principles of Springs In Series are essential for achieving the desired performance and reliability.
