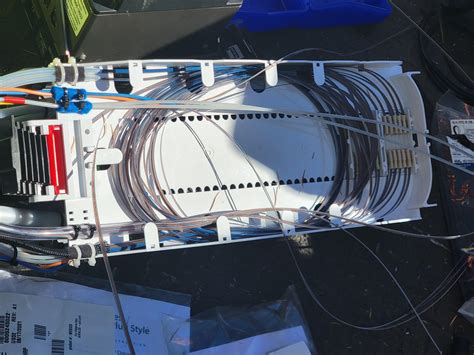

Splicing Fiber Optic Cable

Fiber optic cables have revolutionized the way we transmit data, offering high-speed and reliable communication over long distances. One of the critical processes in installing and maintaining fiber optic networks is splicing fiber optic cable. This process involves joining two fiber optic cables together to create a continuous optical path. Whether you're a professional technician or a DIY enthusiast, understanding the basics of splicing fiber optic cable is essential for ensuring optimal performance and minimizing signal loss.

Understanding Fiber Optic Cables

Before diving into the splicing process, it’s important to understand the basic components of a fiber optic cable. A typical fiber optic cable consists of the following parts:

Core: The central part of the cable where light travels.
Cladding: The layer surrounding the core that reflects light back into the core.
Buffer: A protective layer around the cladding that absorbs shocks and prevents damage.
Jacket: The outermost layer that provides additional protection and insulation.

Types of Fiber Optic Splicing

There are two primary methods for splicing fiber optic cable: mechanical splicing and fusion splicing. Each method has its advantages and is suitable for different applications.

Mechanical Splicing

Mechanical splicing involves aligning the fiber optic cables and holding them in place using a mechanical device. This method is quick and easy but may result in higher signal loss compared to fusion splicing. Mechanical splices are often used in temporary installations or emergency repairs.

Fusion Splicing

Fusion splicing, on the other hand, involves melting the ends of the fiber optic cables together using an electric arc. This method creates a permanent and low-loss connection, making it ideal for permanent installations. Fusion splicing requires specialized equipment but offers superior performance.

Equipment Needed for Fusion Splicing

To perform fusion splicing, you will need the following equipment:

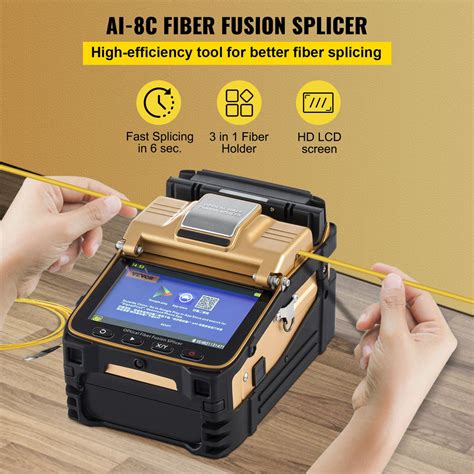

Fusion splicer
Fiber optic stripper
Fiber optic cleaver
Isopropyl alcohol and lint-free wipes
Fiber optic cable

Step-by-Step Guide to Fusion Splicing

Here is a detailed guide to splicing fiber optic cable using the fusion splicing method:

Step 1: Prepare the Fiber Optic Cables

Begin by stripping the outer jacket and buffer from the fiber optic cables to expose the cladding. Use a fiber optic stripper to carefully remove the protective layers without damaging the core.

Step 2: Clean the Fiber Ends

Clean the exposed fiber ends using isopropyl alcohol and lint-free wipes. Ensure that the ends are free of any dirt or debris, as contaminants can affect the quality of the splice.

Step 3: Cleave the Fiber

Use a fiber optic cleaver to create a clean, flat end on the fiber. The cleave should be perpendicular to the fiber axis to ensure proper alignment during splicing.

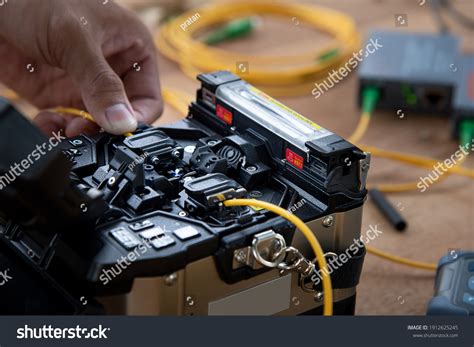

Step 4: Insert the Fiber into the Fusion Splicer

Place the prepared fiber ends into the fusion splicer’s V-grooves. Ensure that the fibers are properly aligned and secured in the splicer.

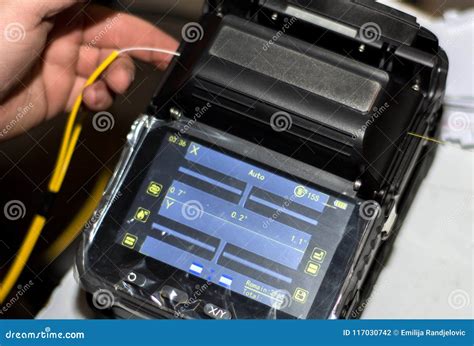

Step 5: Perform the Splice

Follow the splicer’s instructions to initiate the splicing process. The splicer will use an electric arc to melt and fuse the fiber ends together. The process typically takes a few seconds.

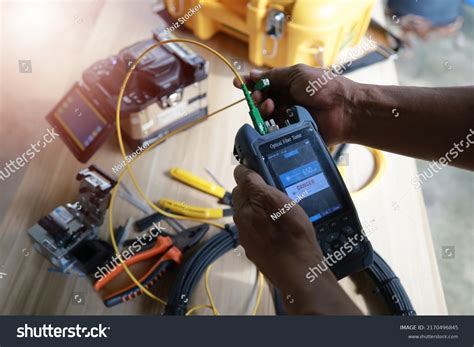

Step 6: Test the Splice

After the splice is complete, test the connection to ensure it meets the required performance standards. Use an optical power meter or other testing equipment to measure the signal loss and verify the quality of the splice.

🔍 Note: Always follow the manufacturer's guidelines for operating the fusion splicer to ensure safety and optimal performance.

Common Challenges in Splicing Fiber Optic Cable

While splicing fiber optic cable can be straightforward, there are several challenges that technicians may encounter:

Signal Loss

Signal loss is a common issue in fiber optic splicing. This can be caused by misalignment, contamination, or poor cleaving. To minimize signal loss, ensure that the fibers are properly aligned and cleaned before splicing.

Fiber Breakage

Fiber breakage can occur during the stripping or cleaving process. Handle the fibers with care and use high-quality tools to minimize the risk of breakage.

Contamination
Contamination from dirt, dust, or oil can degrade the performance of the splice. Always clean the fiber ends thoroughly before splicing and work in a clean environment.

Best Practices for Splicing Fiber Optic Cable

To ensure successful and efficient splicing fiber optic cable, follow these best practices:

Use High-Quality Equipment

Invest in high-quality splicing equipment to ensure precise and reliable splices. Cheaper tools may compromise the quality of the splice and lead to higher signal loss.

Work in a Clean Environment

Perform splicing in a clean, controlled environment to minimize the risk of contamination. Use a cleanroom or a dedicated splicing area to maintain a dust-free workspace.

Follow Manufacturer Guidelines

Always follow the manufacturer’s guidelines for operating splicing equipment. This ensures safety and optimal performance.

Test the Splice

After completing the splice, test the connection to verify its performance. Use appropriate testing equipment to measure signal loss and ensure the splice meets the required standards.

Applications of Fiber Optic Splicing

Fiber optic splicing is used in a variety of applications, including:

Telecommunications

Fiber optic cables are widely used in telecommunications for transmitting voice, data, and video signals over long distances. Splicing is essential for connecting and repairing these cables.

Data Centers

Data centers rely on fiber optic cables for high-speed data transmission. Splicing is used to connect cables within the data center and to external networks.

Cable Television

Fiber optic cables are used in cable television networks to transmit high-definition video signals. Splicing is necessary for connecting and repairing these cables.

Industrial Applications

Fiber optic cables are used in industrial settings for sensing, monitoring, and control applications. Splicing is required to connect and repair these cables in harsh environments.

Future Trends in Fiber Optic Splicing

The field of fiber optic splicing is continually evolving, with new technologies and techniques emerging to improve performance and efficiency. Some of the future trends in fiber optic splicing include:

Automated Splicing

Automated splicing systems are being developed to streamline the splicing process and reduce human error. These systems use advanced algorithms and robotics to perform precise and reliable splices.

Advanced Testing Equipment

New testing equipment is being developed to provide more accurate and comprehensive measurements of splice performance. This includes optical time-domain reflectometers (OTDRs) and other advanced testing tools.

Enhanced Fiber Materials

Research is ongoing to develop new fiber materials that offer improved performance and durability. These materials may include advanced coatings and cladding designs that enhance signal transmission and reduce signal loss.

In conclusion, splicing fiber optic cable is a critical process in the installation and maintenance of fiber optic networks. Whether you’re using mechanical or fusion splicing, understanding the basics and following best practices is essential for ensuring optimal performance and minimizing signal loss. By staying informed about the latest trends and technologies, you can continue to improve your splicing skills and stay ahead in the ever-evolving field of fiber optics.
