In the world of construction and carpentry, precision and accuracy are paramount. One tool that has become indispensable for ensuring precise cuts and level surfaces is the Speed Square With Level. This versatile tool combines the functionality of a framing square and a level, making it an essential addition to any toolkit. Whether you're a professional carpenter or a DIY enthusiast, understanding how to use a Speed Square With Level can significantly enhance the quality of your projects.

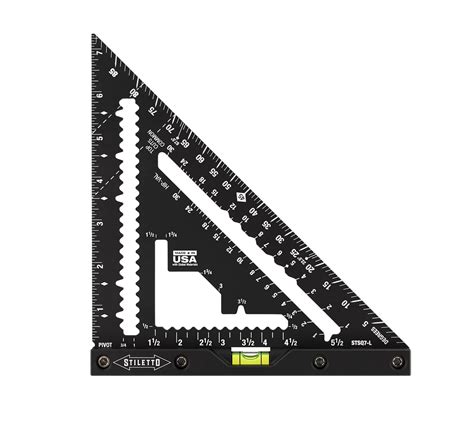

Understanding the Speed Square With Level

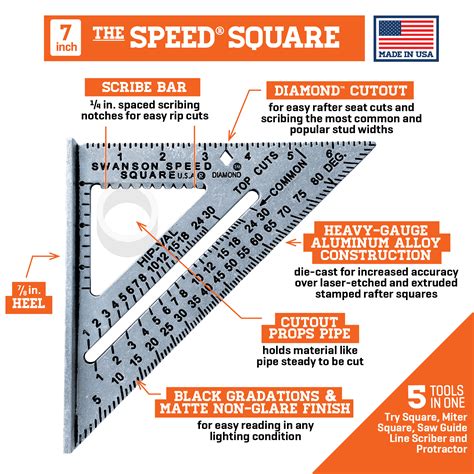

The Speed Square With Level is a multifunctional tool designed to simplify various carpentry tasks. It features a combination of a framing square and a level, allowing users to measure angles, mark cuts, and ensure surfaces are level. The tool is typically made of durable materials like aluminum or plastic, making it lightweight and easy to handle.
Key features of the Speed Square With Level include:
- Framing Square: Used for marking and measuring angles, especially 90-degree and 45-degree angles.
- Level: Ensures surfaces are level, which is crucial for accurate construction.
- Rip Cut Guide: Helps in making straight cuts along the grain of the wood.
- Miter Cut Guide: Assists in making precise miter cuts for joining pieces at angles.
- Marking Gauge: Allows for quick and accurate marking of measurements.
How to Use the Speed Square With Level
Using a Speed Square With Level effectively requires understanding its various components and their functions. Here’s a step-by-step guide to help you get started:
Setting Up the Tool
Before using the Speed Square With Level, ensure that it is properly set up. This involves checking the level bubble to make sure it is calibrated correctly. If the bubble is not centered, you may need to adjust the tool or replace it if it is damaged.

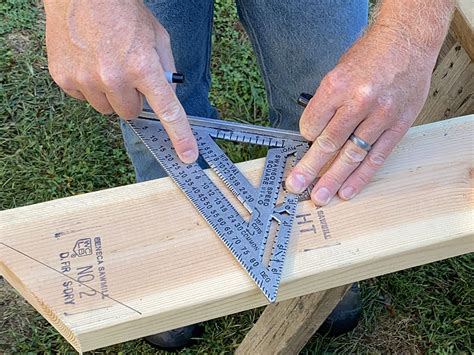

Marking Angles
One of the primary uses of the Speed Square With Level is marking angles. Here’s how to do it:
- Align the Tool: Place the tool against the edge of the material you are working with.
- Mark the Angle: Use the appropriate angle guide on the tool to mark the desired angle. For example, use the 90-degree guide for a square cut or the 45-degree guide for a miter cut.
- Draw the Line: Use a pencil or marker to draw a line along the marked angle.
Making Straight Cuts
To make straight cuts, follow these steps:
- Align the Rip Cut Guide: Place the rip cut guide along the edge of the material.
- Mark the Cut Line: Use a pencil to draw a line along the guide.
- Cut Along the Line: Use a saw to cut along the marked line, ensuring you follow the guide for a straight cut.
Ensuring Level Surfaces
To ensure that surfaces are level, use the level feature of the Speed Square With Level. Here’s how:
- Place the Tool: Position the tool on the surface you want to check.
- Check the Bubble: Look at the level bubble to see if it is centered. If it is, the surface is level. If not, adjust the surface until the bubble is centered.
Using the Marking Gauge
The marking gauge on the Speed Square With Level is useful for quickly marking measurements. Here’s how to use it:
- Set the Measurement: Adjust the gauge to the desired measurement.
- Mark the Material: Place the tool against the material and use the gauge to mark the measurement.
🔧 Note: Always ensure that the tool is clean and free of debris before use. This will help maintain its accuracy and longevity.
Common Applications of the Speed Square With Level
The Speed Square With Level is a versatile tool that can be used in various applications. Some of the most common uses include:
Framing
In framing, the Speed Square With Level is essential for ensuring that walls, floors, and roofs are level and square. It helps in marking and cutting studs, joists, and rafters accurately.
Roofing
For roofing projects, the tool is used to mark and cut rafters and trusses. It ensures that the roof is properly pitched and level, which is crucial for water drainage and structural integrity.
Deck Building
When building a deck, the Speed Square With Level helps in ensuring that the deck frame is level and square. This is important for the stability and safety of the deck.
Carpentry Projects
In general carpentry projects, the tool is used for marking and cutting wood, ensuring that joints are square and surfaces are level. This is particularly useful for building cabinets, shelves, and other wooden structures.
Maintaining Your Speed Square With Level
To ensure the longevity and accuracy of your Speed Square With Level, proper maintenance is essential. Here are some tips for maintaining your tool:
Cleaning
Regularly clean the tool to remove any dirt, dust, or debris. Use a soft cloth or brush to clean the surfaces and edges.
Storage
Store the tool in a dry, cool place to prevent rusting or warping. Avoid exposing it to extreme temperatures or moisture.
Calibration
Periodically check the calibration of the level bubble. If it is not centered, adjust the tool or replace it if necessary.
🛠️ Note: Avoid dropping or mishandling the tool, as this can damage the level bubble and affect its accuracy.
Benefits of Using a Speed Square With Level
The Speed Square With Level offers numerous benefits that make it a valuable addition to any toolkit. Some of the key benefits include:
Accuracy
The tool ensures precise measurements and cuts, which is crucial for the quality and stability of construction projects.
Versatility
With its multiple functions, the Speed Square With Level can be used for a variety of tasks, making it a versatile tool for both professionals and DIY enthusiasts.
Ease of Use
The tool is designed to be user-friendly, with clear markings and guides that make it easy to use, even for beginners.
Durability
Made from durable materials, the Speed Square With Level is built to last, providing reliable performance for years to come.
Portability
The tool is lightweight and compact, making it easy to carry around and use on various job sites.
Using a Speed Square With Level can significantly enhance the quality and efficiency of your construction and carpentry projects. By understanding its features and functions, you can make precise measurements, accurate cuts, and ensure level surfaces, leading to successful and durable results.
In summary, the Speed Square With Level is an essential tool for anyone involved in construction or carpentry. Its versatility, accuracy, and ease of use make it a valuable addition to any toolkit. Whether you’re a professional carpenter or a DIY enthusiast, investing in a Speed Square With Level can greatly improve the quality of your projects and ensure that they are built to last.
