Understanding the differences between SPDT and DPDT switches is crucial for anyone working with electrical circuits. These switches are fundamental components in various applications, from simple household wiring to complex industrial control systems. This post will delve into the intricacies of SPDT vs DPDT switches, their applications, and how to choose the right one for your needs.

Table of Contents

What is an SPDT Switch?

An SPDT (Single Pole, Double Throw) switch is a type of electrical switch that has one input and two outputs. It allows the circuit to be connected to one of two outputs at a time. SPDT switches are commonly used in applications where a single input needs to be routed to one of two different outputs.

Here are some key features of SPDT switches:

One input and two outputs.
Can connect the input to either of the two outputs.
Commonly used in applications like lighting control, where a single light can be controlled from two different locations.

What is a DPDT Switch?

A DPDT (Double Pole, Double Throw) switch is more complex than an SPDT switch. It has two inputs and four outputs, allowing for more versatile control over electrical circuits. DPDT switches are often used in applications where two separate circuits need to be controlled simultaneously.

Key features of DPDT switches include:

Two inputs and four outputs.
Can connect each input to one of two outputs.
Commonly used in applications like motor control, where both the positive and negative terminals of a motor need to be switched.

SPDT vs DPDT: Key Differences

The primary difference between SPDT and DPDT switches lies in their configuration and the number of poles and throws they have. Here’s a detailed comparison:

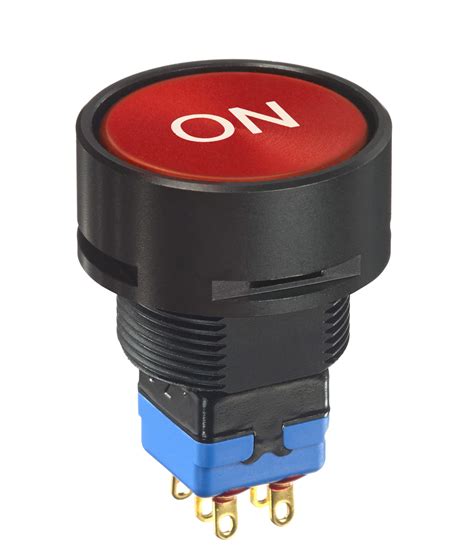

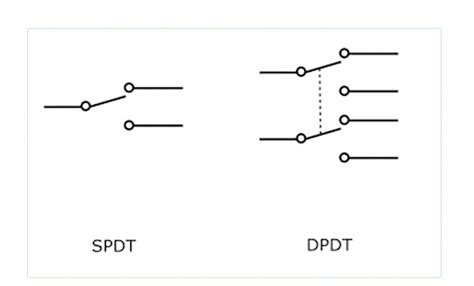

Feature	SPDT Switch	DPDT Switch
Poles	1	2
Throws	2	2
Inputs	1	2
Outputs	2	4
Common Applications	Lighting control, simple circuit switching	Motor control, dual-circuit switching

Understanding these differences is essential for selecting the right switch for your specific application. SPDT switches are simpler and more straightforward, making them ideal for basic switching tasks. DPDT switches, on the other hand, offer more control and flexibility, making them suitable for more complex applications.

Applications of SPDT Switches

SPDT switches are widely used in various applications due to their simplicity and reliability. Some common applications include:

Lighting Control: SPDT switches are often used to control lights from two different locations, such as a hallway light that can be turned on or off from both ends of the hallway.
Simple Circuit Switching: They are used in simple circuits where a single input needs to be routed to one of two outputs.
Audio Equipment: SPDT switches can be found in audio equipment to switch between different input sources.

SPDT switches are versatile and can be used in both residential and commercial settings. Their simplicity makes them easy to install and maintain, making them a popular choice for many applications.

Applications of DPDT Switches

DPDT switches are more complex and are used in applications that require more control over electrical circuits. Some common applications include:

Motor Control: DPDT switches are often used to control the direction of a motor by switching both the positive and negative terminals.
Dual-Circuit Switching: They are used in applications where two separate circuits need to be controlled simultaneously.
Industrial Control Systems: DPDT switches are commonly found in industrial control systems where precise control over multiple circuits is required.

DPDT switches offer more flexibility and control, making them ideal for complex applications. However, their complexity also means they require more careful installation and maintenance.

Choosing Between SPDT and DPDT Switches

Choosing between SPDT and DPDT switches depends on the specific requirements of your application. Here are some factors to consider:

Number of Circuits: If you need to control only one circuit, an SPDT switch is sufficient. If you need to control two separate circuits, a DPDT switch is more appropriate.
Complexity of the Application: For simple applications, an SPDT switch is easier to install and maintain. For more complex applications, a DPDT switch offers the necessary control and flexibility.
Cost: SPDT switches are generally less expensive than DPDT switches. If cost is a concern, an SPDT switch may be the better choice.

By considering these factors, you can make an informed decision about which type of switch is best for your needs.

💡 Note: Always ensure that the switch you choose is rated for the voltage and current of your application to avoid any electrical hazards.

Installation Tips for SPDT and DPDT Switches

Proper installation is crucial for the safe and effective operation of SPDT and DPDT switches. Here are some tips for installing these switches:

Safety First: Always turn off the power to the circuit before installing or replacing a switch.
Follow Manufacturer Instructions: Each switch may have specific installation instructions provided by the manufacturer. Always follow these instructions carefully.
Use Appropriate Tools: Use the right tools for the job, such as a screwdriver and wire strippers, to ensure a secure and safe installation.
Test the Switch: After installation, test the switch to ensure it is functioning correctly.

By following these tips, you can ensure that your SPDT or DPDT switch is installed correctly and safely.

💡 Note: If you are unsure about any aspect of the installation process, consult a professional electrician to avoid any potential hazards.

In summary, understanding the differences between SPDT and DPDT switches is essential for selecting the right switch for your application. SPDT switches are simpler and ideal for basic switching tasks, while DPDT switches offer more control and flexibility for complex applications. By considering the specific requirements of your application and following proper installation practices, you can ensure that your electrical circuits operate safely and efficiently.
