Solder Or Braze

In the world of metalworking and fabrication, the processes of solder or braze are essential techniques that join metals together. These methods are widely used in various industries, including electronics, plumbing, and automotive manufacturing. Understanding the differences between soldering and brazing, as well as their applications and techniques, is crucial for anyone involved in metalwork. This post will delve into the intricacies of soldering and brazing, providing a comprehensive guide to help you master these skills.

Table of Contents

Understanding Soldering

Soldering is a process that involves joining two or more metal items by melting and flowing a filler metal (solder) into the joint. The solder has a lower melting point than the base metals being joined. This process is commonly used in electronics for connecting components to circuit boards and in plumbing for joining pipes.

Types of Solder

There are several types of solder, each suited for different applications:

Lead-based solder: Traditionally used for its low melting point and ease of use, but increasingly being phased out due to health and environmental concerns.
Lead-free solder: A more environmentally friendly alternative, commonly used in electronics and plumbing.
Silver solder: Contains silver and is used for high-strength joints, often in jewelry and plumbing.
Flux-core solder: Contains flux within the solder wire, making it easier to apply and reducing the need for separate flux application.

Soldering Techniques

Different soldering techniques are employed depending on the application:

Hand soldering: Uses a soldering iron to melt the solder and join components. Common in electronics repair and prototyping.
Wave soldering: Involves passing a printed circuit board (PCB) over a wave of molten solder. Used in mass production of electronic assemblies.
Reflow soldering: Uses heat to melt the solder paste, joining components to a PCB. Common in surface-mount technology (SMT) assembly.

Soldering Equipment

Essential equipment for soldering includes:

Soldering iron: A handheld tool with a heated tip used to melt the solder.
Solder: The filler metal used to join the components.
Flux: A chemical agent that helps the solder flow and improves the quality of the joint.
Soldering station: A more advanced setup that includes a soldering iron, temperature control, and other features.

Understanding Brazing

Brazing is a metal-joining process that uses a filler metal with a melting point above 450°C (842°F) but below the melting point of the base metals. Unlike soldering, brazing creates a stronger joint and is often used in high-strength applications such as automotive and aerospace industries.

Types of Brazing

There are several types of brazing, each with its own set of applications:

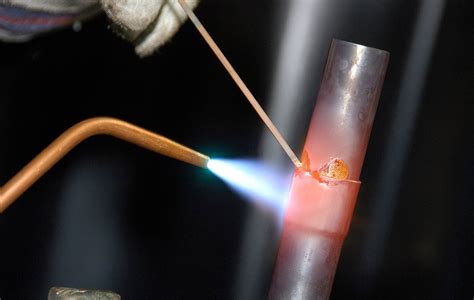

Torch brazing: Uses a torch to heat the joint area and melt the filler metal. Common in jewelry and small-scale manufacturing.
Furnace brazing: Involves heating the entire assembly in a furnace. Used for mass production and complex assemblies.
Induction brazing: Uses electromagnetic induction to heat the joint area. Suitable for high-volume production and precise heating.
Silver brazing: Uses a silver-based filler metal for high-strength joints. Common in plumbing and automotive applications.

Brazing Techniques

Different brazing techniques are employed depending on the application:

Manual brazing: Involves using a torch or other heat source to melt the filler metal. Common in small-scale and repair work.
Automated brazing: Uses machinery to control the heating and application of the filler metal. Suitable for mass production.
Vacuum brazing: Performed in a vacuum to prevent oxidation and ensure a clean joint. Used in high-precision applications.

Brazing Equipment

Essential equipment for brazing includes:

Torch: A heat source used to melt the filler metal.
Filler metal: The material used to join the base metals.
Flux: A chemical agent that helps the filler metal flow and improves the quality of the joint.
Furnace or induction heater: Used for larger-scale or automated brazing processes.

Comparing Soldering and Brazing

While both soldering and brazing involve joining metals using a filler material, there are key differences between the two processes:

Aspect	Soldering	Brazing
Melting Point of Filler Metal	Below 450°C (842°F)	Above 450°C (842°F)
Strength of Joint	Lower strength	Higher strength
Applications	Electronics, plumbing	Automotive, aerospace
Equipment	Soldering iron, solder, flux	Torch, filler metal, flux, furnace or induction heater

Choosing between soldering and brazing depends on the specific requirements of your project. Soldering is ideal for applications where a lower-strength joint is sufficient, such as in electronics. Brazing, on the other hand, is better suited for high-strength applications where durability and reliability are critical.

🔧 Note: Always ensure proper ventilation and safety measures when soldering or brazing to avoid inhalation of harmful fumes.

When deciding whether to solder or braze, consider the following factors:

Material Compatibility: Ensure the filler metal is compatible with the base metals being joined.
Joint Strength: Determine the required strength of the joint to choose the appropriate process.
Application: Consider the specific application and environmental conditions the joint will be exposed to.
Equipment Availability: Ensure you have the necessary equipment and materials for the chosen process.

In summary, both soldering and brazing are essential techniques in metalworking, each with its own set of applications and benefits. Understanding the differences between these processes and choosing the right one for your project is crucial for achieving high-quality, reliable joints.

Mastering the art of soldering and brazing requires practice and attention to detail. By following the guidelines and techniques outlined in this post, you can enhance your skills and achieve professional results in your metalworking projects.
