Solder Melting Temperature

Soldering is a fundamental skill in electronics, essential for creating reliable connections between components. Understanding the solder melting temperature is crucial for achieving strong, durable solder joints. This guide will delve into the intricacies of soldering, the importance of solder melting temperature, and how to master this technique for various applications.

Table of Contents

Understanding Soldering

Soldering involves joining two or more metal items by melting and flowing a filler metal (solder) into the joint. The process requires heat, which is typically applied using a soldering iron. The solder melting temperature is a critical factor in ensuring that the solder flows correctly and forms a strong bond.

The Importance of Solder Melting Temperature

The solder melting temperature refers to the point at which the solder transitions from a solid to a liquid state. This temperature is crucial because it determines the ease of flow and the strength of the resulting joint. Different types of solder have varying melting temperatures, and choosing the right one for your project is essential.

For example, lead-free solder, which is commonly used in electronics due to environmental regulations, has a higher melting temperature compared to traditional lead-based solder. This means that more heat is required to melt lead-free solder, which can affect the soldering process and the quality of the joint.

Types of Solder and Their Melting Temperatures

There are several types of solder available, each with its own melting temperature and characteristics. Understanding these differences can help you select the right solder for your project.

Here is a table outlining some common types of solder and their melting temperatures:

Type of Solder	Melting Temperature (°C)	Melting Temperature (°F)
Lead-based Solder (60/40)	188-190	370-374
Lead-free Solder (SnAgCu)	217-227	423-441
Silver-bearing Solder	221-227	430-441
Low-melting Solder (SnBi)	138	280

Each type of solder has its advantages and disadvantages. For instance, lead-based solder is easier to work with due to its lower melting temperature, but it is being phased out due to environmental concerns. Lead-free solder, on the other hand, is more environmentally friendly but requires higher temperatures and more skill to use effectively.

Choosing the Right Soldering Iron

Selecting the right soldering iron is just as important as choosing the right solder. The soldering iron’s wattage and tip type can significantly impact the soldering process. A higher wattage iron can reach and maintain the necessary solder melting temperature more quickly, which is particularly important when working with lead-free solder.

Here are some key factors to consider when choosing a soldering iron:

Wattage: Higher wattage (60-100W) is generally better for lead-free soldering.
Tip Type: Different tips are suitable for various applications. For example, a fine tip is ideal for precision work, while a larger tip is better for larger components.
Temperature Control: A soldering iron with adjustable temperature settings allows for greater control over the soldering process.

Additionally, consider the ergonomics of the soldering iron. A comfortable grip and lightweight design can reduce fatigue during extended soldering sessions.

Preparing for Soldering

Before you begin soldering, it’s essential to prepare your workspace and materials. Proper preparation can help ensure a successful soldering process and minimize the risk of errors.

Here are some steps to prepare for soldering:

Clean the work area to remove any debris or contaminants that could interfere with the soldering process.
Gather all necessary tools and materials, including the soldering iron, solder, flux, and any required components.
Ensure that the soldering iron is properly heated to the correct temperature. This is crucial for achieving the right solder melting temperature and ensuring a strong joint.

Flux is an essential component in soldering. It helps to clean the metal surfaces and improve the flow of solder. There are different types of flux available, including rosin-core flux, which is commonly used in electronics.

🔧 Note: Always use flux sparingly to avoid excess residue, which can weaken the solder joint.

The Soldering Process

Once you have prepared your workspace and materials, you can begin the soldering process. Follow these steps to achieve a strong, reliable solder joint:

1. Apply Flux: Apply a small amount of flux to the joint area. This will help to clean the surfaces and improve solder flow.

2. Heat the Joint: Use the soldering iron to heat the joint area, not the solder itself. The goal is to heat the metal surfaces to the solder melting temperature so that the solder will flow evenly.

3. Apply Solder: Once the joint is hot enough, touch the solder to the joint. The solder should melt and flow into the joint, creating a strong bond.

4. Remove the Soldering Iron: After the solder has flowed into the joint, remove the soldering iron and allow the joint to cool naturally. Avoid moving the components until the solder has solidified.

5. Inspect the Joint: Once the joint has cooled, inspect it for any signs of defects, such as cold joints or excess solder. A properly soldered joint should have a smooth, shiny appearance.

Here is an image illustrating the soldering process:

Remember that practice is key to mastering the soldering process. With experience, you will develop a better feel for the solder melting temperature and the flow of solder, leading to stronger, more reliable joints.

🔧 Note: Always work in a well-ventilated area to avoid inhaling fumes from the solder and flux.

Common Soldering Mistakes and How to Avoid Them

Even with careful preparation and technique, mistakes can happen during the soldering process. Understanding common soldering errors and how to avoid them can help you achieve better results.

Here are some common soldering mistakes and tips for avoiding them:

Cold Joints: Cold joints occur when the solder does not flow properly, resulting in a weak bond. To avoid cold joints, ensure that the joint is heated to the correct solder melting temperature before applying solder.
Excess Solder: Applying too much solder can create a messy joint and increase the risk of short circuits. Use just enough solder to fill the joint and create a strong bond.
Insufficient Flux: Insufficient flux can lead to poor solder flow and weak joints. Apply a small amount of flux to the joint area before heating.
Overheating: Overheating the joint can damage components and weaken the solder bond. Use the correct solder melting temperature and avoid prolonged heating.

By being aware of these common mistakes and taking steps to avoid them, you can improve the quality of your solder joints and ensure the reliability of your electronic projects.

Here is an image illustrating common soldering mistakes:

Advanced Soldering Techniques

Once you have mastered the basics of soldering, you may want to explore advanced techniques to enhance your skills and tackle more complex projects. Here are some advanced soldering techniques to consider:

Surface-Mount Technology (SMT): SMT involves soldering components directly to the surface of a printed circuit board (PCB). This technique requires precision and specialized tools, such as a hot air rework station.
Reflow Soldering: Reflow soldering is a process used in SMT to melt the solder paste and create a strong bond between the components and the PCB. This technique involves heating the entire PCB to the solder melting temperature and allowing the solder to flow.
Wave Soldering: Wave soldering is an automated process used in mass production to solder components to a PCB. The PCB is passed over a wave of molten solder, which flows into the joints and creates a strong bond.

These advanced techniques require specialized equipment and a deeper understanding of the soldering process. However, mastering them can open up new possibilities for your electronic projects and improve the quality of your work.

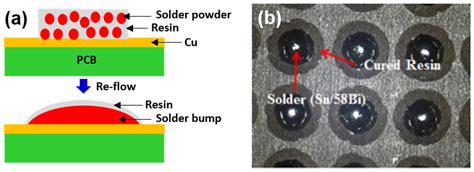

Here is an image illustrating surface-mount technology:

Understanding the solder melting temperature and the various techniques involved in soldering is essential for achieving strong, reliable joints. By mastering these skills, you can tackle a wide range of electronic projects with confidence.

In conclusion, soldering is a critical skill in electronics that requires a solid understanding of the solder melting temperature and the proper techniques. By choosing the right solder and soldering iron, preparing your workspace, and following the correct soldering process, you can achieve strong, reliable joints. Avoiding common mistakes and exploring advanced techniques can further enhance your soldering skills and open up new possibilities for your projects. With practice and patience, you can master the art of soldering and create high-quality electronic devices.
