Embarking on a journey to harness solar energy is an exciting venture that can significantly reduce your carbon footprint and lower energy bills. One of the critical aspects of setting up a solar power system is understanding solar panel wiring. Proper wiring ensures that your solar panels operate efficiently and safely, maximizing the energy output and longevity of your system.
Understanding Solar Panel Wiring
Solar panel wiring involves connecting solar panels to an inverter, which converts the direct current (DC) produced by the panels into alternating current (AC) that can be used in your home. The wiring process can be complex, but with the right knowledge and tools, it can be managed effectively. Here are the key components and steps involved in solar panel wiring:
Key Components of Solar Panel Wiring
Before diving into the wiring process, it's essential to familiarize yourself with the key components:
- Solar Panels: These are the devices that convert sunlight into electrical energy.
- Inverter: This device converts DC power from the solar panels into AC power for household use.
- Charge Controller: This regulates the voltage and current from the solar panels to the batteries, preventing overcharging.
- Batteries: These store excess energy produced by the solar panels for use when sunlight is not available.
- Wiring and Connectors: These include cables, connectors, and fuses that ensure safe and efficient power transmission.
Steps in Solar Panel Wiring
Here is a step-by-step guide to solar panel wiring:
Step 1: Plan Your System
Before you start wiring, plan your solar power system. Determine the number of solar panels you need, their configuration (series or parallel), and the type of inverter required. Ensure you have all the necessary components and tools.
Step 2: Mount the Solar Panels
Install the solar panels on a suitable location, such as the roof or a ground-mounted rack. Ensure they are securely fastened and positioned to maximize sunlight exposure.
Step 3: Connect the Solar Panels
Connect the solar panels in series or parallel, depending on your system design. In a series configuration, the positive terminal of one panel is connected to the negative terminal of the next. In a parallel configuration, all positive terminals are connected together, and all negative terminals are connected together.
🔧 Note: Always follow the manufacturer's guidelines for connecting solar panels to ensure safety and optimal performance.

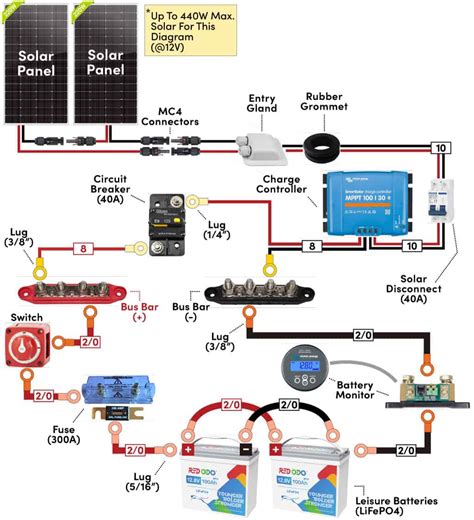

Step 4: Install the Charge Controller
Connect the solar panels to the charge controller. The charge controller regulates the power flow from the panels to the batteries, preventing overcharging and ensuring efficient energy storage.
Step 5: Connect the Batteries
Connect the batteries to the charge controller. Ensure the batteries are properly wired and secured to prevent short circuits and other hazards.
Step 6: Install the Inverter
Connect the batteries to the inverter. The inverter converts the DC power from the batteries into AC power for household use. Ensure the inverter is properly grounded and secured.
Step 7: Final Connections and Testing
Make the final connections between the inverter and your home's electrical system. Ensure all wires are securely fastened and insulated. Test the system to verify that it is functioning correctly and safely.
⚠️ Note: Always follow local electrical codes and regulations when wiring your solar power system. Consult a licensed electrician if you are unsure about any aspect of the wiring process.
Common Solar Panel Wiring Configurations
There are two primary configurations for solar panel wiring: series and parallel. Each configuration has its advantages and disadvantages, and the choice depends on your specific needs and system design.
Series Configuration
In a series configuration, the positive terminal of one solar panel is connected to the negative terminal of the next panel. This configuration increases the voltage while keeping the current constant. Series wiring is ideal for systems that require higher voltage but lower current.
| Advantages | Disadvantages |
|---|---|
| Higher voltage output | If one panel fails, the entire string is affected |
| Simpler wiring | Requires more panels to achieve the same current |
Parallel Configuration

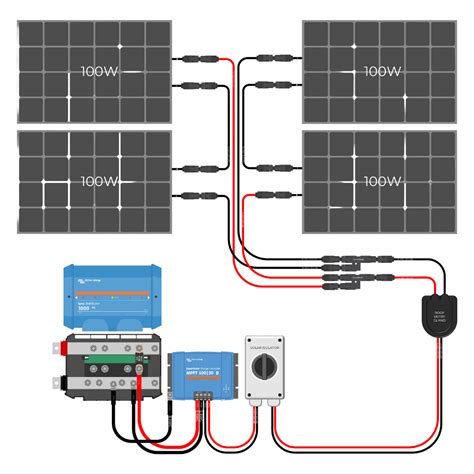

In a parallel configuration, all positive terminals are connected together, and all negative terminals are connected together. This configuration increases the current while keeping the voltage constant. Parallel wiring is ideal for systems that require higher current but lower voltage.
| Advantages | Disadvantages |
|---|---|
| Higher current output | Requires more complex wiring |
| If one panel fails, the others continue to function | Higher voltage drop across wires |
Safety Considerations in Solar Panel Wiring
Safety is paramount when dealing with solar panel wiring. Here are some key safety considerations to keep in mind:
- Use Proper Equipment: Ensure you have the right tools and equipment for the job. This includes insulated gloves, safety glasses, and appropriate wiring tools.
- Follow Manufacturer Guidelines: Always follow the manufacturer's instructions for connecting and wiring solar panels, charge controllers, batteries, and inverters.
- Grounding: Properly ground all components to prevent electrical shocks and ensure safety.
- Insulation: Use insulated wires and connectors to prevent short circuits and electrical hazards.
- Regular Maintenance: Regularly inspect and maintain your solar power system to ensure it remains safe and efficient.
🔧 Note: Always turn off the power supply before working on any electrical components. This includes disconnecting the solar panels from the charge controller and inverter.
Troubleshooting Solar Panel Wiring Issues
Even with careful planning and execution, issues can arise with solar panel wiring. Here are some common problems and their solutions:
Low Voltage Output
If your solar panels are producing lower voltage than expected, check the following:
- Ensure all connections are secure and free of corrosion.
- Verify that the solar panels are properly aligned to maximize sunlight exposure.
- Check for any shading issues that may be reducing the panels' efficiency.
High Voltage Output
If your solar panels are producing higher voltage than expected, check the following:
- Ensure the charge controller is properly regulating the voltage.
- Verify that the wiring configuration is correct (series or parallel).
- Check for any short circuits or faulty components.
No Power Output
If your solar panels are not producing any power, check the following:
- Ensure all connections are secure and properly wired.
- Verify that the inverter and charge controller are functioning correctly.
- Check for any blown fuses or tripped circuit breakers.
⚠️ Note: If you are unsure about any aspect of troubleshooting your solar power system, consult a licensed electrician for assistance.
Conclusion
Understanding solar panel wiring is crucial for setting up an efficient and safe solar power system. By following the steps outlined in this guide, you can ensure that your solar panels are properly connected and functioning optimally. Always prioritize safety and consult a professional if you encounter any issues. With the right knowledge and tools, you can harness the power of the sun to reduce your energy costs and contribute to a greener planet.
