Solar Panel Dimensions

Solar panels have become an increasingly popular choice for homeowners and businesses looking to reduce their carbon footprint and lower energy costs. One of the critical factors to consider when installing solar panels is the solar panel dimensions. Understanding the size and specifications of solar panels is essential for optimizing space and ensuring efficient energy production.

Table of Contents

Understanding Solar Panel Dimensions

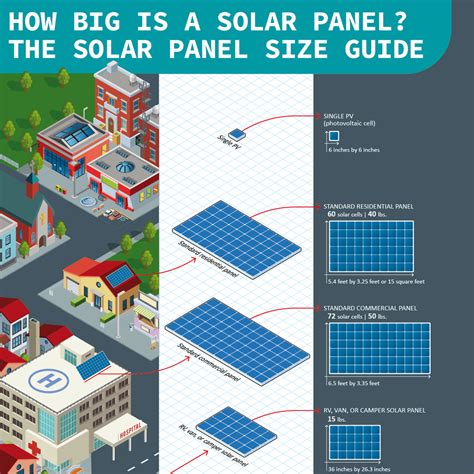

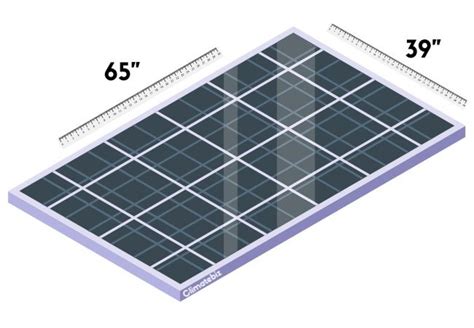

Solar panel dimensions refer to the physical size of the panel, typically measured in inches or centimeters. The most common dimensions for residential solar panels are around 65 inches by 39 inches (165 cm by 99 cm), but these can vary depending on the manufacturer and the type of panel. The dimensions are crucial for determining how many panels can fit on a roof and how much space they will occupy.

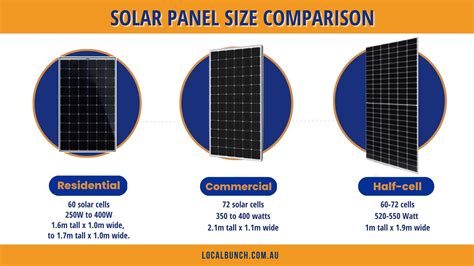

Types of Solar Panels and Their Dimensions

There are several types of solar panels, each with its own set of dimensions. The most common types include:

Monocrystalline Solar Panels: These are known for their high efficiency and sleek black appearance. They typically have dimensions of around 65 inches by 39 inches.
Polycrystalline Solar Panels: These are slightly less efficient than monocrystalline panels but are more cost-effective. Their dimensions are similar to monocrystalline panels, usually around 65 inches by 39 inches.
Thin-Film Solar Panels: These panels are flexible and lightweight, making them suitable for various applications. Their dimensions can vary widely, but they are generally larger in area to compensate for lower efficiency.

Factors Affecting Solar Panel Dimensions

Several factors influence the dimensions of solar panels, including:

Cell Technology: The type of solar cells used in the panel can affect its size. Monocrystalline and polycrystalline panels have different cell structures, which can impact their overall dimensions.
Efficiency: More efficient panels can produce more energy from a smaller surface area, which can result in smaller dimensions.
Manufacturer Specifications: Different manufacturers have their own designs and specifications, which can lead to variations in solar panel dimensions.

Importance of Solar Panel Dimensions in Installation

When planning a solar panel installation, the dimensions of the panels are crucial for several reasons:

Roof Space: The available roof space will determine how many panels can be installed. Accurate measurements of the roof and the solar panel dimensions are essential for maximizing the number of panels.
Weight and Load: The weight of the solar panels and the structural load they impose on the roof must be considered. Larger panels may require additional structural support.
Aesthetics: The appearance of the solar panels on the roof is also important. Larger panels may be more visible and could affect the overall aesthetics of the property.

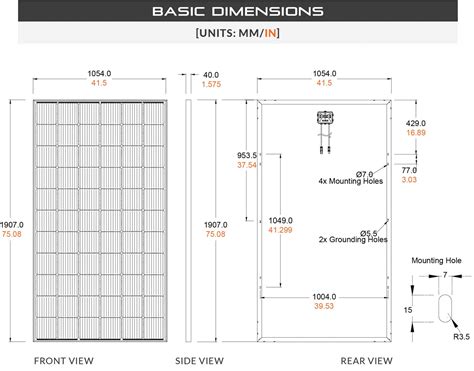

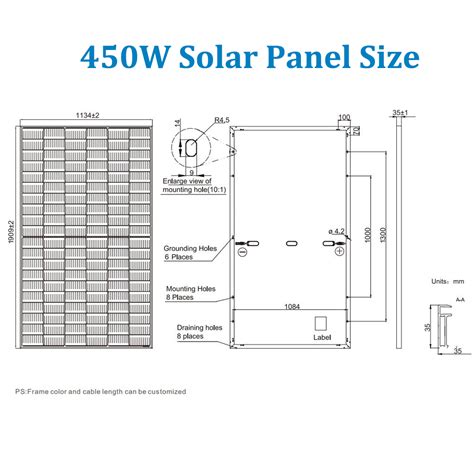

Common Solar Panel Dimensions

Here is a table of common solar panel dimensions for some popular brands:

Manufacturer	Model	Dimensions (inches)	Dimensions (cm)
SunPower	Maxeon 3	61.3 x 41.2	155.7 x 104.6
LG	NeON 2	66.1 x 40.9	168 x 104
Canadian Solar	KuBlack	65.9 x 39.1	167.4 x 99.3
JinkoSolar	Tiger Neo	66.1 x 39.1	168 x 99.3

📏 Note: These dimensions are approximate and can vary slightly based on the specific model and manufacturer.

Measuring Your Roof for Solar Panel Installation

Before installing solar panels, it's essential to measure your roof accurately. Here are the steps to follow:

Measure the Roof Area: Use a tape measure to determine the length and width of the roof area where the panels will be installed.
Calculate the Available Space: Subtract any areas that cannot be used for solar panels, such as chimneys, vents, or skylights.
Determine the Number of Panels: Divide the available roof space by the dimensions of the solar panels to determine how many panels can fit.

For example, if your roof area is 20 feet by 10 feet (240 inches by 120 inches) and you are using panels that are 65 inches by 39 inches, you can calculate the number of panels as follows:

Length: 240 inches / 65 inches = 3.69 panels
Width: 120 inches / 39 inches = 3.08 panels
Total number of panels: 3.69 x 3.08 ≈ 11 panels

📐 Note: Always round down to the nearest whole number when calculating the number of panels to ensure a proper fit.

Optimizing Solar Panel Layout

Optimizing the layout of your solar panels is crucial for maximizing energy production. Here are some tips to consider:

Orientation: Solar panels should be oriented towards the south (in the Northern Hemisphere) to capture the most sunlight throughout the day.
Tilt Angle: The tilt angle of the panels should be adjusted based on your latitude to optimize sunlight exposure.
Shading: Avoid installing panels in areas with significant shading, as this can reduce their efficiency.
Spacing: Ensure there is adequate spacing between panels to allow for ventilation and maintenance.

Conclusion

Understanding solar panel dimensions is a critical aspect of planning and installing a solar energy system. By considering the size, type, and layout of solar panels, you can optimize your roof space and maximize energy production. Whether you are installing monocrystalline, polycrystalline, or thin-film panels, accurate measurements and careful planning will ensure a successful and efficient solar panel installation. Always consult with a professional installer to ensure the best results for your specific needs.
