Soil Site Investigation

Soil site investigation is a critical process in civil engineering and construction projects. It involves the systematic examination of soil properties and conditions at a specific site to ensure the safety and stability of structures. This process is essential for understanding the soil's behavior under various loads and environmental conditions, thereby aiding in the design and construction of buildings, roads, bridges, and other infrastructure.

Table of Contents

Understanding Soil Site Investigation

Soil site investigation is a comprehensive process that includes several key steps. These steps are designed to gather detailed information about the soil's physical, chemical, and mechanical properties. The primary goal is to assess the soil's suitability for construction and to identify any potential issues that could affect the project's success.

Importance of Soil Site Investigation

Conducting a thorough soil site investigation is crucial for several reasons:

Structural Stability: Understanding the soil's bearing capacity helps in designing foundations that can support the weight of the structure without settling or failing.
Cost Efficiency: Accurate soil data can prevent costly mistakes and delays during construction. It helps in optimizing the design and reducing the need for expensive modifications.
Safety: Identifying potential hazards such as soil instability, contamination, or groundwater issues ensures the safety of workers and the long-term integrity of the structure.
Environmental Compliance: Soil site investigation helps in assessing the environmental impact of the project and ensures compliance with local regulations and standards.

Steps Involved in Soil Site Investigation

The process of soil site investigation typically involves the following steps:

Site Reconnaissance

Site reconnaissance is the initial phase where the site is visited to gather preliminary information. This includes:

Visual inspection of the site to identify any visible soil issues.
Reviewing existing maps, aerial photographs, and geological reports.
Collecting information from local residents or previous site users.

Desk Study

A desk study involves reviewing available data and documents related to the site. This may include:

Historical records of the site.
Geological maps and reports.
Previous soil investigation reports.
Environmental impact assessments.

Field Investigation

Field investigation is the most critical phase of soil site investigation. It involves on-site testing and sampling to gather detailed soil data. Common field investigation techniques include:

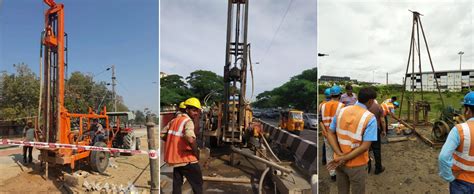

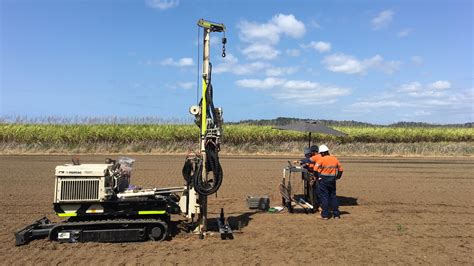

Borehole Drilling: Drilling boreholes to extract soil samples from various depths.
Trial Pits: Excavating small pits to observe soil layers and collect samples.
In-Situ Testing: Conducting tests such as Standard Penetration Test (SPT), Cone Penetration Test (CPT), and Dynamic Cone Penetration Test (DCPT) to assess soil properties.

Laboratory Testing

Laboratory testing involves analyzing soil samples collected during the field investigation. Common laboratory tests include:

Soil Classification: Determining the soil type and classification based on grain size, plasticity, and other properties.
Shear Strength Tests: Measuring the soil's resistance to shear forces.
Compressibility Tests: Assessing the soil's compressibility under load.
Permeability Tests: Evaluating the soil's ability to transmit water.

Data Analysis and Reporting

Data analysis involves interpreting the results of field and laboratory tests to understand the soil's behavior and properties. The findings are then compiled into a comprehensive report that includes:

Detailed description of the soil profile.
Soil properties and parameters.
Recommendations for foundation design and construction methods.
Potential hazards and mitigation strategies.

📝 Note: The soil site investigation report should be prepared by qualified professionals with expertise in geotechnical engineering.

Common Soil Site Investigation Techniques

Several techniques are commonly used in soil site investigation to gather detailed soil data. These techniques can be categorized into invasive and non-invasive methods.

Invasive Techniques

Invasive techniques involve direct contact with the soil and are used to collect samples and conduct in-situ tests. Common invasive techniques include:

Borehole Drilling: Drilling boreholes to extract soil samples from various depths. This method provides detailed information about the soil profile and properties.
Trial Pits: Excavating small pits to observe soil layers and collect samples. This method is useful for shallow investigations and visual inspection of soil conditions.
Standard Penetration Test (SPT): A dynamic penetration test where a split spoon sampler is driven into the soil to measure the resistance to penetration. This test provides information about the soil's density and strength.
Cone Penetration Test (CPT): A static penetration test where a cone-shaped penetrometer is pushed into the soil to measure the resistance to penetration. This test provides continuous data on soil properties.

Non-Invasive Techniques

Non-invasive techniques do not involve direct contact with the soil and are used to gather information about the subsurface conditions without disturbing the soil. Common non-invasive techniques include:

Geophysical Surveys: Using geophysical methods such as seismic refraction, electrical resistivity, and ground-penetrating radar to map subsurface features and soil properties.
Remote Sensing: Using satellite imagery and aerial photography to gather information about the site's topography, vegetation, and other surface features.
Ground-Penetrating Radar (GPR): A non-invasive method that uses radar pulses to image the subsurface. This technique is useful for detecting buried objects, voids, and changes in soil properties.

Challenges in Soil Site Investigation

Soil site investigation can face several challenges that may affect the accuracy and reliability of the results. Some of the common challenges include:

Accessibility: Difficulty in accessing the site due to terrain, vegetation, or other obstacles.
Weather Conditions: Adverse weather conditions such as heavy rainfall, snow, or extreme temperatures can affect the investigation process.
Soil Variability: High variability in soil properties within the site can make it difficult to obtain representative samples and data.
Contamination: Presence of contaminants in the soil can affect the accuracy of test results and require special handling and disposal procedures.
Cost and Time: Soil site investigation can be time-consuming and costly, especially for large or complex sites.

📝 Note: Addressing these challenges requires careful planning, experienced personnel, and appropriate equipment.

Case Studies in Soil Site Investigation

Several case studies highlight the importance of soil site investigation in ensuring the success of construction projects. These case studies demonstrate how thorough soil site investigation can help identify potential issues and provide solutions to mitigate risks.

Case Study 1: High-Rise Building Construction

In a high-rise building construction project, soil site investigation revealed the presence of soft clay layers at shallow depths. This information was crucial in designing deep foundations that could support the weight of the building without excessive settlement. The investigation also identified the need for ground improvement techniques to enhance the soil's bearing capacity.

Case Study 2: Road Construction

During a road construction project, soil site investigation identified areas with high groundwater levels and poor soil stability. This information was used to design appropriate drainage systems and stabilize the soil using geotextiles and other reinforcement materials. The investigation also helped in selecting the optimal road alignment to avoid areas with unstable soil conditions.

Case Study 3: Bridge Construction

In a bridge construction project, soil site investigation revealed the presence of expansive soils that could cause differential settlement and cracking of the bridge deck. The investigation provided recommendations for foundation design and construction methods to mitigate the effects of expansive soils. This included the use of deep foundations and soil stabilization techniques to ensure the long-term stability of the bridge.

Future Trends in Soil Site Investigation

Advancements in technology and methodologies are continuously improving the efficiency and accuracy of soil site investigation. Some of the future trends in soil site investigation include:

Automated Data Collection: Use of automated systems and sensors to collect soil data in real-time, reducing the need for manual sampling and testing.
Advanced Geophysical Techniques: Development of advanced geophysical methods such as 3D seismic imaging and electromagnetic surveys to provide detailed subsurface information.
Remote Sensing and GIS: Integration of remote sensing and Geographic Information Systems (GIS) to map and analyze soil properties over large areas.
Machine Learning and AI: Application of machine learning and artificial intelligence to analyze soil data and predict soil behavior under various conditions.

These trends are expected to enhance the accuracy and reliability of soil site investigation, making it an even more valuable tool in civil engineering and construction projects.

Soil site investigation is a critical process that ensures the safety, stability, and cost-efficiency of construction projects. By understanding the soil’s properties and behavior, engineers can design foundations and structures that can withstand various loads and environmental conditions. The process involves several steps, including site reconnaissance, desk study, field investigation, laboratory testing, and data analysis. Common techniques used in soil site investigation include borehole drilling, trial pits, in-situ testing, and geophysical surveys. Challenges such as accessibility, weather conditions, soil variability, contamination, and cost can be addressed with careful planning and experienced personnel. Case studies demonstrate the importance of soil site investigation in identifying potential issues and providing solutions to mitigate risks. Future trends in soil site investigation, including automated data collection, advanced geophysical techniques, remote sensing, and machine learning, are expected to further enhance the accuracy and reliability of the process.
