Woodworking is an art that combines creativity with precision. Among the many tools that woodworkers rely on, the sliding T bevel stands out as an essential instrument for achieving accurate angles. This versatile tool is indispensable for tasks that require precise angle measurements and transfers. Whether you are a seasoned woodworker or just starting, understanding how to use a sliding T bevel can significantly enhance the quality of your projects.
Understanding the Sliding T Bevel

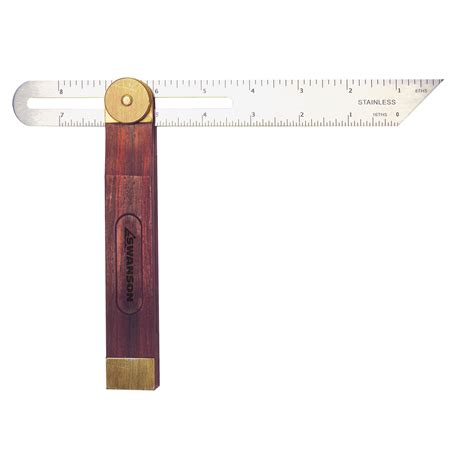

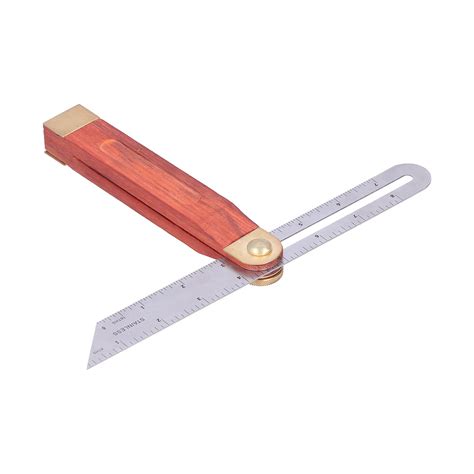

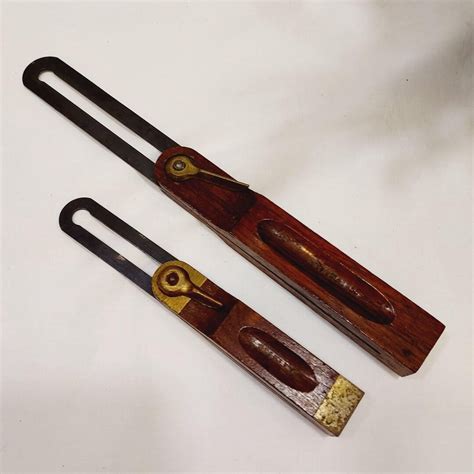

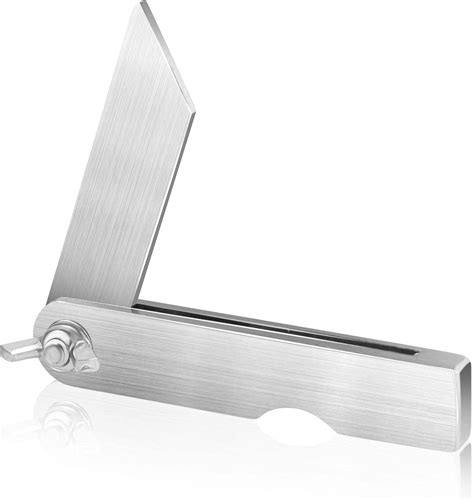

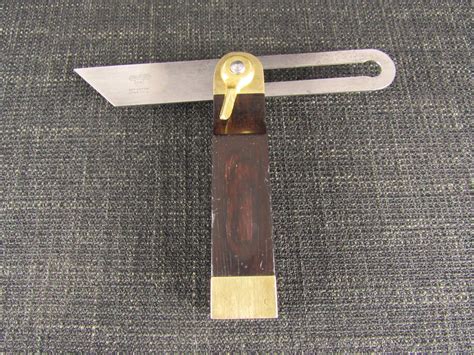

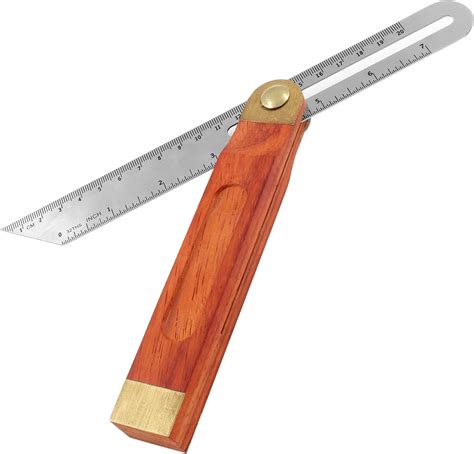

A sliding T bevel is a simple yet powerful tool designed to measure and transfer angles accurately. It consists of a blade and a stock, which can be adjusted to various angles. The blade can slide along the stock, allowing for precise angle settings. This tool is particularly useful for tasks such as marking angles on wood, ensuring that joints fit perfectly, and creating intricate designs.
Components of a Sliding T Bevel
The sliding T bevel is composed of two main parts:
- Blade: This is the movable part of the tool that can be adjusted to different angles. It is typically made of metal and has a sharp edge for marking.
- Stock: This is the fixed part that the blade slides along. It provides stability and support for the blade.
Some sliding T bevels also come with additional features such as a locking mechanism to secure the blade in place once the desired angle is set.
How to Use a Sliding T Bevel
Using a sliding T bevel effectively requires a few simple steps. Here’s a guide to help you get started:
Setting the Angle
To set the angle on a sliding T bevel, follow these steps:
- Loosen the locking mechanism on the stock.
- Adjust the blade to the desired angle by sliding it along the stock.
- Tighten the locking mechanism to secure the blade in place.
Ensure that the blade is firmly locked to prevent any accidental movement during use.
Marking the Angle
Once the angle is set, you can use the sliding T bevel to mark the angle on your workpiece:
- Place the stock of the bevel against the edge of the workpiece.
- Align the blade with the desired marking point.
- Use a pencil or marker to trace along the edge of the blade, creating a precise line.
This method ensures that the angle is accurately transferred to the workpiece.
Transferring the Angle
To transfer an angle from one workpiece to another, follow these steps:
- Place the stock of the bevel against the edge of the workpiece with the known angle.
- Adjust the blade to match the angle.
- Lock the blade in place.
- Move the bevel to the new workpiece and align the stock with the desired edge.
- Trace along the blade to mark the angle on the new workpiece.
This process ensures that the angle is consistently replicated across multiple pieces.
🔧 Note: Always double-check the angle before making any cuts to avoid errors.
Applications of the Sliding T Bevel
The sliding T bevel is a versatile tool with numerous applications in woodworking. Some of the most common uses include:
- Angle Measurement: Accurately measure angles on existing pieces of wood or other materials.
- Angle Transfer: Transfer precise angles from one workpiece to another, ensuring consistency.
- Joint Making: Create perfect joints by marking the necessary angles for miter cuts, dovetail joints, and more.
- Design Work: Use the tool to create intricate designs and patterns that require precise angular measurements.
Maintaining Your Sliding T Bevel
To ensure the longevity and accuracy of your sliding T bevel, proper maintenance is essential. Here are some tips to keep your tool in top condition:
- Cleaning: Regularly clean the blade and stock to remove any dust or debris that could affect its performance.
- Lubrication: Apply a small amount of lubricant to the moving parts to ensure smooth operation.
- Storage: Store the tool in a dry place to prevent rust and damage.
- Inspection: Periodically inspect the tool for any signs of wear or damage and replace parts as needed.
By following these maintenance tips, you can extend the life of your sliding T bevel and ensure it remains a reliable tool in your woodworking arsenal.
🛠️ Note: Avoid exposing the tool to extreme temperatures or moisture, as this can cause damage.
Choosing the Right Sliding T Bevel
When selecting a sliding T bevel, consider the following factors to ensure you get the right tool for your needs:
- Material: Choose a bevel made of high-quality materials such as stainless steel for durability and precision.
- Size: Select a size that suits your projects. Larger bevels are better for bigger workpieces, while smaller ones are more suitable for detailed work.
- Features: Look for additional features such as a locking mechanism, adjustable blade, and a comfortable grip.
- Brand Reputation: Opt for a reputable brand known for producing reliable and accurate tools.
By considering these factors, you can choose a sliding T bevel that meets your specific requirements and enhances your woodworking experience.
Common Mistakes to Avoid
Using a sliding T bevel effectively requires attention to detail. Here are some common mistakes to avoid:
- Improper Locking: Ensure the blade is securely locked in place before making any marks or cuts.
- Incorrect Angle Setting: Double-check the angle setting to avoid errors in your measurements.
- Inaccurate Marking: Use a sharp pencil or marker to make precise marks along the blade.
- Neglecting Maintenance: Regularly clean and maintain your tool to ensure its accuracy and longevity.
By avoiding these mistakes, you can ensure that your sliding T bevel remains a reliable and accurate tool in your woodworking projects.
⚠️ Note: Always wear appropriate safety gear, such as gloves and safety glasses, when using woodworking tools.
Advanced Techniques with the Sliding T Bevel
Once you are comfortable with the basics of using a sliding T bevel, you can explore advanced techniques to enhance your woodworking skills. Some advanced uses include:
- Compound Angles: Measure and transfer compound angles for more complex projects.
- Bevel Matching: Match bevels on multiple pieces to create seamless joints.
- Template Making: Use the bevel to create precise templates for repetitive tasks.
These advanced techniques can help you achieve even greater precision and creativity in your woodworking projects.
Comparing the Sliding T Bevel with Other Angle Tools
While the sliding T bevel is a versatile tool, it is not the only option for measuring and transferring angles. Here is a comparison with other common angle tools:
| Tool | Description | Pros | Cons |
|---|---|---|---|
| Sliding T Bevel | A tool with a movable blade and stock for measuring and transferring angles. | Versatile, accurate, easy to use. | Requires manual adjustment, may not be suitable for very small angles. |

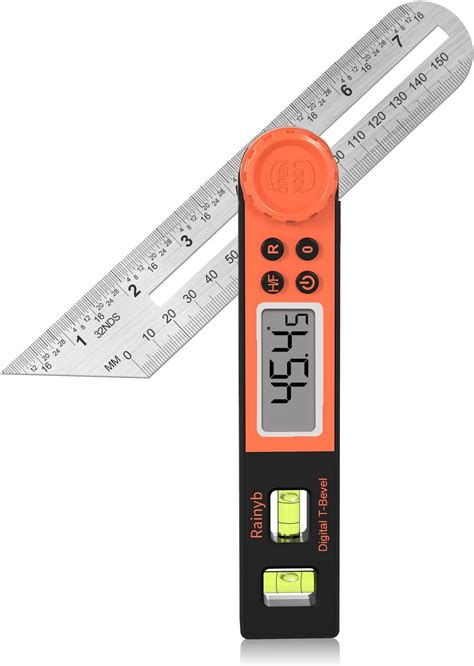

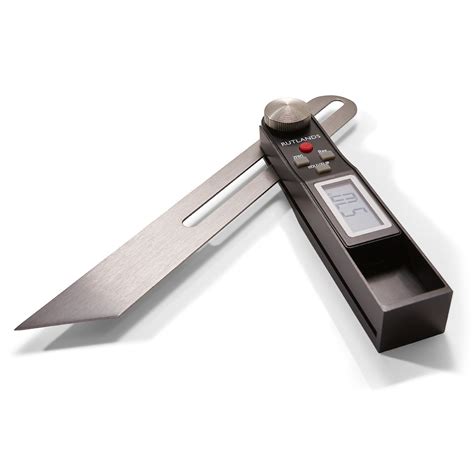

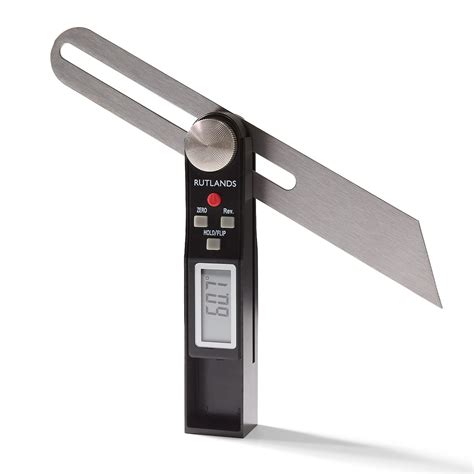

| Digital Angle Finder | An electronic tool that measures angles digitally. | High precision, easy to read, can store measurements. | More expensive, requires batteries. |
| Protractor | A flat, semicircular tool used to measure angles. | Simple to use, inexpensive. | Less accurate for large angles, not suitable for transferring angles. |
Each tool has its own advantages and disadvantages, and the choice depends on your specific needs and preferences.
🛠️ Note: For most woodworking tasks, the sliding T bevel offers a good balance of accuracy and versatility.
In conclusion, the sliding T bevel is an indispensable tool for any woodworker. Its ability to measure and transfer angles accurately makes it a valuable asset in various woodworking projects. By understanding how to use and maintain this tool, you can enhance the precision and quality of your work. Whether you are a beginner or an experienced woodworker, mastering the sliding T bevel can significantly improve your woodworking skills and the overall outcome of your projects.
