Silicon Controlled Switch

In the realm of electronics, the Silicon Controlled Switch (SCS) stands as a pivotal component, bridging the gap between traditional switches and modern semiconductor technology. This device, often referred to as a thyristor, has revolutionized the way we control electrical circuits, offering unparalleled efficiency and reliability. Understanding the intricacies of the Silicon Controlled Switch is essential for anyone delving into the world of electronics, whether for academic purposes or practical applications.

Table of Contents

Understanding the Silicon Controlled Switch

The Silicon Controlled Switch, or SCS, is a type of semiconductor device that acts as a switch, allowing current to flow in one direction when triggered by a control signal. Unlike mechanical switches, which rely on physical contact, the SCS operates electronically, making it faster, more reliable, and less prone to wear and tear. This makes it ideal for applications requiring high-speed switching and precise control.

The basic structure of an SCS includes three layers of semiconductor material, typically silicon, which form a P-N-P or N-P-N junction. The device has three terminals: the anode, the cathode, and the gate. The gate terminal is used to control the switching action. When a small current is applied to the gate, it triggers the device to conduct current from the anode to the cathode, effectively closing the switch. Once triggered, the SCS remains in the conducting state until the current flowing through it drops below a certain threshold, at which point it turns off.

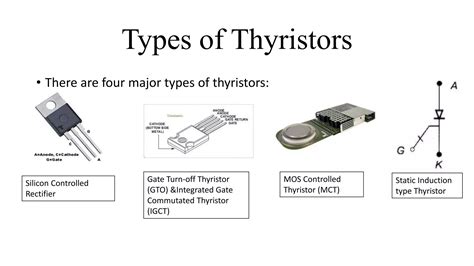

Types of Silicon Controlled Switches

There are several types of Silicon Controlled Switches, each designed for specific applications. The most common types include:

Silicon Controlled Rectifier (SCR): The SCR is the most basic form of SCS and is widely used in rectification and power control applications. It allows current to flow in one direction and can be turned on by a gate signal but requires the current to drop below a holding value to turn off.
Triac: The Triac is a bidirectional SCS that can conduct current in both directions. It is commonly used in AC power control applications, such as dimmer switches and motor speed controls.
Gate Turn-Off Thyristor (GTO): The GTO is an advanced type of SCS that can be turned off by a negative gate current. This makes it suitable for high-power applications where precise control is required.
MOS-Controlled Thyristor (MCT): The MCT combines the characteristics of a MOSFET and a thyristor, offering high-speed switching and low on-state voltage drop. It is used in high-frequency applications and power electronics.

Applications of Silicon Controlled Switches

The versatility of the Silicon Controlled Switch makes it indispensable in a wide range of applications. Some of the key areas where SCSs are commonly used include:

Power Control: SCSs are extensively used in power control circuits to regulate the flow of electrical current. They are found in devices like dimmer switches, motor speed controllers, and heating elements.
Rectification: In power supply circuits, SCSs are used to convert AC to DC. They ensure efficient and reliable rectification, making them essential in electronic devices and industrial equipment.
Inverter Circuits: SCSs play a crucial role in inverter circuits, which convert DC to AC. They are used in solar inverters, UPS systems, and variable frequency drives (VFDs).
Lighting Control: In lighting applications, SCSs are used to control the brightness of lights. They are found in dimmer switches and LED drivers, providing precise control over lighting levels.
Motor Control: SCSs are used in motor control circuits to regulate the speed and direction of electric motors. They are found in industrial machinery, automotive systems, and home appliances.

Advantages of Silicon Controlled Switches

The Silicon Controlled Switch offers several advantages over traditional mechanical switches and other semiconductor devices. Some of the key benefits include:

High Efficiency: SCSs have a low on-state voltage drop, which means they dissipate less power and are more efficient.
Fast Switching: SCSs can switch on and off very quickly, making them suitable for high-frequency applications.
Reliability: Unlike mechanical switches, SCSs do not have moving parts, which makes them more reliable and less prone to failure.
Compact Size: SCSs are small and lightweight, making them ideal for applications where space is a constraint.
Cost-Effective: SCSs are relatively inexpensive to manufacture, making them a cost-effective solution for many applications.

Disadvantages of Silicon Controlled Switches

While the Silicon Controlled Switch offers numerous advantages, it also has some limitations. Understanding these drawbacks is essential for making informed decisions about their use. Some of the key disadvantages include:

Latching Behavior: Once an SCS is turned on, it remains in the conducting state until the current drops below a certain threshold. This latching behavior can be a disadvantage in applications requiring precise control.
Gate Triggering: SCSs require a specific gate current to turn on, which can be a limitation in some applications. Additionally, the gate triggering mechanism can be sensitive to noise and interference.
Reverse Voltage Blocking: Some types of SCSs, such as the SCR, can only block voltage in one direction. This limits their use in AC applications where bidirectional blocking is required.
Thermal Management: SCSs can generate significant heat during operation, which requires effective thermal management to prevent overheating and failure.

Silicon Controlled Switches in Power Electronics

In the field of power electronics, the Silicon Controlled Switch plays a critical role in various applications. Power electronics deals with the conversion and control of electrical power using semiconductor devices. SCSs are used in power converters, inverters, and rectifiers to efficiently manage the flow of electrical energy.

One of the key advantages of using SCSs in power electronics is their ability to handle high voltages and currents. This makes them ideal for applications requiring high power levels, such as electric vehicles, renewable energy systems, and industrial machinery. Additionally, SCSs offer fast switching speeds, which is essential for high-frequency power conversion.

In power converters, SCSs are used to regulate the voltage and current levels. They can step up or step down the voltage, making them suitable for applications requiring different voltage levels. In inverters, SCSs convert DC to AC, which is essential for powering AC loads. In rectifiers, SCSs convert AC to DC, providing a stable power supply for electronic devices.

Table 1: Comparison of Different Types of Silicon Controlled Switches

Type	Characteristics	Applications
SCR	Unidirectional, latching behavior	Rectification, power control
Triac	Bidirectional, latching behavior	AC power control, dimmer switches
GTO	Turn-off capability, high power	High-power applications, motor control
MCT	High-speed switching, low on-state voltage	High-frequency applications, power electronics

🔍 Note: The table above provides a quick comparison of different types of Silicon Controlled Switches, highlighting their characteristics and typical applications.

Design Considerations for Silicon Controlled Switches

When designing circuits that incorporate Silicon Controlled Switches, several factors must be considered to ensure optimal performance and reliability. Some of the key design considerations include:

Voltage and Current Ratings: Select an SCS with voltage and current ratings that match the requirements of the application. Exceeding these ratings can lead to device failure.
Gate Triggering: Ensure that the gate triggering circuit provides the necessary current and voltage to turn on the SCS reliably. Consider using a gate driver circuit for better control.
Thermal Management: Implement effective thermal management techniques to dissipate heat generated by the SCS. This may include using heat sinks, fans, or other cooling methods.
Protection Circuits: Incorporate protection circuits to safeguard the SCS from overvoltage, overcurrent, and short-circuit conditions. This can include snubber circuits, fuses, and current-limiting resistors.
Layout and Wiring: Pay attention to the layout and wiring of the circuit to minimize inductance and capacitance, which can affect the switching performance of the SCS.

Testing and Troubleshooting Silicon Controlled Switches

Testing and troubleshooting Silicon Controlled Switches is essential to ensure they are functioning correctly and to diagnose any issues that may arise. Some common testing and troubleshooting techniques include:

Visual Inspection: Check for any physical damage or signs of overheating on the SCS. Look for burnt marks, discoloration, or other visible defects.
Continuity Test: Use a multimeter to check the continuity between the anode and cathode terminals. In the off state, there should be no continuity, while in the on state, there should be low resistance.
Gate Triggering Test: Apply a gate signal to the SCS and observe if it turns on. Use an oscilloscope to monitor the gate signal and the resulting current flow.
Thermal Imaging: Use a thermal imaging camera to detect hot spots on the SCS and identify areas of excessive heat dissipation.
Protection Circuit Check: Verify that the protection circuits are functioning correctly and providing the necessary safeguards against overvoltage, overcurrent, and short-circuit conditions.

🛠️ Note: Always follow safety guidelines when testing and troubleshooting SCSs, as they can handle high voltages and currents. Use appropriate protective gear and equipment to prevent injuries.

In conclusion, the Silicon Controlled Switch is a versatile and essential component in modern electronics. Its ability to handle high voltages and currents, combined with its fast switching speeds and reliability, makes it ideal for a wide range of applications. From power control and rectification to motor control and lighting, SCSs play a crucial role in various electronic devices and systems. By understanding the types, applications, advantages, and design considerations of SCSs, engineers and enthusiasts can harness their full potential to create innovative and efficient electronic solutions.
