Side Scan Sonar

Underwater exploration has always been a fascinating field, filled with mysteries and discoveries waiting to be uncovered. One of the most powerful tools in this domain is the Side Scan Sonar. This technology has revolutionized the way we explore and map the ocean floor, providing detailed images and data that were once impossible to obtain. Whether used for scientific research, military applications, or commercial purposes, Side Scan Sonar has become an indispensable tool for underwater exploration.

Table of Contents

Understanding Side Scan Sonar

Side Scan Sonar is a type of sonar system that is used to efficiently create an image of large areas of the sea floor. Unlike traditional sonar systems that provide a narrow beam of sound directly beneath the vessel, Side Scan Sonar emits sound waves to the sides of the vessel, creating a wide swath of coverage. This allows for a more comprehensive mapping of the underwater terrain.

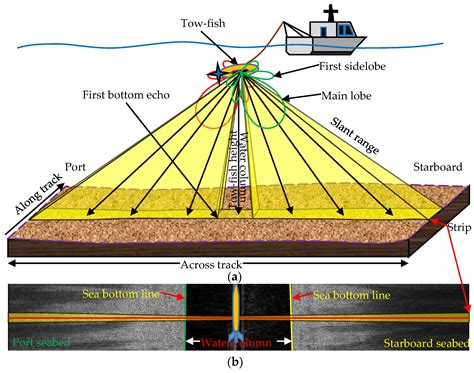

The basic principle behind Side Scan Sonar involves transmitting sound waves from a towed or hull-mounted transducer. These sound waves bounce off the sea floor and any objects in their path, reflecting back to the transducer. The time it takes for the sound waves to return, along with the intensity of the return signal, is used to create a detailed image of the sea floor. This image can reveal various features such as wrecks, geological formations, and underwater structures.

Components of Side Scan Sonar Systems

A typical Side Scan Sonar system consists of several key components:

Transducer: This is the device that emits and receives the sound waves. It is usually towed behind the vessel or mounted on the hull.
Towing Cable: If the transducer is towed, a cable connects it to the vessel, providing power and data transmission.
Processing Unit: This unit processes the data received from the transducer, converting it into a usable image.

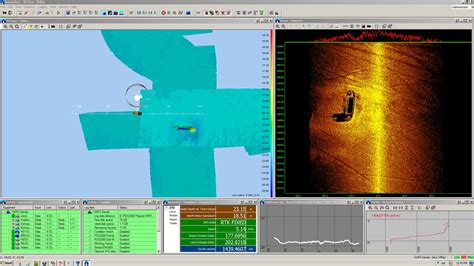

Display Unit: This is where the processed image is displayed, allowing operators to interpret the data in real-time.

Applications of Side Scan Sonar

The versatility of Side Scan Sonar makes it suitable for a wide range of applications. Some of the most common uses include:

Scientific Research: Side Scan Sonar is used by marine scientists to map the ocean floor, study geological formations, and monitor underwater ecosystems.
Military Operations: In military applications, Side Scan Sonar is used for mine detection, underwater surveillance, and mapping of potential threat areas.
Commercial Use: The commercial sector utilizes Side Scan Sonar for tasks such as pipeline and cable route surveys, dredging operations, and environmental impact assessments.
Archaeological Exploration: Archaeologists use Side Scan Sonar to locate and map underwater archaeological sites, including shipwrecks and ancient structures.

Advantages of Side Scan Sonar

Side Scan Sonar offers several advantages over other underwater mapping technologies:

Wide Coverage: The ability to cover a wide swath of the sea floor in a single pass makes Side Scan Sonar highly efficient.
High Resolution: The detailed images produced by Side Scan Sonar provide a high level of resolution, allowing for the identification of small objects and fine details.
Real-Time Data: Many Side Scan Sonar systems provide real-time data, enabling operators to make immediate decisions and adjustments.
Versatility: Side Scan Sonar can be used in a variety of underwater environments, from shallow coastal waters to deep-sea trenches.

Challenges and Limitations

While Side Scan Sonar is a powerful tool, it also has its challenges and limitations:

Water Clarity: The effectiveness of Side Scan Sonar can be affected by water clarity. Turbid or murky water can reduce the quality of the images produced.
Depth Limitations: Although Side Scan Sonar can operate at various depths, extremely deep waters may require specialized equipment and techniques.
Interference: Other underwater sound sources, such as marine life or man-made noise, can interfere with the sonar signals, affecting the quality of the data.

🔍 Note: To mitigate these challenges, it is essential to use high-quality equipment and follow best practices for data collection and processing.

Case Studies: Real-World Applications of Side Scan Sonar

To better understand the practical applications of Side Scan Sonar, let's explore a few case studies:

Marine Archaeology

In the field of marine archaeology, Side Scan Sonar has been instrumental in the discovery and mapping of numerous shipwrecks. For example, the discovery of the Titanic wreckage was aided by Side Scan Sonar technology, which provided detailed images of the debris field and the ship's remains. This allowed researchers to study the wreckage and gain insights into the events surrounding the tragedy.

Environmental Monitoring

Environmental scientists use Side Scan Sonar to monitor underwater ecosystems and assess the impact of human activities. For instance, Side Scan Sonar has been used to map coral reefs, track changes in underwater topography, and identify areas affected by pollution or other environmental hazards. This information is crucial for developing conservation strategies and protecting marine environments.

Military and Defense

In military applications, Side Scan Sonar is used for mine detection and underwater surveillance. For example, during the Gulf War, Side Scan Sonar was employed to locate and neutralize underwater mines, ensuring the safety of naval vessels and personnel. The technology's ability to provide real-time data and high-resolution images makes it an invaluable tool for military operations.

Future Trends in Side Scan Sonar Technology

The field of Side Scan Sonar technology is continually evolving, with advancements aimed at improving accuracy, efficiency, and versatility. Some of the emerging trends include:

Autonomous Systems: The integration of autonomous underwater vehicles (AUVs) with Side Scan Sonar systems allows for more efficient and safer data collection, especially in hazardous or remote areas.
Advanced Processing Algorithms: New processing algorithms are being developed to enhance the quality of sonar images, reduce noise, and improve data interpretation.
Multi-Beam Sonar Integration: Combining Side Scan Sonar with multi-beam sonar systems provides a more comprehensive view of the underwater environment, offering both high-resolution images and detailed bathymetric data.

These advancements are expected to further enhance the capabilities of Side Scan Sonar, making it an even more powerful tool for underwater exploration and research.

As we continue to explore the depths of the ocean, Side Scan Sonar will undoubtedly play a crucial role in uncovering its mysteries and understanding its complexities. From scientific research to military applications, this technology has proven its value time and time again. By embracing the latest advancements and addressing the challenges, we can ensure that Side Scan Sonar remains a cornerstone of underwater exploration for years to come.

In conclusion, Side Scan Sonar has revolutionized the way we explore and map the ocean floor. Its ability to provide detailed images and data has made it an indispensable tool for various applications, from scientific research to military operations. As technology continues to advance, the future of Side Scan Sonar looks promising, with new developments aimed at enhancing its capabilities and expanding its uses. By leveraging this powerful tool, we can gain a deeper understanding of the underwater world and unlock its many secrets.
