Si Unit Farad

Capacitance is a fundamental concept in electronics, representing the ability of a system to store an electric charge. The unit used to measure capacitance is the Si Unit Farad, named after the English physicist Michael Faraday. Understanding the Farad and its applications is crucial for anyone involved in electronics, from hobbyists to professional engineers.

Table of Contents

What is a Farad?

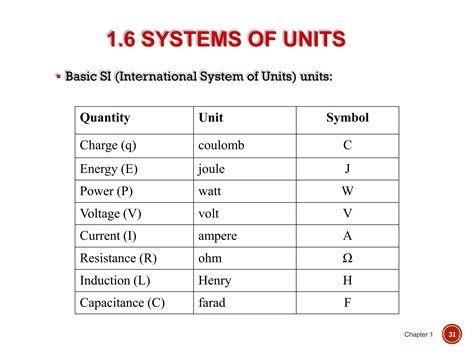

The Farad is the standard unit of capacitance in the International System of Units (SI). It is defined as the capacitance of a capacitor that has a charge of one coulomb when a potential difference of one volt is applied across its plates. In simpler terms, a one Farad capacitor can store one coulomb of charge with a voltage of one volt across its terminals.

Understanding Capacitance

Capacitance is the measure of the amount of electric charge stored (or separated) for a given electric potential. It is a property of a system of conductors and dielectrics that can store energy in the form of an electric field. The formula for capacitance © is given by:

C = Q / V

Where:

C is the capacitance in Farads
Q is the charge in Coulombs
V is the voltage in Volts

Types of Capacitors

Capacitors come in various types, each with its own characteristics and applications. Some of the most common types include:

Ceramic Capacitors: Known for their high stability and low cost, these are often used in high-frequency applications.
Electrolytic Capacitors: These have a high capacitance-to-volume ratio and are commonly used in power supply circuits.
Tantalum Capacitors: Offering high capacitance and stability, these are used in applications requiring precise filtering.
Film Capacitors: Known for their stability and low loss, these are used in high-frequency and high-voltage applications.

Applications of Capacitors

Capacitors are used in a wide range of applications due to their ability to store and release electrical energy. Some key applications include:

Power Supply Filtering: Capacitors are used to smooth out the rectified AC voltage in power supplies.
Signal Coupling: They are used to pass AC signals while blocking DC signals.
Energy Storage: Capacitors can store energy and release it quickly, making them useful in applications like flash photography.
Timing Circuits: In combination with resistors, capacitors are used to create timing circuits in oscillators and filters.

Calculating Capacitance

To calculate the capacitance of a capacitor, you need to know the area of the plates (A), the distance between the plates (d), and the permittivity of the dielectric material (ε). The formula for the capacitance of a parallel-plate capacitor is:

C = ε * (A / d)

Where:

ε is the permittivity of the dielectric material
A is the area of the plates
d is the distance between the plates

For example, if you have a parallel-plate capacitor with an area of 0.01 square meters, a plate separation of 0.001 meters, and a dielectric with a permittivity of 8.85 x 10^-12 Farads per meter (the permittivity of free space), the capacitance would be:

C = 8.85 x 10^-12 * (0.01 / 0.001) = 8.85 x 10^-11 Farads

Series and Parallel Capacitors

Capacitors can be connected in series or parallel to achieve different capacitance values. When capacitors are connected in series, the total capacitance (C_total) is given by:

1 / C_total = 1 / C1 + 1 / C2 + … + 1 / Cn

When capacitors are connected in parallel, the total capacitance is simply the sum of the individual capacitances:

C_total = C1 + C2 + … + Cn

Practical Examples of Capacitors in Use

Capacitors are ubiquitous in electronic circuits. Here are a few practical examples:

Decoupling Capacitors: These are used to reduce noise and ripple in power supply lines, ensuring stable operation of integrated circuits.
Bypass Capacitors: These are used to provide a low-impedance path for high-frequency signals, preventing them from interfering with other parts of the circuit.
Coupling Capacitors: These are used to pass AC signals while blocking DC signals, allowing for signal isolation between different stages of a circuit.

Important Considerations for Capacitor Selection

When selecting a capacitor for a specific application, several factors must be considered:

Voltage Rating: Ensure the capacitor can handle the maximum voltage in the circuit.
Capacitance Value: Choose a capacitor with the appropriate capacitance for the application.
Tolerance: Consider the tolerance of the capacitor to ensure it meets the required specifications.
Temperature Range: Ensure the capacitor can operate within the required temperature range.
Dielectric Material: Different dielectric materials have different properties, such as stability, loss, and temperature coefficient.

🔍 Note: Always refer to the datasheet of the capacitor for specific details and ratings.

Capacitor Failure Modes

Capacitors can fail in various ways, and understanding these failure modes is crucial for troubleshooting and reliability. Some common failure modes include:

Leakage Current: Excessive current flowing through the dielectric, leading to reduced capacitance and increased power consumption.
Dielectric Breakdown: The dielectric material fails, allowing current to flow directly between the plates, resulting in a short circuit.
Dry Out: In electrolytic capacitors, the electrolyte can dry out over time, leading to increased equivalent series resistance (ESR) and reduced capacitance.
Swelling: In electrolytic capacitors, the case can swell due to gas generation, indicating internal failure.

Testing Capacitors

Testing capacitors is essential to ensure they are functioning correctly. Common methods for testing capacitors include:

Capacitance Measurement: Using a capacitance meter to measure the capacitance value.
ESR Measurement: Measuring the equivalent series resistance to ensure it is within acceptable limits.
Leakage Current Test: Applying a voltage and measuring the leakage current to ensure it is within specifications.
Visual Inspection: Checking for physical signs of failure, such as swelling or leakage.

Capacitor Symbols and Markings

Capacitors have standard symbols and markings that provide information about their value, voltage rating, and tolerance. Understanding these symbols and markings is essential for identifying and selecting the correct capacitor for a circuit.

Here is a table of common capacitor symbols:

Symbol	Description
	Non-polarized capacitor
	Polarized electrolytic capacitor
	Variable capacitor

Capacitor markings typically include the capacitance value, voltage rating, and tolerance. For example, a marking of "104K 25V" indicates a capacitor with a capacitance of 100,000 picofarads (104 pF), a voltage rating of 25 volts, and a tolerance of ±10%.

🔍 Note: Always double-check the markings and datasheet to ensure the correct capacitor is used.

Capacitors in Modern Electronics

In modern electronics, capacitors play a crucial role in various applications, from consumer electronics to industrial systems. Some advanced applications include:

Supercapacitors: These are high-capacitance capacitors used for energy storage in applications like electric vehicles and renewable energy systems.
MLCCs (Multilayer Ceramic Capacitors): These are used in high-frequency applications due to their low inductance and high stability.
Tantalum Polymer Capacitors: These offer high capacitance and low ESR, making them suitable for high-frequency and high-current applications.

Capacitors are essential components in modern electronics, enabling the development of advanced technologies and systems. Understanding their properties, applications, and failure modes is crucial for anyone working in the field of electronics.
