Shell and tube heat exchangers are essential components in various industrial processes, facilitating efficient heat transfer between two fluids. These devices are widely used in industries such as chemical processing, oil refining, and power generation. Understanding the design, operation, and maintenance of a Shell Tube Heat Exchanger is crucial for optimizing performance and ensuring longevity.
Understanding Shell and Tube Heat Exchangers

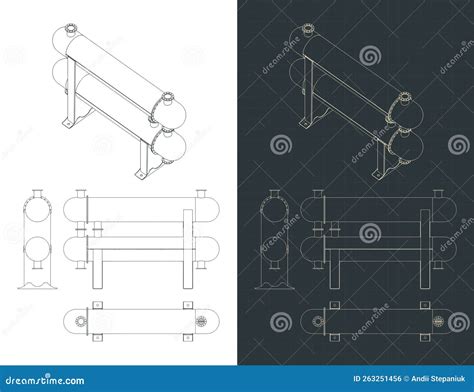

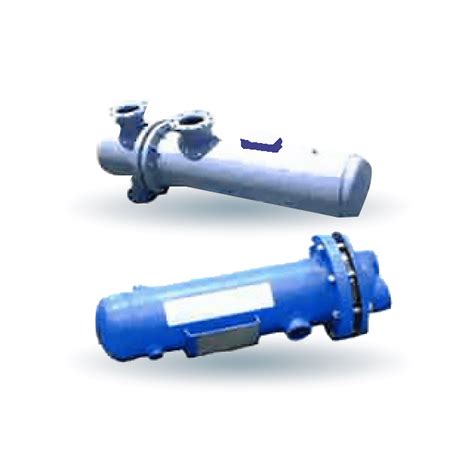

A Shell Tube Heat Exchanger consists of a shell with a bundle of tubes inside it. One fluid flows through the tubes, while the other fluid flows over the tubes within the shell. The heat is transferred from one fluid to the other through the tube walls. This design allows for a large surface area for heat exchange, making it highly efficient.

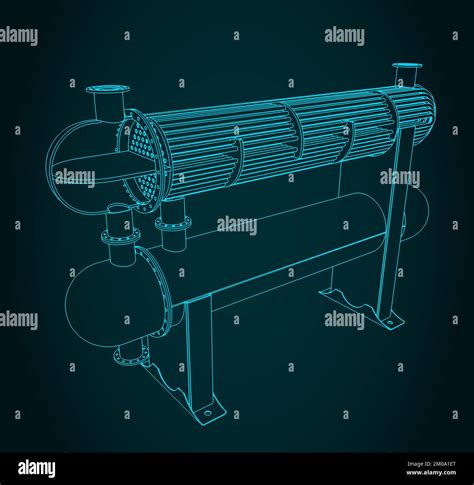

Components of a Shell Tube Heat Exchanger
The primary components of a Shell Tube Heat Exchanger include:
- Shell: The outer casing that contains the tube bundle.
- Tube Bundle: A collection of tubes through which one of the fluids flows.
- Tube Sheets: Plates that support the tubes and separate the tube side fluid from the shell side fluid.
- Baffles: Plates or discs that direct the flow of the shell side fluid across the tube bundle.
- Nozzles: Openings for the inlet and outlet of the fluids.
- Tie Rods and Spacers: Components that hold the tube bundle in place and maintain the spacing between the tubes.
Types of Shell Tube Heat Exchangers
There are several types of Shell Tube Heat Exchangers, each designed for specific applications:
- Fixed Tube Sheet: The tubes are fixed to the tube sheets, which are welded to the shell. This design is simple and cost-effective but does not allow for tube cleaning.
- U-Tube: The tubes are bent into a U-shape and fixed at one end. This design allows for thermal expansion and easy cleaning of the tube side.
- Floating Head: One tube sheet is floating, allowing for thermal expansion and easy cleaning of both the tube and shell sides.
Design Considerations
Designing a Shell Tube Heat Exchanger involves several key considerations to ensure optimal performance:
- Heat Transfer Coefficient: The efficiency of heat transfer depends on the thermal conductivity of the materials and the flow rates of the fluids.
- Pressure Drop: The pressure loss across the exchanger should be minimized to reduce pumping costs.
- Material Selection: The materials used for the shell, tubes, and other components must be compatible with the fluids and operating conditions.
- Fouling Factors: The tendency of fluids to deposit solids on the heat transfer surfaces can reduce efficiency over time.
Operation and Maintenance
Proper operation and maintenance are crucial for the longevity and efficiency of a Shell Tube Heat Exchanger. Regular inspections and cleaning can prevent fouling and ensure optimal performance. Key maintenance tasks include:
- Inspecting for leaks and corrosion.
- Cleaning the tube bundle to remove deposits.
- Checking the condition of gaskets and seals.
- Monitoring the pressure drop across the exchanger.
🔧 Note: Regular maintenance schedules should be established based on the specific operating conditions and fluid properties.
Applications of Shell Tube Heat Exchangers
Shell Tube Heat Exchangers are used in a wide range of industries due to their efficiency and versatility. Some common applications include:
- Chemical Processing: Used for heating and cooling process fluids.
- Oil Refining: Employed in various stages of the refining process, such as cooling and condensing.
- Power Generation: Utilized in steam generators and condensers.
- Food and Beverage: Used for pasteurization and sterilization processes.
- HVAC Systems: Employed in heating and cooling systems for buildings.
Efficiency and Performance Optimization
Optimizing the efficiency of a Shell Tube Heat Exchanger involves several strategies:
- Flow Rate Adjustment: Adjusting the flow rates of the fluids can improve heat transfer efficiency.
- Baffle Design: Optimizing the design and spacing of baffles can enhance fluid distribution and heat transfer.
- Material Selection: Choosing materials with high thermal conductivity can improve heat transfer.
- Cleaning and Maintenance: Regular cleaning and maintenance can prevent fouling and ensure optimal performance.
Additionally, advanced techniques such as computational fluid dynamics (CFD) can be used to simulate and optimize the design of Shell Tube Heat Exchangers. CFD analysis can help identify areas of inefficiency and suggest improvements to enhance performance.
Common Issues and Troubleshooting
Despite their robustness, Shell Tube Heat Exchangers can encounter various issues. Common problems and their troubleshooting steps include:
- Fouling: Regular cleaning and the use of antifouling coatings can mitigate this issue.
- Corrosion: Selecting corrosion-resistant materials and applying protective coatings can prevent corrosion.
- Leaks: Regular inspections and timely repairs can address leaks and prevent further damage.
- Pressure Drop: Monitoring and adjusting flow rates can help maintain optimal pressure conditions.
Troubleshooting these issues often involves a combination of regular maintenance, material selection, and operational adjustments. Advanced diagnostic tools, such as thermal imaging and ultrasonic testing, can also be employed to identify and address problems early.
Future Trends in Shell Tube Heat Exchanger Technology
The field of heat exchanger technology is continually evolving, driven by the need for greater efficiency and sustainability. Some emerging trends in Shell Tube Heat Exchanger technology include:
- Advanced Materials: The development of new materials with enhanced thermal conductivity and corrosion resistance.
- Smart Sensors: Integration of smart sensors for real-time monitoring and predictive maintenance.
- Energy Efficiency: Design innovations aimed at reducing energy consumption and improving overall efficiency.
- Sustainable Designs: Emphasis on eco-friendly materials and designs that minimize environmental impact.
These advancements are poised to enhance the performance and longevity of Shell Tube Heat Exchangers, making them even more integral to various industrial processes.
In conclusion, Shell Tube Heat Exchangers are indispensable in numerous industrial applications, offering efficient heat transfer solutions. Understanding their design, operation, and maintenance is essential for optimizing performance and ensuring reliability. By addressing common issues and embracing future trends, industries can continue to benefit from the advancements in Shell Tube Heat Exchanger technology.
