In the realm of industrial processes, the Shell And Heat Exchanger stands as a cornerstone technology, facilitating efficient heat transfer between two fluids. These devices are ubiquitous in various industries, including chemical processing, oil refining, and power generation. Understanding the principles, types, and applications of Shell And Heat Exchangers is crucial for optimizing industrial operations and ensuring energy efficiency.
Understanding Shell And Heat Exchangers

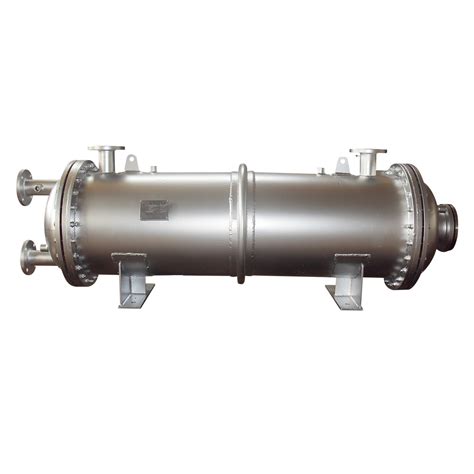

A Shell And Heat Exchanger is a type of heat exchanger designed to transfer heat between two fluids. It consists of a shell (a large pressure vessel) with a bundle of tubes inside it. One fluid runs through the tubes, while the other fluid flows over the tubes within the shell. This design allows for efficient heat transfer between the two fluids, making it ideal for various industrial applications.
Types of Shell And Heat Exchangers
Shell And Heat Exchangers come in various configurations, each suited to different applications. The most common types include:
- Fixed Tube Sheet Exchangers: These have straight tubes that are fixed to the tube sheet at both ends. They are simple and cost-effective but can be difficult to clean.

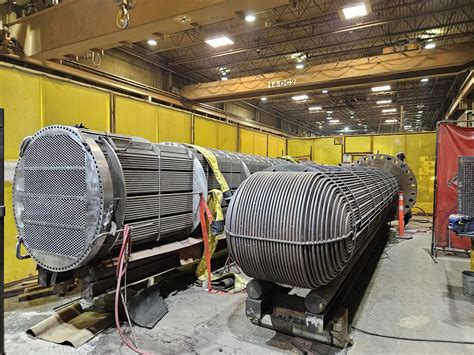

- U-Tube Exchangers: These feature U-shaped tubes that are fixed at one end, allowing for easier cleaning and maintenance. They are suitable for applications with significant temperature differences.
- Floating Head Exchangers: These have a floating tube sheet that can move axially, accommodating thermal expansion and contraction. They are ideal for high-pressure applications.
Components of a Shell And Heat Exchanger

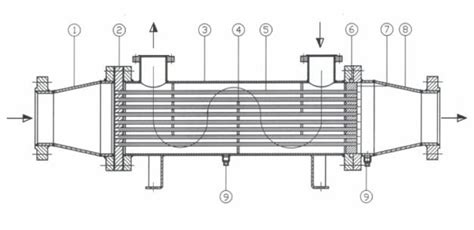

A typical Shell And Heat Exchanger consists of several key components:

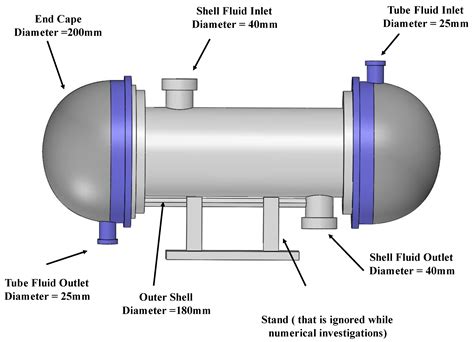

- Shell: The outer vessel that contains the tube bundle.
- Tube Bundle: A collection of tubes through which one fluid flows.
- Tube Sheets: Plates that support the tubes and separate the shell-side fluid from the tube-side fluid.
- Baffles: Plates or discs that direct the flow of the shell-side fluid, enhancing heat transfer.
- Nozzles: Openings for the inlet and outlet of fluids.
- Tie Rods and Spacers: Components that hold the tube bundle in place and maintain the correct spacing between tubes.
Applications of Shell And Heat Exchangers
Shell And Heat Exchangers are used in a wide range of industries due to their efficiency and versatility. Some of the key applications include:
- Chemical Processing: Used for heating and cooling processes in chemical reactors and distillation columns.
- Oil Refining: Essential for heating crude oil and cooling refined products.
- Power Generation: Utilized in steam generators and condensers in power plants.
- Food and Beverage: Employed for pasteurization, sterilization, and cooling processes.
- HVAC Systems: Used in heating, ventilation, and air conditioning systems for heat recovery.
Design Considerations for Shell And Heat Exchangers
Designing an effective Shell And Heat Exchanger involves several critical considerations:
- Heat Transfer Coefficient: The efficiency of heat transfer between the fluids.
- Pressure Drop: The loss of pressure as fluids flow through the exchanger.
- Material Selection: Choosing materials that can withstand the operating conditions and are compatible with the fluids.
- Fouling: The buildup of deposits on the heat transfer surfaces, which can reduce efficiency.
- Thermal Expansion: Accommodating the expansion and contraction of materials due to temperature changes.
Designers must also consider the specific requirements of the application, such as the flow rates, temperatures, and pressures of the fluids involved.
Maintenance and Cleaning of Shell And Heat Exchangers
Regular maintenance and cleaning are essential to ensure the optimal performance of a Shell And Heat Exchanger. Key maintenance tasks include:
- Inspection: Regularly inspecting the exchanger for signs of wear, corrosion, or leaks.
- Cleaning: Removing fouling deposits from the heat transfer surfaces to maintain efficiency.
- Repair: Addressing any damage or issues identified during inspections.
- Replacement: Replacing worn-out components, such as gaskets or tubes, as needed.
Cleaning methods can vary depending on the type of fouling and the design of the exchanger. Common techniques include:
- Chemical Cleaning: Using chemicals to dissolve and remove deposits.
- Mechanical Cleaning: Physically removing deposits using tools or high-pressure water jets.
- Hydroblasting: Using high-pressure water to clean the interior surfaces.
🔧 Note: Regular maintenance and cleaning can extend the lifespan of a Shell And Heat Exchanger and improve its overall efficiency.
Efficiency and Performance Optimization
Optimizing the efficiency and performance of a Shell And Heat Exchanger involves several strategies:
- Proper Sizing: Ensuring the exchanger is appropriately sized for the application to avoid underperformance or excessive pressure drop.
- Material Selection: Choosing materials with high thermal conductivity and corrosion resistance.
- Flow Distribution: Ensuring even distribution of fluids to maximize heat transfer.
- Baffle Design: Optimizing baffle design to enhance turbulence and heat transfer.
- Regular Maintenance: Conducting regular inspections and cleaning to prevent fouling and maintain efficiency.
Additionally, advanced techniques such as computational fluid dynamics (CFD) can be used to simulate and optimize the flow and heat transfer within the exchanger.
Case Studies and Real-World Applications
To illustrate the practical applications of Shell And Heat Exchangers, consider the following case studies:
Chemical Processing Plant
A chemical processing plant uses a Shell And Heat Exchanger to cool a hot reaction product from 200°C to 80°C. The exchanger is designed with a U-tube configuration to handle the high-temperature difference and ensure efficient heat transfer. Regular maintenance, including chemical cleaning, is performed to prevent fouling and maintain performance.
Oil Refinery
In an oil refinery, a Shell And Heat Exchanger is used to heat crude oil from 50°C to 150°C before it enters the distillation column. The exchanger features a floating head design to accommodate thermal expansion and contraction. The refinery implements a scheduled maintenance program to inspect and clean the exchanger, ensuring reliable operation.
Power Plant
A power plant utilizes a Shell And Heat Exchanger in its steam generator to transfer heat from the combustion gases to the water, producing steam for the turbines. The exchanger is designed with a fixed tube sheet configuration and includes baffles to enhance heat transfer. Regular inspections and repairs are conducted to address any issues and maintain efficiency.
Future Trends in Shell And Heat Exchanger Technology
The field of Shell And Heat Exchanger technology is continually evolving, driven by the need for greater efficiency and sustainability. Some emerging trends include:
- Advanced Materials: The development of new materials with superior thermal conductivity and corrosion resistance.
- Enhanced Designs: Innovative designs that improve heat transfer and reduce pressure drop.
- Smart Monitoring: The use of sensors and IoT technology to monitor performance in real-time and predict maintenance needs.
- Sustainable Practices: Implementing eco-friendly materials and processes to reduce environmental impact.
These advancements are poised to enhance the performance and longevity of Shell And Heat Exchangers, making them even more integral to industrial processes.
In conclusion, Shell And Heat Exchangers play a pivotal role in various industries by facilitating efficient heat transfer between fluids. Understanding their types, components, applications, and maintenance requirements is essential for optimizing industrial operations. By embracing advanced technologies and sustainable practices, the future of Shell And Heat Exchangers looks promising, ensuring continued efficiency and reliability in industrial processes.
