Sheet metal bending is a fundamental process in manufacturing and fabrication, essential for creating a wide range of products from automotive parts to architectural components. This process involves deforming a sheet of metal along a straight axis to form a specific angle or shape. Understanding the intricacies of sheet metal bending can significantly enhance the efficiency and quality of your projects.
Understanding Sheet Metal Bending

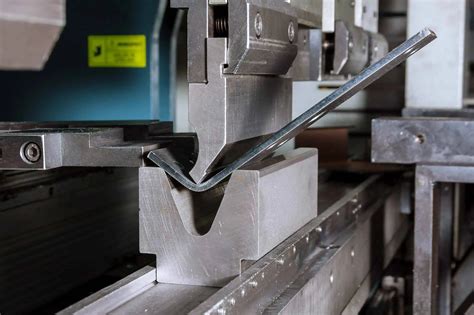

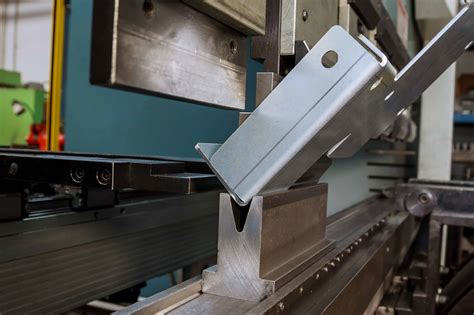

Sheet metal bending is a versatile technique that allows for the creation of various shapes and forms. The process typically involves using a press brake, a machine designed to apply force to the metal sheet, bending it along a predefined line. The key components of a press brake include the frame, the ram, the bed, and the tooling. The tooling consists of a punch and a die, which work together to shape the metal.
There are several types of sheet metal bending processes, each suited to different applications:
- V-Bending: This is the most common type of bending, where the metal is bent along a V-shaped die.
- U-Bending: In this process, the metal is bent into a U-shape using a U-shaped die.
- Air Bending: This method involves bending the metal without bottoming out on the die, allowing for greater flexibility in the bending angle.
- Bottoming: This process involves bending the metal until it fully contacts the die, ensuring a precise and consistent bend.
- Edge Bending: This technique is used to bend the edges of the metal sheet, often for finishing purposes.
Factors Affecting Sheet Metal Bending
Several factors influence the outcome of sheet metal bending, including the material properties, tooling, and machine settings. Understanding these factors can help achieve the desired results and minimize defects.
Material Properties: The type of metal and its thickness significantly impact the bending process. Common materials used in sheet metal bending include:
- Steel
- Aluminum
- Stainless Steel
- Brass
- Copper
Each material has unique properties that affect its bendability, such as yield strength, ductility, and hardness. For example, aluminum is more ductile than steel, making it easier to bend but also more prone to springback.
Tooling: The choice of tooling is crucial for achieving precise and consistent bends. The tooling must be compatible with the material and the desired bend radius. Common tooling types include:
- V-dies
- U-dies
- Gooseneck dies
- Radius dies
Machine Settings: The settings on the press brake, such as the ram speed, tonnage, and back gauge position, must be carefully calibrated to ensure accurate bending. Incorrect settings can lead to defects such as springback, cracking, or uneven bends.
Common Defects in Sheet Metal Bending
Despite careful planning and execution, defects can still occur during sheet metal bending. Recognizing and addressing these defects is essential for maintaining high-quality standards.
Springback: This occurs when the metal returns to its original shape after bending, resulting in an angle smaller than intended. Springback is more pronounced in materials with high yield strength and can be mitigated by over-bending or using a smaller bend radius.
Cracking: Cracking happens when the metal exceeds its ductility limit during bending, leading to fractures along the bend line. This is often due to excessive force or a sharp bend radius. To prevent cracking, use a larger bend radius and ensure the material is within its ductility range.
Uneven Bends: Uneven bends occur when the metal does not bend uniformly along the bend line, resulting in a wavy or irregular shape. This can be caused by improper tooling, incorrect machine settings, or material inconsistencies. To achieve even bends, ensure the tooling is properly aligned and the machine settings are calibrated.
Distortion: Distortion refers to any deformation of the metal sheet outside the intended bend area. This can include warping, twisting, or stretching. Distortion is often caused by uneven force distribution or improper clamping. To minimize distortion, use appropriate clamping techniques and ensure even force application.
Best Practices for Sheet Metal Bending
Adhering to best practices can significantly enhance the quality and efficiency of sheet metal bending. Here are some key practices to follow:
Material Selection: Choose the appropriate material for your application, considering factors such as strength, ductility, and corrosion resistance. Ensure the material is free from defects and within the specified thickness range.
Tooling Selection: Select the right tooling for your material and desired bend radius. Ensure the tooling is in good condition and properly maintained. Regularly inspect and replace worn-out tooling to maintain bending accuracy.
Machine Calibration: Calibrate the press brake settings according to the material and tooling specifications. Regularly check and adjust the ram speed, tonnage, and back gauge position to ensure consistent bending results.
Clamping Techniques: Use appropriate clamping techniques to secure the metal sheet during bending. Ensure even force distribution and avoid excessive clamping pressure to prevent distortion.
Quality Control: Implement a quality control process to inspect the bent parts for defects. Use measurement tools such as calipers, gauges, and angle finders to verify the dimensions and angles of the bent parts.
Safety Measures: Follow safety protocols to protect operators from potential hazards. Ensure proper training, use personal protective equipment, and maintain a clean and organized workspace.
🔧 Note: Always refer to the manufacturer's guidelines for specific instructions on tooling and machine settings.
Applications of Sheet Metal Bending
Sheet metal bending is used in a wide range of industries, from automotive and aerospace to construction and electronics. Some common applications include:
Automotive Industry: Sheet metal bending is extensively used in the automotive industry for manufacturing body panels, chassis components, and structural parts. The process ensures precise and consistent shapes, contributing to the overall quality and safety of vehicles.
Aerospace Industry: In the aerospace industry, sheet metal bending is crucial for creating lightweight and durable components such as aircraft skins, brackets, and structural supports. The high precision and reliability of the bending process are essential for meeting stringent aerospace standards.
Construction Industry: Sheet metal bending is used in the construction industry for fabricating architectural components, such as roofing panels, cladding, and ductwork. The process allows for the creation of custom shapes and sizes, enhancing the aesthetic and functional aspects of buildings.
Electronics Industry: In the electronics industry, sheet metal bending is employed for manufacturing enclosures, brackets, and heat sinks. The process ensures precise dimensions and finishes, protecting electronic components and enhancing their performance.
Manufacturing Industry: Sheet metal bending is a fundamental process in the manufacturing industry, used for producing a variety of products, including appliances, machinery, and consumer goods. The versatility and efficiency of the bending process make it an essential technique for modern manufacturing.
Advanced Techniques in Sheet Metal Bending
As technology advances, so do the techniques used in sheet metal bending. Advanced methods and tools enhance precision, efficiency, and flexibility in the bending process.
Computer-Aided Design (CAD) and Computer-Aided Manufacturing (CAM): CAD and CAM software enable precise design and simulation of sheet metal bending processes. These tools allow engineers to create detailed models, simulate bending operations, and optimize tooling and machine settings for better results.
Laser Bending: Laser bending is an advanced technique that uses a laser beam to heat and bend the metal sheet. This method offers high precision and flexibility, allowing for complex shapes and tight tolerances. Laser bending is particularly useful for thin and delicate materials.
Hydraulic Press Brakes: Hydraulic press brakes use hydraulic cylinders to apply force to the metal sheet, providing consistent and controlled bending. These machines offer high tonnage capabilities and are suitable for bending thick and robust materials.
Servo-Electric Press Brakes: Servo-electric press brakes use electric motors and servo drives to control the bending process. These machines offer precise and repeatable bending, with adjustable ram speeds and positions. Servo-electric press brakes are energy-efficient and environmentally friendly, making them a popular choice for modern manufacturing.
Automated Bending Systems: Automated bending systems integrate robotics and automation technologies to streamline the sheet metal bending process. These systems can handle complex bending tasks, reduce manual labor, and improve overall efficiency. Automated bending systems are ideal for high-volume production and custom manufacturing.
🛠️ Note: Advanced techniques require specialized training and equipment. Ensure proper training and maintenance to maximize the benefits of these technologies.
Future Trends in Sheet Metal Bending
The future of sheet metal bending is shaped by advancements in technology, materials, and manufacturing processes. Emerging trends and innovations are poised to revolutionize the industry, enhancing efficiency, precision, and sustainability.
Industry 4.0 Integration: The integration of Industry 4.0 technologies, such as the Internet of Things (IoT), artificial intelligence (AI), and big data analytics, is transforming sheet metal bending. These technologies enable real-time monitoring, predictive maintenance, and data-driven decision-making, improving overall productivity and quality.
Additive Manufacturing: Additive manufacturing, or 3D printing, is increasingly being used in conjunction with sheet metal bending. This hybrid approach allows for the creation of complex geometries and customized components, combining the strengths of both technologies.
Sustainable Materials: The demand for sustainable materials is driving the development of eco-friendly sheet metal bending processes. Recyclable materials, such as aluminum and stainless steel, are gaining popularity, along with green manufacturing practices that reduce waste and energy consumption.
Advanced Simulation Tools: Advanced simulation tools are enhancing the design and optimization of sheet metal bending processes. These tools enable detailed analysis of material behavior, tooling performance, and machine settings, leading to more accurate and efficient bending operations.
Collaborative Robotics: Collaborative robots, or cobots, are being integrated into sheet metal bending processes to enhance flexibility and productivity. Cobots work alongside human operators, performing repetitive tasks and improving overall efficiency. Their compact size and ease of programming make them ideal for small to medium-sized manufacturing operations.
Digital Twins: Digital twins are virtual replicas of physical systems that enable real-time monitoring and optimization. In sheet metal bending, digital twins can simulate the entire manufacturing process, from design to production, allowing for predictive maintenance, quality control, and process improvement.
🌟 Note: Staying updated with the latest trends and technologies is crucial for maintaining a competitive edge in the sheet metal bending industry.
Sheet metal bending is a critical process in modern manufacturing, offering versatility, precision, and efficiency. Understanding the fundamentals, best practices, and advanced techniques of sheet metal bending can significantly enhance the quality and productivity of your projects. By embracing emerging trends and technologies, you can stay ahead in the ever-evolving landscape of sheet metal fabrication.
