Shed Roof Framing

Building a shed can be a rewarding DIY project, but one of the most critical aspects is the shed roof framing. Proper shed roof framing ensures the structural integrity and longevity of your shed. Whether you're building a simple lean-to or a more complex gable roof, understanding the basics of shed roof framing is essential. This guide will walk you through the steps and considerations for shed roof framing, helping you create a sturdy and reliable roof for your shed.

Table of Contents

Understanding Different Types of Shed Roofs

Before diving into the framing process, it's important to understand the different types of shed roofs. The design you choose will depend on your specific needs, the climate in your area, and your personal preferences. Here are some common types of shed roofs:

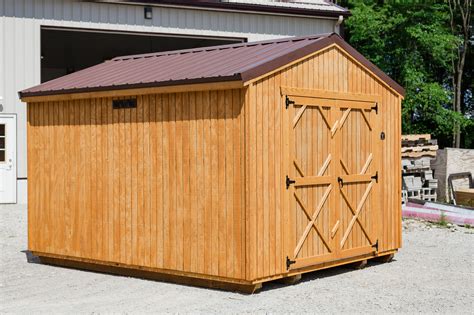

Gable Roof: This is one of the most popular shed roof designs. It features two sloping sides that meet at a ridge, forming a triangular shape. Gable roofs are easy to build and provide good ventilation.

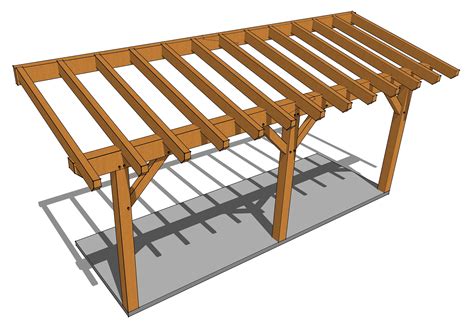

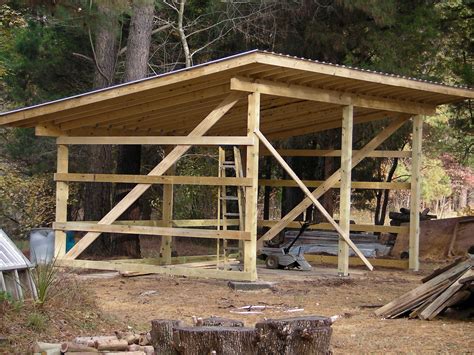

Lean-To Roof: Also known as a skillion roof, this design features a single sloping side. It is simple to construct and works well for small sheds or as an addition to an existing structure.
Hip Roof: This roof has four sloping sides that meet at a ridge. Hip roofs are more complex to build but offer excellent stability and resistance to high winds.
Gambrel Roof: This design features two different slopes on each side, with a steeper lower slope and a gentler upper slope. Gambrel roofs provide more headroom and are often used for barn-style sheds.

Materials Needed for Shed Roof Framing

To begin your shed roof framing project, you'll need the following materials:

Lumber (2x4s, 2x6s, or 2x8s, depending on your design)
Roofing felt or underlayment
Roofing nails or screws
Hammer or drill
Saw (circular saw or handsaw)
Level
Tape measure
Chalk line
Safety glasses
Work gloves

Steps for Shed Roof Framing

The process of shed roof framing can vary depending on the type of roof you choose. Below are the general steps for framing a gable roof, which is one of the most common designs.

1. Measure and Cut the Rafters

The rafters are the sloping beams that support the roof. To measure and cut the rafters:

Determine the length of the rafters based on the width of your shed and the desired pitch of the roof.
Use a framing square to mark the bird's mouth (the notch at the bottom of the rafter that sits on the top plate of the wall).
Cut the rafters to the correct length and angle using a saw.

2. Install the Ridge Board

The ridge board is the horizontal beam that runs along the peak of the roof. To install the ridge board:

Measure and cut a 2x4 or 2x6 board to the length of the shed.
Attach the ridge board to the top of the wall plates using nails or screws.

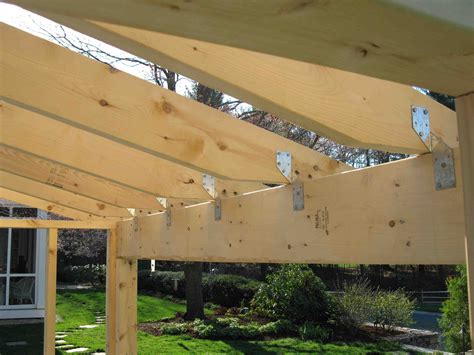

3. Attach the Rafters

Once the ridge board is in place, you can attach the rafters:

Position the rafters so that the bird's mouth sits on the top plate of the wall.
Attach the rafters to the ridge board using nails or screws.
Ensure that the rafters are evenly spaced and level.

4. Install the Purlins

Purlins are horizontal beams that run perpendicular to the rafters and provide additional support. To install the purlins:

Measure and cut 2x4 or 2x6 boards to the length of the shed.
Attach the purlins to the rafters using nails or screws, ensuring they are level and evenly spaced.

5. Add the Roof Sheathing

The roof sheathing is the layer of plywood or oriented strand board (OSB) that covers the rafters and purlins. To add the roof sheathing:

Measure and cut the sheathing to fit the roof.
Attach the sheathing to the rafters and purlins using nails or screws, ensuring it is secure and level.

🛠️ Note: Make sure to leave a small gap between the sheathing boards to allow for expansion and contraction due to changes in temperature and humidity.

Common Mistakes to Avoid in Shed Roof Framing

When framing a shed roof, it's important to avoid common mistakes that can compromise the structural integrity of your shed. Here are some pitfalls to watch out for:

Incorrect Measurements: Double-check all measurements to ensure accuracy. Incorrect measurements can lead to uneven rafters and a poorly fitting roof.
Inadequate Support: Ensure that the rafters and purlins are properly supported. Insufficient support can cause the roof to sag or collapse over time.
Improper Nailing: Use the correct size and type of nails or screws for your shed roof framing. Improper nailing can weaken the structure and lead to leaks.
Ignoring Building Codes: Always follow local building codes and regulations. Ignoring these guidelines can result in fines and potential safety hazards.

Additional Considerations for Shed Roof Framing

In addition to the basic steps and common mistakes, there are several other considerations to keep in mind when framing a shed roof:

Ventilation: Proper ventilation is crucial for preventing moisture buildup and mold growth. Consider adding vents or soffits to your shed roof design.
Insulation: If you plan to use your shed for storage or as a workspace, consider adding insulation to the roof. This can help regulate the temperature and reduce energy costs.
Roofing Materials: Choose the right roofing materials for your shed. Options include asphalt shingles, metal roofing, and rubber roofing. Each has its own advantages and disadvantages, so choose based on your needs and budget.

Here is a table summarizing the key considerations for shed roof framing:

Consideration	Importance	Recommendations
Ventilation	High	Add vents or soffits to prevent moisture buildup.
Insulation	Medium	Consider insulation for temperature regulation and energy efficiency.
Roofing Materials	High	Choose materials based on durability, cost, and aesthetic preferences.

By carefully considering these factors, you can ensure that your shed roof framing is both functional and durable.

Shed roof framing is a critical aspect of building a shed. By understanding the different types of shed roofs, gathering the necessary materials, and following the steps for framing, you can create a sturdy and reliable roof for your shed. Avoiding common mistakes and considering additional factors will further enhance the quality and longevity of your shed roof framing. With proper planning and execution, your shed will provide years of useful service.
