Understanding the behavior of structures under various loads is crucial in civil and structural engineering. One of the fundamental tools used to analyze these behaviors is the Shear Moment Diagrams. These diagrams provide a visual representation of the internal forces acting on a structure, specifically the shear force and bending moment, at any given point along the structure's length. By interpreting these diagrams, engineers can design structures that are safe, efficient, and economical.
Understanding Shear Force and Bending Moment
Before diving into Shear Moment Diagrams, it's essential to understand the concepts of shear force and bending moment.
Shear Force
Shear force is the internal force that acts perpendicular to the cross-section of a beam. It is responsible for causing shear deformation, which can lead to failure if the shear force exceeds the material's shear strength. Shear force is typically denoted by the symbol V and is measured in units of force, such as Newtons (N) or pounds-force (lbf).
Bending Moment
Bending moment is the internal moment that causes a beam to bend. It is the result of forces acting on the beam that create a moment about a point. Bending moment is denoted by the symbol M and is measured in units of force times distance, such as Newton-meters (Nm) or pound-force-feet (lbf-ft).

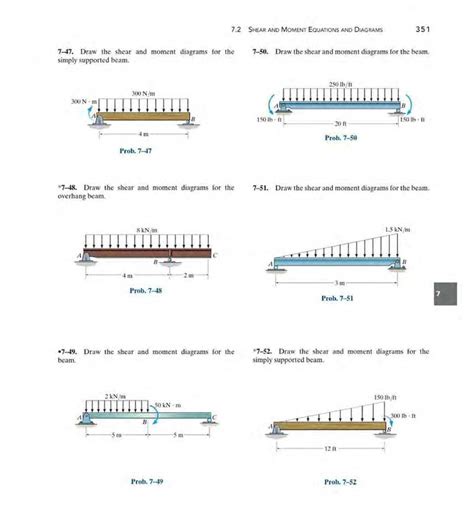

Constructing Shear Moment Diagrams
Constructing Shear Moment Diagrams involves several steps. Here's a step-by-step guide to help you understand the process:

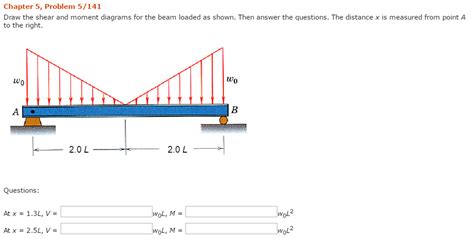

Step 1: Draw the Beam and Loads
Begin by drawing the beam and all the loads acting on it. This includes point loads, distributed loads, and moments. Clearly label the supports and their types (e.g., pinned, roller, fixed).
Step 2: Determine Reactions
Calculate the reactions at the supports using the equations of static equilibrium. For a beam in equilibrium, the sum of the forces in the vertical direction and the sum of the moments about any point must be zero.
Step 3: Calculate Shear Force
To calculate the shear force at any point along the beam, consider a section of the beam to the left of the point and sum the forces acting on it. The shear force at a point is equal to the sum of the vertical forces to the left of that point.
Step 4: Plot Shear Force Diagram
Plot the shear force values against the distance along the beam. The shear force diagram typically consists of straight lines connecting the shear force values at different points. The slope of the shear force diagram at any point is equal to the negative of the distributed load at that point.
Step 5: Calculate Bending Moment
To calculate the bending moment at any point along the beam, consider a section of the beam to the left of the point and sum the moments about that point. The bending moment at a point is equal to the sum of the moments of the forces to the left of that point.
Step 6: Plot Bending Moment Diagram
Plot the bending moment values against the distance along the beam. The bending moment diagram typically consists of straight lines or curves connecting the bending moment values at different points. The slope of the bending moment diagram at any point is equal to the shear force at that point.
💡 Note: The relationship between shear force and bending moment is crucial. The derivative of the bending moment diagram gives the shear force diagram, and the integral of the shear force diagram gives the bending moment diagram.
Interpreting Shear Moment Diagrams
Interpreting Shear Moment Diagrams is essential for understanding the behavior of a structure under load. Here are some key points to consider:
- Maximum Shear Force: The maximum shear force in a beam occurs where the shear force diagram reaches its peak value. This point is critical for designing the beam's cross-section to resist shear failure.
- Maximum Bending Moment: The maximum bending moment in a beam occurs where the bending moment diagram reaches its peak value. This point is critical for designing the beam's cross-section to resist bending failure.
- Points of Inflection: Points of inflection are where the bending moment is zero. These points indicate where the beam changes from sagging to hogging or vice versa.
- Shear Force and Bending Moment Relationship: The relationship between shear force and bending moment is crucial. The derivative of the bending moment diagram gives the shear force diagram, and the integral of the shear force diagram gives the bending moment diagram.
Applications of Shear Moment Diagrams
Shear Moment Diagrams have numerous applications in civil and structural engineering. Some of the key applications include:
- Beam Design: Shear Moment Diagrams are used to design beams by determining the maximum shear force and bending moment, which are then used to select the appropriate beam size and material.
- Bridge Design: In bridge design, Shear Moment Diagrams help engineers understand the internal forces acting on the bridge structure under various loading conditions, such as traffic loads and wind loads.
- Building Design: In building design, Shear Moment Diagrams are used to analyze the internal forces acting on beams, columns, and other structural members under gravity loads, wind loads, and seismic loads.
- Machine Design: In machine design, Shear Moment Diagrams are used to analyze the internal forces acting on shafts, axles, and other rotating members under various loading conditions.
Example: Shear Moment Diagrams for a Simply Supported Beam
Let's consider an example of a simply supported beam with a uniform distributed load. The beam has a length of 10 meters and supports a uniform load of 5 kN/m.
First, we calculate the reactions at the supports:
| Support | Reaction |
|---|---|
| A | 25 kN (upward) |
| B | 25 kN (upward) |
Next, we calculate the shear force and bending moment at various points along the beam:
| Distance from A (m) | Shear Force (kN) | Bending Moment (kN-m) |
|---|---|---|
| 0 | 25 | 0 |
| 2.5 | 12.5 | 31.25 |
| 5 | 0 | 62.5 |
| 7.5 | -12.5 | 31.25 |
| 10 | -25 | 0 |
Finally, we plot the shear force and bending moment diagrams:
💡 Note: The shear force diagram is a straight line with a slope equal to the negative of the distributed load. The bending moment diagram is a parabola with a maximum value at the midpoint of the beam.
By interpreting these diagrams, we can determine the maximum shear force and bending moment, which are crucial for designing the beam's cross-section to resist failure.
Shear Moment Diagrams are a powerful tool for analyzing the internal forces acting on structures. By understanding how to construct and interpret these diagrams, engineers can design structures that are safe, efficient, and economical. Whether you’re designing a beam, a bridge, or a building, Shear Moment Diagrams provide valuable insights into the behavior of structures under various loading conditions.
