The Scotch Yoke Mechanism is a fascinating and versatile mechanical system that has found applications in various industries, from automotive to aerospace. This mechanism is known for its ability to convert rotational motion into linear motion, making it a crucial component in many machines and devices. Understanding the Scotch Yoke Mechanism involves delving into its history, components, working principles, and applications. This blog post aims to provide a comprehensive overview of the Scotch Yoke Mechanism, highlighting its significance and versatility in modern engineering.
History of the Scotch Yoke Mechanism
The Scotch Yoke Mechanism has a rich history that dates back to the early days of mechanical engineering. The mechanism was first patented by James Watt in 1784, who used it in his steam engine designs. Watt’s invention was a significant improvement over previous designs, as it provided a more efficient way to convert rotational motion into linear motion. Over the years, the Scotch Yoke Mechanism has evolved and been adapted for use in various applications, from steam engines to modern-day machinery.

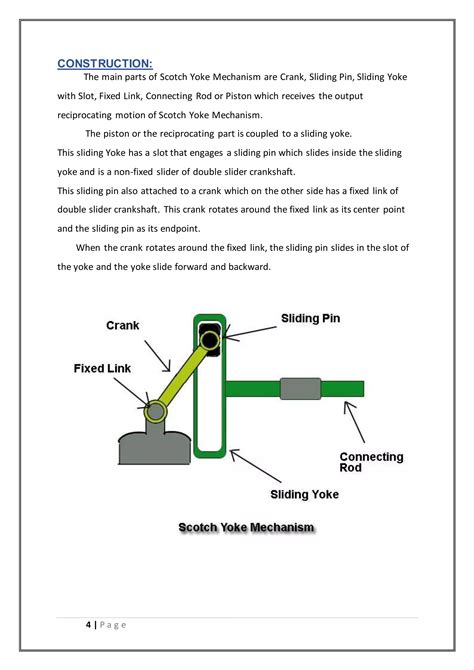

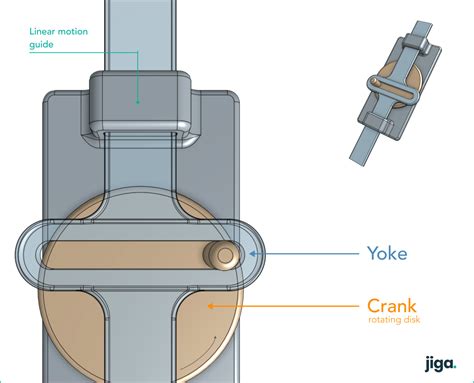

Components of the Scotch Yoke Mechanism
The Scotch Yoke Mechanism consists of several key components that work together to achieve its unique motion conversion. These components include:
- Crankshaft: This is the rotating part of the mechanism that provides the initial rotational motion.
- Yoke: The yoke is a sliding component that converts the rotational motion of the crankshaft into linear motion. It is typically a rectangular or square-shaped piece with a slot or hole that allows it to slide along a guide.
- Slider: The slider is the part that moves linearly along the guide. It is connected to the yoke and moves in response to the yoke’s motion.
- Guide: The guide is a fixed component that provides a path for the slider to move along. It ensures that the slider’s motion is linear and smooth.

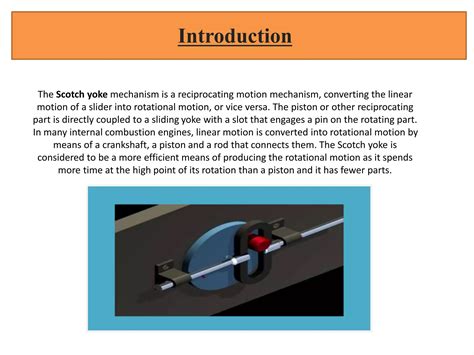

Working Principle of the Scotch Yoke Mechanism
The Scotch Yoke Mechanism operates on a simple yet effective principle. The crankshaft rotates, causing the yoke to move in a circular path. As the yoke moves, it pushes or pulls the slider along the guide, converting the rotational motion into linear motion. The linear motion of the slider can then be used to perform various tasks, such as moving a piston in an engine or operating a valve in a hydraulic system.
The mechanism's efficiency and reliability make it a popular choice for many applications. Its ability to convert rotational motion into linear motion with minimal friction and wear makes it ideal for high-speed and high-load applications.
Applications of the Scotch Yoke Mechanism
The Scotch Yoke Mechanism has a wide range of applications in various industries. Some of the most common applications include:
- Automotive Industry: The Scotch Yoke Mechanism is used in the design of internal combustion engines, where it helps convert the rotational motion of the crankshaft into the linear motion of the pistons.
- Aerospace Industry: In aerospace, the mechanism is used in various components, such as actuators and control systems, where precise and reliable motion conversion is essential.
- Manufacturing Industry: The Scotch Yoke Mechanism is used in manufacturing machinery, such as presses and stamping machines, where it helps convert rotational motion into linear motion to perform tasks like cutting, punching, and forming.
- Hydraulic Systems: The mechanism is also used in hydraulic systems, where it helps operate valves and other components that require precise linear motion.
Advantages of the Scotch Yoke Mechanism
The Scotch Yoke Mechanism offers several advantages that make it a popular choice for many applications. Some of the key advantages include:
- High Efficiency: The mechanism is highly efficient, with minimal energy loss during the motion conversion process.
- Reliability: The Scotch Yoke Mechanism is known for its reliability and durability, making it suitable for high-speed and high-load applications.
- Precision: The mechanism provides precise and smooth motion conversion, making it ideal for applications that require high accuracy.
- Low Maintenance: Due to its simple design and minimal moving parts, the Scotch Yoke Mechanism requires low maintenance, reducing downtime and operational costs.
Disadvantages of the Scotch Yoke Mechanism
While the Scotch Yoke Mechanism offers many advantages, it also has some disadvantages that should be considered. Some of the key disadvantages include:
- Complexity: The mechanism can be complex to design and manufacture, requiring precise engineering and high-quality materials.
- Cost: Due to its complexity and the need for high-quality materials, the Scotch Yoke Mechanism can be more expensive than other motion conversion mechanisms.
- Limited Range of Motion: The mechanism has a limited range of motion, which may not be suitable for all applications.
Design Considerations for the Scotch Yoke Mechanism
When designing a Scotch Yoke Mechanism, several factors must be considered to ensure optimal performance and reliability. Some of the key design considerations include:
- Material Selection: Choosing the right materials for the components is crucial for ensuring durability and reliability. High-strength materials, such as steel or titanium, are often used for the crankshaft and yoke.
- Dimensions: The dimensions of the components must be carefully calculated to ensure proper fit and function. This includes the length and diameter of the crankshaft, the size and shape of the yoke, and the dimensions of the slider and guide.
- Lubrication: Proper lubrication is essential for reducing friction and wear, ensuring smooth and efficient operation. The type and amount of lubricant used will depend on the specific application and operating conditions.
- Load and Speed: The mechanism must be designed to handle the expected load and speed requirements. This includes considering factors such as the weight of the moving parts, the force applied, and the speed of rotation.
Maintenance of the Scotch Yoke Mechanism
Maintaining a Scotch Yoke Mechanism is crucial for ensuring its longevity and reliability. Regular maintenance tasks include:
- Inspection: Regularly inspecting the mechanism for signs of wear, damage, or misalignment.
- Lubrication: Ensuring that all moving parts are properly lubricated to reduce friction and wear.
- Cleaning: Keeping the mechanism clean and free of debris to prevent contamination and ensure smooth operation.
- Adjustment: Making necessary adjustments to the mechanism to maintain proper alignment and function.
🛠️ Note: Regular maintenance can help extend the lifespan of the Scotch Yoke Mechanism and prevent costly repairs or downtime.
Comparison with Other Motion Conversion Mechanisms
The Scotch Yoke Mechanism is just one of many motion conversion mechanisms available. Other common mechanisms include the cam and follower, crank and slider, and rack and pinion. Each of these mechanisms has its own advantages and disadvantages, making them suitable for different applications. The following table provides a comparison of the Scotch Yoke Mechanism with other common motion conversion mechanisms:
| Mechanism | Advantages | Disadvantages | Applications |
|---|---|---|---|
| Scotch Yoke Mechanism | High efficiency, reliability, precision, low maintenance | Complexity, cost, limited range of motion | Automotive, aerospace, manufacturing, hydraulic systems |
| Cam and Follower | Simple design, low cost, versatile | Limited precision, high wear, noise | Automotive, industrial machinery, appliances |
| Crank and Slider | Simple design, low cost, high efficiency | Limited range of motion, high wear, noise | Automotive, industrial machinery, appliances |
| Rack and Pinion | High precision, smooth operation, compact size | High cost, complexity, limited load capacity | Automotive, aerospace, robotics |
Future Trends in Scotch Yoke Mechanism Technology
The Scotch Yoke Mechanism continues to evolve, with advancements in materials, design, and manufacturing technologies. Some of the future trends in Scotch Yoke Mechanism technology include:
- Advanced Materials: The use of advanced materials, such as composites and ceramics, can improve the durability and performance of the mechanism.
- Computer-Aided Design (CAD): CAD software can help engineers design more efficient and precise Scotch Yoke Mechanisms, optimizing performance and reducing costs.
- Additive Manufacturing: Additive manufacturing, or 3D printing, can enable the production of complex and customized Scotch Yoke Mechanisms, reducing lead times and costs.
- Smart Sensors: The integration of smart sensors can provide real-time monitoring and diagnostics, improving maintenance and reliability.
As technology continues to advance, the Scotch Yoke Mechanism is likely to become even more efficient, reliable, and versatile, opening up new applications and opportunities.
In conclusion, the Scotch Yoke Mechanism is a versatile and efficient motion conversion mechanism with a rich history and wide range of applications. Its ability to convert rotational motion into linear motion with high efficiency and precision makes it a valuable component in many industries. Understanding the Scotch Yoke Mechanism, its components, working principles, and applications can help engineers and designers create more efficient and reliable machines and devices. As technology continues to advance, the Scotch Yoke Mechanism is poised to play an even more significant role in modern engineering.
