Rtd Vs Thermocouple

In the realm of temperature measurement, two technologies stand out for their accuracy and reliability: Resistance Temperature Detectors (RTDs) and Thermocouples. Both are widely used in industrial, scientific, and commercial applications, but they operate on different principles and have distinct advantages and disadvantages. Understanding the differences between RTD vs Thermocouple is crucial for selecting the right temperature sensor for specific needs.

Table of Contents

Understanding RTDs

Resistance Temperature Detectors (RTDs) are sensors that measure temperature by correlating the resistance of the RTD element with temperature. The most common type of RTD uses a pure metal, such as platinum, as the resistive element. The resistance of the metal changes predictably with temperature, allowing for precise temperature measurement.

RTDs are known for their high accuracy and stability over time. They are particularly suitable for applications requiring precise temperature control, such as in laboratory settings, food processing, and pharmaceutical manufacturing. The most common types of RTDs include:

Platinum RTDs (Pt100, Pt1000)
Nickel RTDs
Copper RTDs

Platinum RTDs are the most widely used due to their excellent linearity, stability, and resistance to corrosion. They are often used in high-precision applications where accuracy is paramount.

Understanding Thermocouples

Thermocouples, on the other hand, operate on the principle of the Seebeck effect, which generates a voltage difference when two different metals are joined at two junctions and exposed to different temperatures. This voltage difference can be measured and correlated to the temperature difference between the junctions.

Thermocouples are highly versatile and can measure a wide range of temperatures, from cryogenic levels to extremely high temperatures. They are commonly used in industrial processes, such as furnace monitoring, engine testing, and food processing. The most common types of thermocouples include:

Type K (Nickel-Chromium/Nickel-Alumel)
Type J (Iron/Constantan)
Type T (Copper/Constantan)
Type E (Chromel/Constantan)
Type N (Nicrosil/Nisil)
Type S, R, and B (Platinum/Rhodium)

Each type of thermocouple has its own temperature range and sensitivity, making them suitable for different applications. For example, Type K thermocouples are commonly used in general-purpose applications, while Type S, R, and B thermocouples are used for high-temperature measurements.

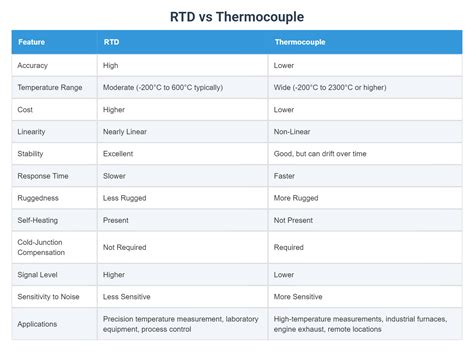

RTD vs Thermocouple: Key Differences

When comparing RTD vs Thermocouple, several key differences become apparent:

Feature	RTD	Thermocouple
Measurement Principle	Change in resistance with temperature	Voltage difference generated by temperature difference
Accuracy	High accuracy and stability	Lower accuracy but wider temperature range
Response Time	Slower response time	Faster response time
Temperature Range	Limited to lower and moderate temperatures	Wide temperature range, from cryogenic to very high temperatures
Cost	More expensive	Less expensive
Durability	More fragile, susceptible to shock and vibration	More robust, suitable for harsh environments

These differences highlight the strengths and weaknesses of each technology, making them suitable for different applications. For example, RTDs are ideal for applications requiring high precision and stability, while thermocouples are better suited for applications needing a wide temperature range and fast response time.

Applications of RTDs and Thermocouples

RTDs and thermocouples are used in a variety of industries and applications. Understanding where each is best applied can help in making an informed decision.

RTD Applications

RTDs are commonly used in applications where high accuracy and stability are required. Some of the key applications include:

Laboratory equipment
Food processing and storage
Pharmaceutical manufacturing
HVAC systems
Scientific research

In these applications, the precision and reliability of RTDs make them an ideal choice for ensuring consistent and accurate temperature measurements.

Thermocouple Applications

Thermocouples are versatile and can be used in a wide range of applications, from industrial processes to scientific research. Some of the key applications include:

Furnace and kiln monitoring
Engine testing and performance monitoring
Food processing and cooking
Plastic and rubber manufacturing
Aerospace and automotive industries

Thermocouples are particularly useful in applications where a wide temperature range and fast response time are required.

Factors to Consider When Choosing Between RTD vs Thermocouple

When deciding between an RTD and a thermocouple, several factors should be considered to ensure the best choice for the specific application:

Temperature Range: Determine the temperature range required for the application. Thermocouples are suitable for a wider range of temperatures, while RTDs are better for lower and moderate temperatures.
Accuracy: If high precision is required, RTDs are the better choice. Thermocouples offer lower accuracy but are more versatile.
Response Time: For applications needing fast response times, thermocouples are more suitable. RTDs have a slower response time.
Cost: Thermocouples are generally less expensive than RTDs, making them a cost-effective choice for many applications.
Durability: Consider the environmental conditions where the sensor will be used. Thermocouples are more robust and can withstand harsh environments better than RTDs.

By evaluating these factors, you can make an informed decision on whether an RTD or a thermocouple is the best fit for your specific needs.

💡 Note: It's important to consult with a temperature measurement expert if you are unsure about the best choice for your application. They can provide valuable insights and recommendations based on your specific requirements.

Calibration and Maintenance

Both RTDs and thermocouples require regular calibration and maintenance to ensure accurate and reliable measurements. Proper calibration helps maintain the accuracy of the sensors over time, while regular maintenance extends their lifespan.

Calibration

Calibration involves comparing the sensor's output to a known standard and adjusting it if necessary. For RTDs, calibration typically involves measuring the resistance at known temperatures and adjusting the sensor's calibration curve. For thermocouples, calibration involves measuring the voltage output at known temperatures and adjusting the sensor's calibration curve.

Regular calibration is essential for maintaining the accuracy of both RTDs and thermocouples. It is recommended to calibrate sensors at least once a year, or more frequently if they are used in harsh environments or critical applications.

Maintenance

Maintenance for RTDs and thermocouples includes cleaning, inspecting for damage, and replacing any worn-out components. For RTDs, it is important to ensure that the sensor is not exposed to excessive shock or vibration, as this can damage the delicate resistive element. For thermocouples, it is important to inspect the junctions for corrosion or damage and replace any worn-out wires.

Regular maintenance helps extend the lifespan of both RTDs and thermocouples, ensuring reliable and accurate temperature measurements over time.

💡 Note: Always follow the manufacturer's guidelines for calibration and maintenance to ensure the best performance and longevity of your sensors.

Conclusion

In summary, both RTDs and thermocouples are essential tools for temperature measurement, each with its own strengths and weaknesses. RTDs offer high accuracy and stability, making them ideal for applications requiring precise temperature control. Thermocouples, on the other hand, provide a wide temperature range and fast response time, making them suitable for a variety of industrial and scientific applications. By understanding the differences between RTD vs Thermocouple and considering the specific requirements of your application, you can make an informed decision on the best temperature sensor for your needs.
