Roof Pitches Chart

Understanding roof pitches is crucial for anyone involved in construction, home improvement, or architecture. A roof pitch, also known as roof slope or roof angle, is the measure of the steepness of a roof. It is typically expressed as a ratio of the rise (vertical height) to the run (horizontal distance). This measurement is essential for determining the appropriate roofing materials, ensuring proper drainage, and calculating the overall aesthetics of a building. One of the most useful tools for understanding roof pitches is a Roof Pitches Chart. This chart provides a visual and numerical representation of different roof pitches, making it easier to select the right pitch for a specific project.

Table of Contents

Understanding Roof Pitch

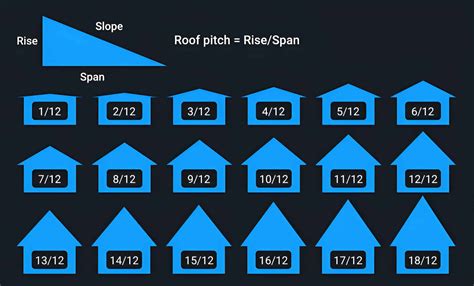

Roof pitch is a fundamental concept in roofing. It is defined as the angle formed by the roof's surface and the horizontal plane. The pitch is usually expressed as a ratio, such as 4:12, which means the roof rises 4 inches for every 12 inches of horizontal run. This ratio can also be converted into degrees, which is often more intuitive for some people. For example, a 4:12 pitch is equivalent to approximately 18.4 degrees.

Roof pitches can vary widely depending on the climate, architectural style, and functional requirements of the building. Here are some common roof pitches and their typical uses:

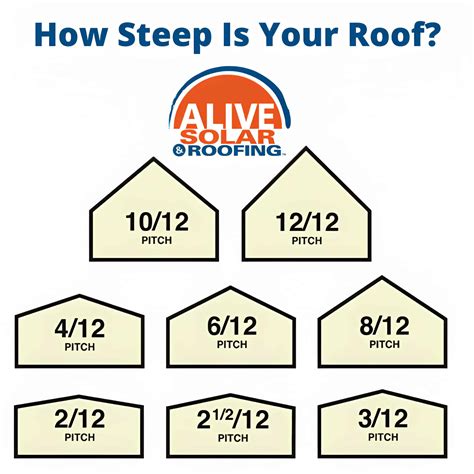

Low Pitch (2:12 to 4:12): Suitable for flat or low-slope roofs, often used in modern and commercial buildings.
Medium Pitch (4:12 to 9:12): Common in residential homes, providing a good balance between aesthetics and functionality.
High Pitch (9:12 and above): Often seen in traditional and historic homes, offering a steep slope that allows for better drainage and snow shedding.

The Importance of a Roof Pitches Chart

A Roof Pitches Chart is an invaluable resource for anyone working with roofs. It provides a quick reference for understanding the relationship between pitch ratios, degrees, and the corresponding rise and run measurements. This chart is particularly useful for:

Architects and designers who need to visualize different roof pitches for their projects.
Contractors and roofers who need to calculate the amount of material required for a specific pitch.
Homeowners who want to understand the pitch of their existing roof or plan a new roof installation.

By using a Roof Pitches Chart, you can ensure that your roofing project is both functional and aesthetically pleasing. The chart helps in selecting the right materials, such as shingles, tiles, or metal sheets, that are suitable for the chosen pitch. It also aids in determining the necessary structural support and drainage systems to prevent water damage and leaks.

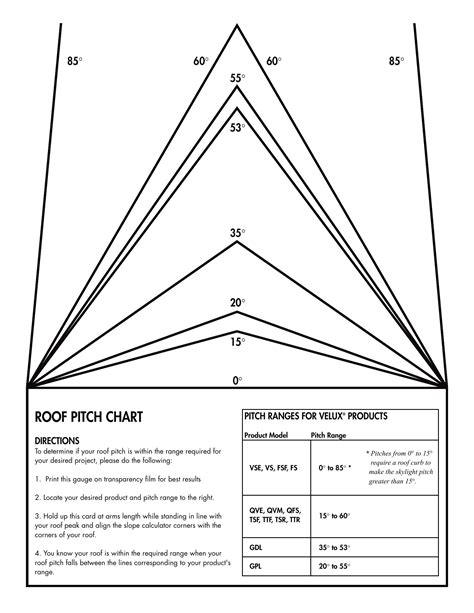

How to Read a Roof Pitches Chart

Reading a Roof Pitches Chart is straightforward once you understand the basic components. The chart typically includes the following information:

Pitch Ratio: The numerical ratio of rise to run, such as 4:12.
Degrees: The angle of the pitch in degrees.
Rise and Run: The vertical and horizontal measurements corresponding to the pitch ratio.

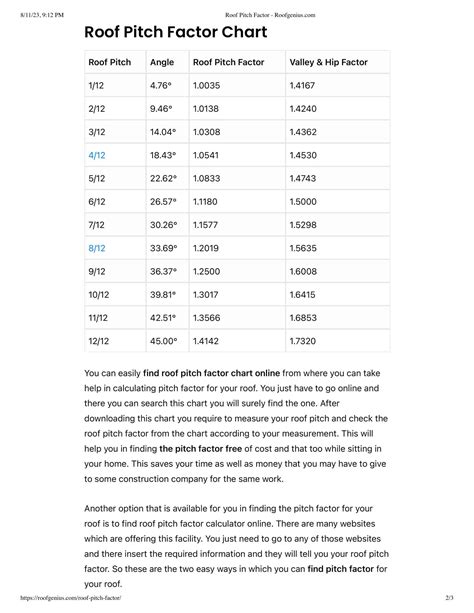

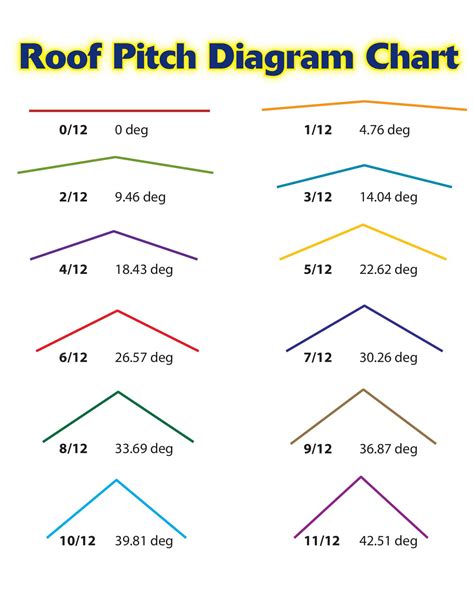

Here is an example of what a Roof Pitches Chart might look like:

Pitch Ratio	Degrees	Rise (inches)	Run (inches)
2:12	9.5	2	12
3:12	14.0	3	12
4:12	18.4	4	12
5:12	22.6	5	12
6:12	26.6	6	12
7:12	30.3	7	12
8:12	33.7	8	12
9:12	37.0	9	12
10:12	39.8	10	12
11:12	42.0	11	12
12:12	45.0	12	12

To use the chart, simply find the pitch ratio that matches your project's requirements. For example, if you need a pitch of 6:12, you can see that it corresponds to an angle of 26.6 degrees, with a rise of 6 inches and a run of 12 inches.

📝 Note: Always double-check your measurements and calculations to ensure accuracy, as even small errors can lead to significant issues in roofing projects.

Choosing the Right Roof Pitch

Selecting the right roof pitch depends on several factors, including climate, architectural style, and functional needs. Here are some considerations to help you choose the appropriate pitch for your project:

Climate: In regions with heavy snowfall, a steeper pitch is often necessary to prevent snow buildup and ensure proper drainage. Conversely, in areas with high winds, a lower pitch may be more suitable to reduce wind resistance.
Architectural Style: Different architectural styles call for different roof pitches. For example, traditional colonial homes often feature steep pitches, while modern designs may opt for flatter roofs.
Functional Needs: Consider the intended use of the roof space. For instance, if you plan to use the attic for living space, a steeper pitch may be required to provide adequate headroom.

By carefully considering these factors and consulting a Roof Pitches Chart, you can select a pitch that meets both aesthetic and functional requirements.

Common Roof Pitches and Their Applications

Different roof pitches are suited to various types of buildings and climates. Here are some common roof pitches and their typical applications:

2:12 Pitch: Often used in flat or low-slope roofs for commercial buildings and modern homes. This pitch provides minimal resistance to wind and is suitable for areas with light snowfall.
4:12 Pitch: A popular choice for residential homes, offering a good balance between aesthetics and functionality. This pitch is suitable for areas with moderate snowfall and wind conditions.
6:12 Pitch: Common in traditional and historic homes, providing a steeper slope that allows for better drainage and snow shedding. This pitch is ideal for regions with heavy snowfall.
8:12 Pitch: Often seen in barns and sheds, this pitch offers excellent drainage and is suitable for areas with heavy rainfall or snowfall.
12:12 Pitch: A very steep pitch, typically used in specialized applications such as cupolas or dormers. This pitch provides maximum drainage and is suitable for areas with extreme weather conditions.

Understanding the applications of different roof pitches can help you make an informed decision for your project. A Roof Pitches Chart can serve as a valuable reference tool in this process.

📝 Note: Always consult with a professional roofer or architect to ensure that your chosen pitch is suitable for your specific project and local building codes.

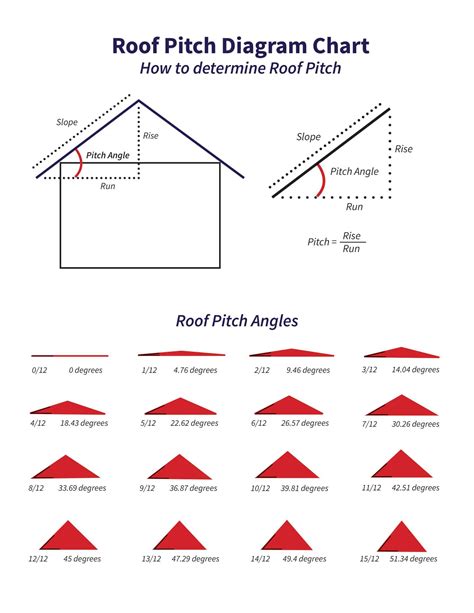

Calculating Roof Pitch

Calculating the pitch of an existing roof can be useful for various reasons, such as determining the amount of material needed for repairs or understanding the structural integrity of the roof. Here are the steps to calculate the pitch of an existing roof:

Measure the rise: Use a tape measure to determine the vertical height from the eave to the ridge of the roof.
Measure the run: Measure the horizontal distance from the eave to a point directly below the ridge.
Calculate the pitch ratio: Divide the rise by the run to get the pitch ratio. For example, if the rise is 6 inches and the run is 12 inches, the pitch ratio is 6:12 or 1/2.
Convert to degrees: Use a calculator or trigonometric tables to convert the pitch ratio to degrees. For example, a 6:12 pitch is approximately 26.6 degrees.

By following these steps, you can accurately determine the pitch of an existing roof and use this information to plan repairs or modifications.

📝 Note: Always prioritize safety when measuring roofs, especially steep or high-pitched roofs. Use appropriate safety equipment and consider hiring a professional if necessary.

Roof Pitch and Drainage

Proper drainage is crucial for the longevity and performance of a roof. The pitch of a roof plays a significant role in determining how well water drains off the surface. Here are some key points to consider regarding roof pitch and drainage:

Low Pitch Roofs: These roofs have a gentle slope, which can make drainage more challenging. Special drainage systems, such as scuppers or internal drains, may be necessary to prevent water buildup and leaks.
Medium Pitch Roofs: These roofs offer a good balance between aesthetics and functionality. They typically provide adequate drainage without the need for specialized systems.
High Pitch Roofs: These roofs have a steep slope, which allows for excellent drainage. However, they may require additional structural support to withstand the weight of snow and wind.

By understanding the relationship between roof pitch and drainage, you can select a pitch that ensures proper water flow and prevents damage to your building.

📝 Note: Always consult with a professional roofer to ensure that your roof's drainage system is adequate for your chosen pitch and local climate conditions.

Roof Pitch and Structural Considerations

The pitch of a roof also affects its structural requirements. A steeper pitch may require additional support to withstand the weight of snow, wind, and other environmental factors. Here are some structural considerations to keep in mind:

Rafters and Trusses: The design and spacing of rafters and trusses will depend on the pitch of the roof. Steeper pitches may require closer spacing to provide adequate support.
Load-Bearing Walls: The placement and strength of load-bearing walls will also depend on the roof pitch. Steeper pitches may require additional walls or reinforcement to support the roof's weight.
Roofing Materials: The type and weight of roofing materials will affect the structural requirements of the roof. Heavier materials, such as slate or tile, may require additional support for steeper pitches.

By considering these structural factors, you can ensure that your roof is both functional and safe. A Roof Pitches Chart can help you understand the structural implications of different pitches and make informed decisions for your project.

📝 Note: Always consult with a structural engineer or professional roofer to ensure that your roof's structural design is adequate for your chosen pitch and local building codes.

Roof Pitch and Aesthetics

The pitch of a roof can significantly impact the overall aesthetics of a building. Different pitches can create distinct architectural styles and visual appeal. Here are some aesthetic considerations to keep in mind:

Traditional Styles: Steeper pitches are often associated with traditional and historic architectural styles, such as colonial or Victorian homes. These pitches can add a classic and elegant look to a building.
Modern Styles: Flatter or low-pitch roofs are commonly seen in modern and contemporary architectural styles. These pitches can create a sleek and minimalist appearance.
Regional Styles: Different regions may have specific architectural styles that are influenced by local climate and cultural preferences. For example, in areas with heavy snowfall, steeper pitches may be more common to ensure proper drainage.

By considering the aesthetic impact of different roof pitches, you can select a pitch that complements the overall design and style of your building. A Roof Pitches Chart can help you visualize different pitches and make an informed decision.

📝 Note: Always consider the overall architectural style and design of your building when selecting a roof pitch. Consulting with an architect or designer can help ensure that your chosen pitch enhances the aesthetics of your project.

In conclusion, understanding roof pitches and utilizing a Roof Pitches Chart is essential for anyone involved in construction, home improvement, or architecture. By considering factors such as climate, structural requirements, drainage, and aesthetics, you can select the right pitch for your project. Whether you are planning a new roof installation or repairing an existing one, a Roof Pitches Chart serves as a valuable reference tool to ensure that your roof is both functional and visually appealing.
