Romex In Conduit

Electrical wiring is a critical aspect of any construction or renovation project. One of the key decisions that electricians and homeowners face is whether to use Romex in conduit or to run Romex cable directly through walls and ceilings. This decision can significantly impact the safety, durability, and aesthetics of the electrical system. This post will delve into the intricacies of using Romex in conduit, exploring its benefits, drawbacks, and best practices.

Table of Contents

Understanding Romex Cable

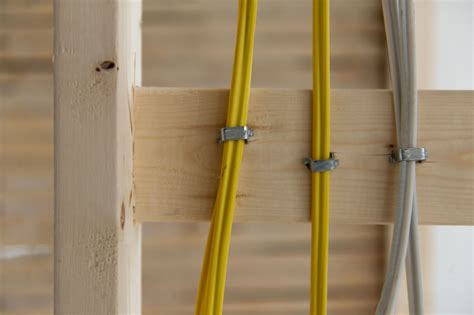

Romex is a brand name for a type of non-metallic sheathed cable commonly used in residential and commercial electrical wiring. It consists of two or more insulated conductors wrapped in a non-metallic jacket, typically made of PVC. Romex is known for its flexibility and ease of installation, making it a popular choice for many electricians.

What is Romex in Conduit?

Running Romex in conduit involves placing the Romex cable inside a protective conduit or raceway. This conduit can be made of various materials, including PVC, metal, or flexible tubing. The primary purpose of using conduit is to provide an additional layer of protection for the electrical wires, enhancing safety and durability.

Benefits of Using Romex in Conduit

There are several advantages to using Romex in conduit:

Enhanced Safety: Conduit provides an extra layer of protection against physical damage, reducing the risk of electrical shorts and fires.
Durability: Conduit protects the Romex cable from environmental factors such as moisture, chemicals, and pests, extending the lifespan of the electrical system.
Flexibility in Design: Conduit allows for easier rerouting of wires and future modifications, making it a versatile choice for both new construction and renovations.
Aesthetics: Conduit can be painted or finished to match the surrounding decor, providing a cleaner and more professional look compared to exposed Romex cable.

Drawbacks of Using Romex in Conduit

While there are many benefits, there are also some drawbacks to consider:

Increased Cost: The additional materials and labor required for installing conduit can increase the overall cost of the project.
Complexity: Installing Romex in conduit can be more complex and time-consuming, requiring specialized tools and skills.
Space Constraints: Conduit takes up more space, which can be a limitation in tight or confined areas.

Best Practices for Installing Romex in Conduit

To ensure a safe and effective installation, follow these best practices:

Choose the Right Conduit: Select a conduit material that is suitable for the environment and application. For example, PVC conduit is commonly used in dry locations, while metal conduit is preferred in areas with high moisture or mechanical stress.

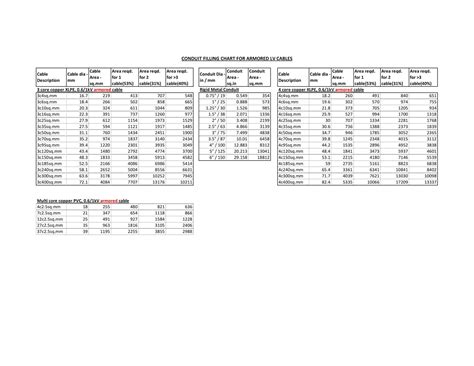

Proper Sizing: Ensure that the conduit is appropriately sized to accommodate the Romex cable. Overcrowding can lead to overheating and reduced performance.
Secure Connections: Use appropriate fittings and connectors to secure the conduit and prevent movement or dislodging.
Grounding: Properly ground the conduit to ensure electrical safety and compliance with local codes.
Labeling: Clearly label the conduit and its contents for easy identification and future maintenance.

🔧 Note: Always consult local electrical codes and regulations before beginning any wiring project. Failure to comply with these standards can result in fines, safety hazards, and potential legal issues.

Types of Conduit

There are several types of conduit commonly used in electrical installations:

Type of Conduit	Material	Common Uses
PVC Conduit	Polyvinyl Chloride	Dry locations, underground, and outdoor applications
Metal Conduit	Steel or Aluminum	Industrial settings, areas with high mechanical stress, and where grounding is required

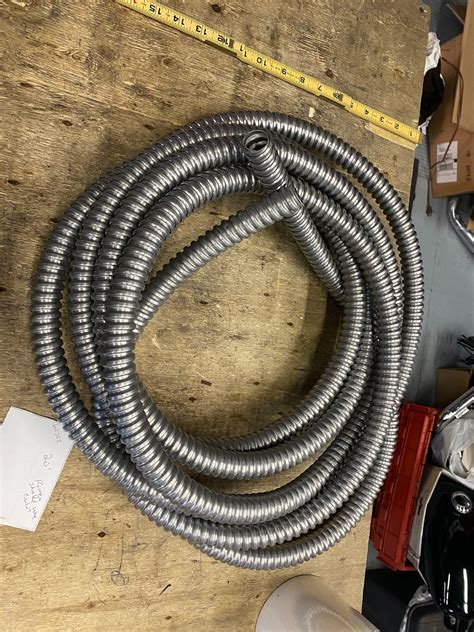

Flexible Conduit	Metal or Plastic	Temporary installations, areas with frequent movement, and tight spaces
EMT Conduit	Electrical Metallic Tubing	Indoor applications, commercial buildings, and areas with moderate mechanical stress

Installation Steps for Romex in Conduit

Here is a step-by-step guide to installing Romex in conduit:

Plan the Route: Determine the path for the conduit and mark the locations for fittings and connectors.
Cut the Conduit: Measure and cut the conduit to the required lengths using a conduit cutter or hacksaw.
Install Fittings: Attach the necessary fittings and connectors to the conduit, ensuring a secure and watertight seal.
Run the Romex Cable: Pull the Romex cable through the conduit, ensuring it is properly aligned and not kinked or damaged.
Secure the Conduit: Mount the conduit to the wall or ceiling using appropriate brackets and fasteners.

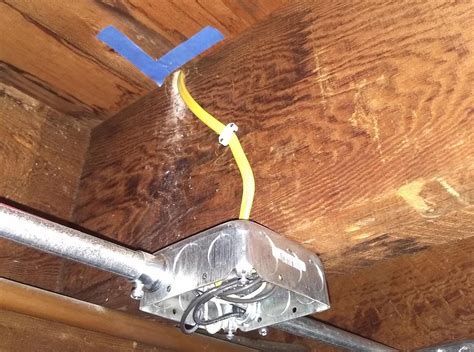

Connect to Electrical Boxes: Attach the conduit to electrical boxes and ensure the Romex cable is properly connected to the devices or outlets.
Test the System: Conduct a thorough inspection and testing of the electrical system to ensure it is functioning correctly and safely.

🛠️ Note: Always wear appropriate personal protective equipment (PPE) when working with electrical components, including gloves, safety glasses, and insulated tools.

Common Mistakes to Avoid

When installing Romex in conduit, it’s essential to avoid these common mistakes:

Overcrowding the Conduit: Ensure that the conduit is not overfilled with cables, as this can lead to overheating and reduced performance.
Improper Grounding: Always ground the conduit properly to prevent electrical hazards and ensure compliance with local codes.
Using Incorrect Fittings: Use the correct fittings and connectors for the type of conduit and application to ensure a secure and watertight seal.
Neglecting Labeling: Clearly label the conduit and its contents to facilitate future maintenance and troubleshooting.

Maintenance and Troubleshooting

Regular maintenance and prompt troubleshooting are crucial for the longevity and safety of your electrical system. Here are some tips:

Inspect Regularly: Periodically inspect the conduit and Romex cable for signs of damage, corrosion, or wear.
Check Connections: Ensure that all connections are secure and free from corrosion or loose wires.
Test Grounding: Verify that the conduit is properly grounded and that the grounding system is functioning correctly.
Address Issues Promptly: If you notice any issues, such as flickering lights or tripped breakers, address them promptly to prevent further damage.

⚠️ Note: If you are unsure about any aspect of the installation or maintenance process, consult a licensed electrician to ensure safety and compliance with local codes.

Using Romex in conduit offers numerous benefits, including enhanced safety, durability, and flexibility. However, it also comes with increased costs and complexity. By understanding the best practices, types of conduit, and common mistakes to avoid, you can ensure a successful and safe installation. Regular maintenance and prompt troubleshooting will help extend the lifespan of your electrical system and prevent potential hazards.
