Romex 14 2

Electrical wiring is a critical aspect of any construction or renovation project. One of the most commonly used types of electrical wiring is Romex 14 2. This type of wiring is widely used in residential and light commercial applications due to its durability, flexibility, and ease of installation. Understanding the specifications, applications, and installation procedures of Romex 14 2 is essential for ensuring a safe and efficient electrical system.

Table of Contents

Understanding Romex 14 2

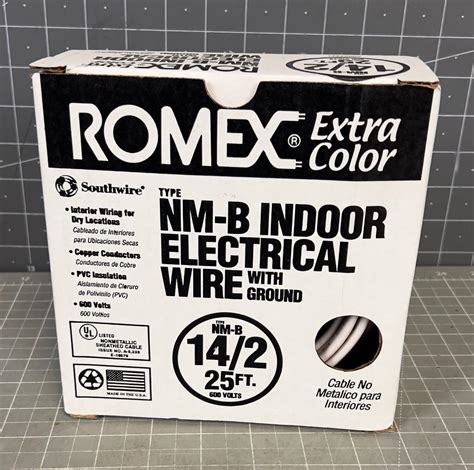

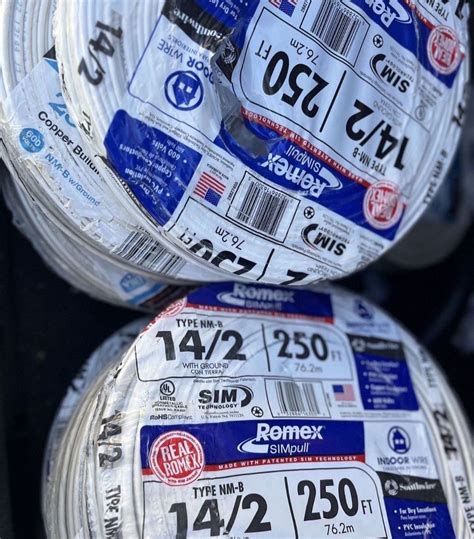

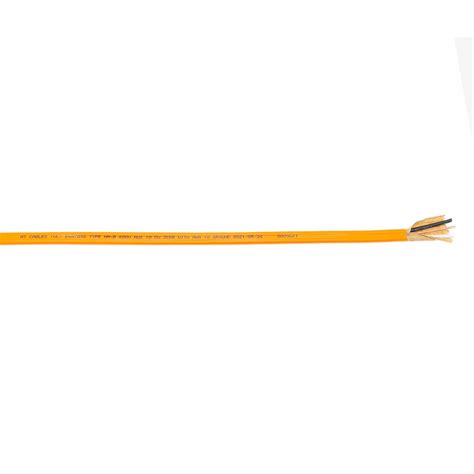

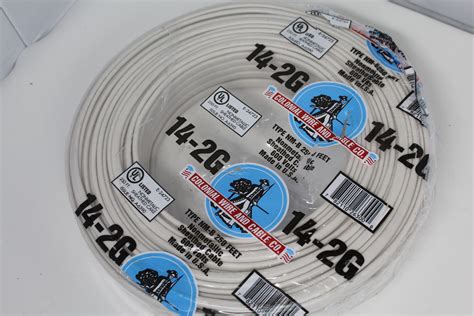

Romex 14 2 is a type of non-metallic sheathed cable (NM-B) that consists of two insulated conductors and a bare copper ground wire. The "14" in Romex 14 2 refers to the gauge of the conductors, which is 14 AWG (American Wire Gauge). The "2" indicates that there are two insulated conductors, typically black and white, which are used for the hot and neutral wires, respectively. The bare copper wire serves as the ground wire.

Specifications of Romex 14 2

Romex 14 2 has several key specifications that make it suitable for various electrical applications:

Conductor Gauge: 14 AWG
Conductor Material: Copper
Insulation Material: PVC (Polyvinyl Chloride)
Sheathing Material: PVC
Voltage Rating: 600 volts
Temperature Rating: 90°C (194°F)
Maximum Amperage: 15 amps

These specifications ensure that Romex 14 2 can handle the electrical load of most residential circuits, making it a reliable choice for wiring homes and small commercial buildings.

Applications of Romex 14 2

Romex 14 2 is commonly used in a variety of electrical applications, including:

Residential Wiring: It is ideal for wiring outlets, switches, and lighting fixtures in homes.
Light Commercial Wiring: It can be used in small commercial settings such as offices and retail spaces.
Renovations and Remodeling: Due to its flexibility and ease of installation, Romex 14 2 is often used in renovation projects.
New Construction: It is a standard choice for new residential and light commercial construction projects.

However, it is important to note that Romex 14 2 should not be used in wet locations or where it may be exposed to physical damage. For such applications, other types of wiring, such as metal-clad cable or armored cable, may be more appropriate.

Installation Procedures for Romex 14 2

Installing Romex 14 2 involves several steps, each of which must be followed carefully to ensure a safe and reliable electrical system. Here is a step-by-step guide to installing Romex 14 2:

Materials Needed

Romex 14 2 cable
Wire strippers
Cable clamps
Electrical boxes
Screwdriver
Cable ties or staples
Electrical tape

Step-by-Step Installation

1. Plan the Route: Determine the path the Romex 14 2 cable will take from the power source to the outlet or fixture. Ensure the path is clear of any obstacles and that the cable will not be exposed to physical damage.

2. Measure and Cut the Cable: Measure the length of cable needed and cut it to the appropriate length using a cable cutter. Leave enough slack to make connections and allow for any adjustments.

3. Strip the Cable: Use wire strippers to remove about ½ inch of the outer sheathing from both ends of the cable. Be careful not to nick or damage the insulated conductors or the ground wire.

4. Strip the Conductors: Strip about ¾ inch of insulation from the ends of the black (hot) and white (neutral) conductors. The bare copper ground wire does not need to be stripped further.

5. Install Cable Clamps: Attach cable clamps to the electrical boxes at both ends of the cable run. These clamps help secure the cable and prevent it from pulling out of the box.

6. Connect the Wires: Connect the black wire to the brass screw on the outlet or switch, the white wire to the silver screw, and the bare copper ground wire to the green ground screw. Tighten the screws securely to ensure a good connection.

7. Secure the Cable: Use cable ties or staples to secure the Romex 14 2 cable to the studs or joists along its route. This helps prevent the cable from sagging or being damaged.

8. Test the Circuit: Once all connections are made, turn on the power and test the circuit to ensure it is functioning properly. Use a voltage tester to check for proper voltage at the outlet or fixture.

🔧 Note: Always turn off the power at the circuit breaker before working on any electrical wiring. Use a non-contact voltage tester to ensure the circuit is dead before handling any wires.

Safety Considerations

Working with electrical wiring, including Romex 14 2, requires strict adherence to safety protocols. Here are some key safety considerations to keep in mind:

Turn Off Power: Always turn off the power at the circuit breaker before beginning any electrical work.
Use Proper Tools: Use insulated tools designed for electrical work to minimize the risk of shock.
Avoid Overloading: Do not exceed the maximum amperage rating of Romex 14 2, which is 15 amps. Overloading can cause overheating and potential fires.
Proper Connections: Ensure all wire connections are secure and properly insulated to prevent short circuits.
Grounding: Always connect the ground wire to ensure proper grounding and safety.

By following these safety considerations, you can minimize the risks associated with electrical wiring and ensure a safe and reliable electrical system.

Common Mistakes to Avoid

When working with Romex 14 2, there are several common mistakes that can compromise the safety and functionality of the electrical system. Here are some mistakes to avoid:

Incorrect Wire Gauge: Using the wrong gauge of wire can lead to overheating and potential fires. Always use 14 AWG wire for Romex 14 2 applications.
Improper Stripping: Stripping too much or too little insulation from the wires can result in poor connections or short circuits.
Loose Connections: Loose wire connections can cause arcing and overheating, leading to potential fires.
Inadequate Support: Failing to secure the cable properly can result in damage to the cable and potential electrical hazards.
Ignoring Grounding: Neglecting to connect the ground wire can compromise the safety of the electrical system.

By being aware of these common mistakes and taking steps to avoid them, you can ensure a safe and reliable installation of Romex 14 2.

Troubleshooting Romex 14 2 Issues

Even with careful installation, issues can sometimes arise with Romex 14 2 wiring. Here are some common problems and their solutions:

No Power at Outlet

If there is no power at the outlet, check the following:

Ensure the circuit breaker is not tripped.
Verify that the wires are properly connected to the outlet.
Check for any loose or damaged wires.
Use a voltage tester to check for power at the outlet.

Overheating

If the Romex 14 2 cable is overheating, it may be due to:

Overloading the circuit with too many devices.
Poor wire connections causing resistance and heat buildup.
Physical damage to the cable.

To resolve overheating issues, reduce the load on the circuit, check for and repair any damaged wires, and ensure all connections are secure.

Short Circuits

Short circuits can occur due to:

Exposed or damaged wires.
Improper wire connections.
Moisture or water exposure.

To fix short circuits, inspect the wiring for any damage, ensure all connections are secure and properly insulated, and keep the wiring dry.

🛠️ Note: If you are unsure about any aspect of troubleshooting or repairing electrical wiring, it is best to consult a licensed electrician to ensure safety and compliance with local codes.

Conclusion

Romex 14 2 is a versatile and reliable type of electrical wiring commonly used in residential and light commercial applications. Understanding its specifications, applications, and installation procedures is crucial for ensuring a safe and efficient electrical system. By following proper installation techniques, adhering to safety protocols, and avoiding common mistakes, you can successfully install and maintain Romex 14 2 wiring. Regular inspection and troubleshooting can help identify and resolve any issues, ensuring the longevity and reliability of your electrical system.
