Romex 10 2

Electrical wiring is a critical aspect of any construction or renovation project. One of the most commonly used types of electrical wiring in residential settings is Romex 10 2. This type of wiring is essential for ensuring safe and efficient electrical distribution throughout a home. Understanding the specifications, applications, and installation guidelines for Romex 10 2 is crucial for both professional electricians and DIY enthusiasts.

Table of Contents

Understanding Romex 10 2 Wiring

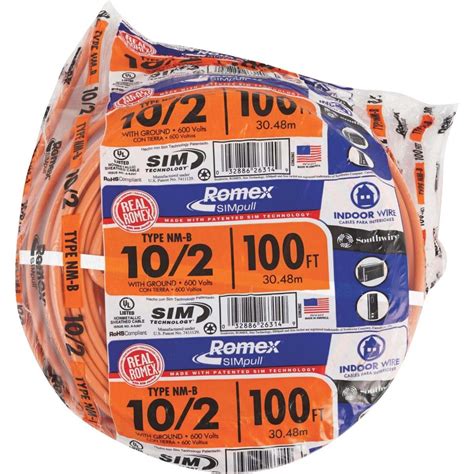

Romex 10 2 is a type of non-metallic sheathed cable (NM cable) that consists of two insulated conductors and a bare copper ground wire. The "10" in Romex 10 2 refers to the gauge of the conductors, which is 10 AWG (American Wire Gauge). The "2" indicates that there are two insulated conductors, typically black and white, along with a bare copper ground wire.

This wiring is commonly used for circuits that require a higher current capacity, such as those powering large appliances, HVAC systems, and other high-demand electrical devices. The 10 AWG conductors provide a robust and reliable electrical connection, making Romex 10 2 a popular choice for various applications.

Applications of Romex 10 2

Romex 10 2 is versatile and can be used in a variety of electrical installations. Some of the most common applications include:

Powering large appliances such as electric ranges, dryers, and water heaters.
Supplying electricity to HVAC systems, including air conditioners and furnaces.
Wiring for dedicated circuits in workshops, garages, and other areas with high power demands.
Installing electrical outlets and switches in areas requiring higher current capacity.

Due to its durability and reliability, Romex 10 2 is often preferred for both new construction and renovation projects. Its non-metallic sheathing provides protection against physical damage and environmental factors, ensuring long-term performance.

Installation Guidelines for Romex 10 2

Proper installation of Romex 10 2 is essential for ensuring safety and compliance with electrical codes. Here are the key steps and considerations for installing Romex 10 2:

Materials Needed

Romex 10 2 cable
Electrical boxes
Wire strippers
Crimp connectors
Screwdriver
Cable clamps
Electrical tape

Step-by-Step Installation

1. Plan the Route: Determine the path for the Romex 10 2 cable, ensuring it is protected from physical damage and environmental hazards. Avoid running the cable through areas with high moisture or extreme temperatures.

2. Measure and Cut: Measure the required length of Romex 10 2 cable and cut it to size using a cable cutter. Ensure the cable is long enough to reach from the power source to the destination without excessive slack.

3. Strip the Cable: Use wire strippers to remove the outer sheathing of the Romex 10 2 cable, exposing the insulated conductors and the bare ground wire. Be careful not to damage the insulation of the conductors.

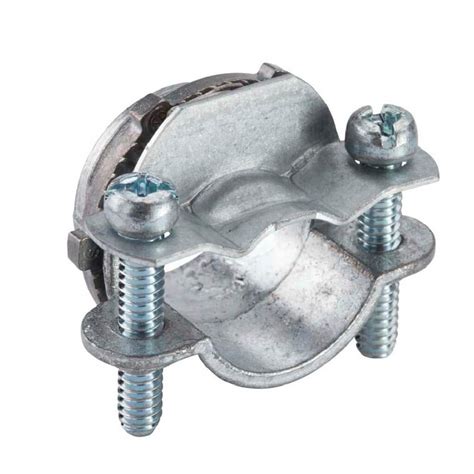

4. Install Cable Clamps: Secure the Romex 10 2 cable to the electrical boxes using cable clamps. This ensures the cable is properly supported and prevents it from pulling out of the box.

5. Connect the Wires: Strip the insulation from the ends of the conductors and the ground wire. Connect the black wire to the brass screw on the outlet or switch, the white wire to the silver screw, and the bare ground wire to the green ground screw. Tighten the screws securely to ensure a good connection.

6. Secure the Connections: Use wire nuts to secure the connections between the Romex 10 2 wires and the outlet or switch wires. Twist the wires together and tighten the wire nuts firmly. Wrap electrical tape around the connections for added insulation and protection.

7. Test the Circuit: Before closing the electrical box, test the circuit to ensure it is functioning correctly. Use a voltage tester to check for proper voltage and continuity.

8. Finalize the Installation: Once the circuit is tested and verified, close the electrical box and secure it in place. Ensure all connections are tight and the cable is properly supported.

🔧 Note: Always follow local electrical codes and regulations when installing Romex 10 2. Consult with a licensed electrician if you are unsure about any aspect of the installation process.

Safety Considerations

Working with electrical wiring, including Romex 10 2, requires strict adherence to safety protocols. Here are some important safety considerations to keep in mind:

Turn Off Power: Always turn off the power at the circuit breaker before working on any electrical wiring. Use a non-contact voltage tester to ensure the circuit is de-energized.
Use Proper Tools: Use insulated tools designed for electrical work to minimize the risk of electric shock.
Avoid Overloading: Ensure that the Romex 10 2 wiring is not overloaded by connecting too many devices or appliances to the circuit. Overloading can cause overheating and potential fire hazards.
Proper Grounding: Always connect the bare ground wire to the ground terminal in the electrical box. Proper grounding is essential for safety and compliance with electrical codes.
Inspect for Damage: Regularly inspect the Romex 10 2 cable for any signs of damage, such as cuts, cracks, or frayed insulation. Replace any damaged cable immediately to prevent electrical hazards.

By following these safety considerations, you can ensure a safe and reliable electrical installation using Romex 10 2.

Common Mistakes to Avoid

When installing Romex 10 2, it is important to avoid common mistakes that can compromise the safety and functionality of the electrical system. Here are some mistakes to watch out for:

Incorrect Wire Gauge: Using the wrong gauge of wire can lead to overheating and potential fire hazards. Always use the correct gauge specified for the application.
Improper Connections: Loose or improperly secured connections can cause arcing and overheating. Ensure all connections are tight and secure.
Inadequate Support: Failing to properly support the Romex 10 2 cable can result in physical damage and potential electrical hazards. Use cable clamps and other support mechanisms as needed.
Ignoring Grounding: Neglecting to connect the ground wire can compromise the safety of the electrical system. Always ensure proper grounding.
Overloading Circuits: Connecting too many devices to a single circuit can overload the Romex 10 2 wiring. Distribute the load evenly across multiple circuits to prevent overloading.

By avoiding these common mistakes, you can ensure a safe and efficient electrical installation using Romex 10 2.

Troubleshooting Romex 10 2 Issues

Even with proper installation, issues can arise with Romex 10 2 wiring. Here are some common problems and troubleshooting tips:

No Power

If there is no power at the outlet or switch, check the following:

Ensure the circuit breaker is not tripped. Reset the breaker if necessary.
Verify that the Romex 10 2 cable is properly connected to the power source.
Check for loose or damaged connections at the outlet or switch.

Intermittent Power

If the power is intermittent, it may be due to:

Loose connections at the outlet or switch. Tighten the connections and secure them with wire nuts.
Damaged cable. Inspect the Romex 10 2 cable for any signs of damage and replace if necessary.
Overloading the circuit. Reduce the number of devices connected to the circuit.

Overheating

If the Romex 10 2 cable or connections are overheating, it may be due to:

Overloading the circuit. Reduce the load on the circuit to prevent overheating.
Improper wire gauge. Ensure the correct gauge of wire is used for the application.
Poor connections. Tighten and secure all connections to prevent overheating.

By following these troubleshooting tips, you can identify and resolve common issues with Romex 10 2 wiring.

Comparing Romex 10 2 with Other Wiring Types

When choosing electrical wiring for a project, it is important to compare different types to determine the best fit. Here is a comparison of Romex 10 2 with other common wiring types:

Wiring Type	Conductors	Gauge	Applications	Advantages	Disadvantages
Romex 10 2	2 insulated conductors + ground	10 AWG	Large appliances, HVAC systems, dedicated circuits	Durable, reliable, easy to install	Limited flexibility, not suitable for outdoor use
Romex 12 2	2 insulated conductors + ground	12 AWG	General-purpose wiring, lighting circuits, outlets	Versatile, easy to install, suitable for various applications	Lower current capacity compared to Romex 10 2
Romex 14 2	2 insulated conductors + ground	14 AWG	Lighting circuits, small appliances, outlets	Easy to install, suitable for low-current applications	Limited current capacity, not suitable for high-demand circuits
THHN Wire	Single insulated conductor	Various gauges	Conduit wiring, commercial and industrial applications	High temperature rating, durable, suitable for harsh environments	Requires conduit for protection, more complex installation

Each type of wiring has its own advantages and disadvantages, making them suitable for different applications. Romex 10 2 is particularly well-suited for high-demand circuits in residential settings, offering durability and reliability.

When selecting the appropriate wiring for your project, consider the specific requirements and constraints of the application. Consult with a licensed electrician if you are unsure about the best type of wiring to use.

In conclusion, Romex 10 2 is a versatile and reliable type of electrical wiring commonly used in residential settings. Its 10 AWG conductors provide a robust and efficient electrical connection, making it ideal for powering large appliances, HVAC systems, and other high-demand devices. Understanding the specifications, applications, and installation guidelines for Romex 10 2 is essential for ensuring safe and efficient electrical distribution. By following proper installation techniques, adhering to safety protocols, and avoiding common mistakes, you can ensure a successful electrical installation using Romex 10 2.
