In the realm of materials science and engineering, the Rockwell Hardness Tester stands as a pivotal tool for assessing the hardness of various materials. This instrument is widely used across industries to ensure that materials meet specific quality and performance standards. Understanding the principles, applications, and proper usage of a Rockwell Hardness Tester is crucial for professionals in fields ranging from metallurgy to manufacturing.
Understanding the Rockwell Hardness Tester

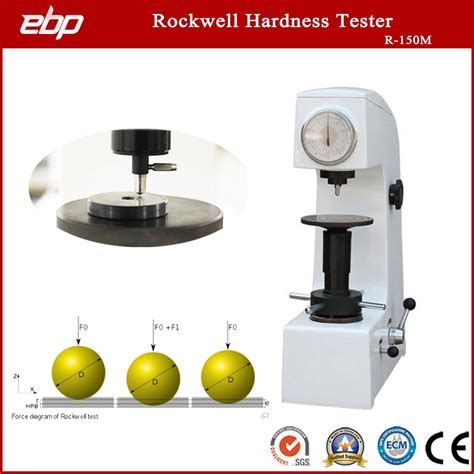

The Rockwell Hardness Tester is a device designed to measure the hardness of materials by determining the depth of penetration of an indenter under a specific load. The test involves applying a minor load followed by a major load, and then measuring the difference in depth of penetration. This method provides a quick and reliable way to assess the hardness of metals, alloys, and other materials.
Principles of Operation
The Rockwell Hardness Tester operates on the principle of indentation hardness. The process involves the following steps:
- Preparation: The sample material is prepared by ensuring a smooth, flat surface.
- Minor Load Application: A minor load (preload) is applied to the material using a diamond cone or a hardened steel ball indenter. This initial load helps to seat the indenter and eliminate any surface irregularities.
- Major Load Application: A major load is then applied, causing the indenter to penetrate deeper into the material.
- Measurement: The major load is removed, leaving the minor load in place. The depth of penetration is measured and converted into a Rockwell hardness number.
The Rockwell hardness number is calculated based on the difference in depth of penetration before and after the application of the major load. The formula for calculating the Rockwell hardness number (HR) is:
📝 Note: The formula for calculating the Rockwell hardness number (HR) is HR = E - e, where E is the depth of penetration under the minor load and e is the depth of penetration under the major load.
Types of Rockwell Hardness Scales
The Rockwell Hardness Tester uses different scales to measure the hardness of various materials. The most commonly used scales include:
| Scale | Indenter | Minor Load (kgf) | Major Load (kgf) | Typical Materials |
|---|---|---|---|---|
| HRA | Diamond Cone | 10 | 60 | Thin materials, cemented carbides |
| HRB | 1/16" Steel Ball | 10 | 100 | Soft materials, aluminum alloys |
| HRC | Diamond Cone | 10 | 150 | Hard materials, tool steels |
| HRD | Diamond Cone | 10 | 100 | Thin materials, cemented carbides |
| HRE | 1/8" Steel Ball | 10 | 100 | Cast iron, malleable iron |
Each scale is designed to measure the hardness of specific types of materials, ensuring accurate and reliable results.
Applications of the Rockwell Hardness Tester
The Rockwell Hardness Tester is used in a wide range of applications across various industries. Some of the key applications include:
- Metallurgy: Assessing the hardness of metals and alloys to ensure they meet required specifications.
- Manufacturing: Quality control in the production of components and parts to ensure they meet hardness standards.
- Automotive Industry: Testing the hardness of engine components, gears, and other critical parts.
- Aerospace Industry: Ensuring the hardness of aircraft components to meet safety and performance standards.
- Construction: Testing the hardness of construction materials such as steel beams and concrete.
In each of these applications, the Rockwell Hardness Tester provides a quick and reliable method for assessing material hardness, ensuring that products meet the required standards.
Calibration and Maintenance
To ensure accurate and reliable results, the Rockwell Hardness Tester must be regularly calibrated and maintained. Calibration involves checking the accuracy of the instrument using reference materials with known hardness values. Maintenance includes cleaning the indenter, checking the load application mechanism, and ensuring the instrument is free from any mechanical issues.
Regular calibration and maintenance are essential for the following reasons:
- Accuracy: Ensures that the hardness measurements are accurate and reliable.
- Consistency: Maintains consistent performance over time.
- Compliance: Meets industry standards and regulations.
It is recommended to follow the manufacturer's guidelines for calibration and maintenance to ensure the Rockwell Hardness Tester operates at its best.
📝 Note: Regular calibration and maintenance are crucial for the accuracy and reliability of the Rockwell Hardness Tester. Follow the manufacturer's guidelines for optimal performance.
Advantages of the Rockwell Hardness Tester
The Rockwell Hardness Tester offers several advantages over other hardness testing methods. Some of the key advantages include:
- Speed: Provides quick results, making it suitable for high-volume testing.
- Ease of Use: Simple to operate, requiring minimal training.
- Versatility: Can be used to test a wide range of materials and hardness scales.
- Non-Destructive: The test does not significantly damage the material, allowing for further testing or use.
- Cost-Effective: Relatively low cost compared to other hardness testing methods.
These advantages make the Rockwell Hardness Tester a popular choice for hardness testing in various industries.
Limitations of the Rockwell Hardness Tester
While the Rockwell Hardness Tester is a valuable tool, it also has some limitations. Understanding these limitations is important for accurate interpretation of results. Some of the key limitations include:
- Surface Finish: The surface finish of the material can affect the accuracy of the test.
- Material Thickness: The test may not be suitable for very thin materials.
- Anisotropy: The hardness of anisotropic materials may vary with direction, affecting the test results.
- Surface Hardening: Surface hardening treatments can affect the accuracy of the test.
It is important to consider these limitations when using the Rockwell Hardness Tester and to ensure that the material being tested meets the required conditions for accurate results.
📝 Note: Be aware of the limitations of the Rockwell Hardness Tester, such as surface finish, material thickness, anisotropy, and surface hardening, to ensure accurate results.
Best Practices for Using the Rockwell Hardness Tester
To ensure accurate and reliable results when using the Rockwell Hardness Tester, follow these best practices:
- Prepare the Sample: Ensure the sample has a smooth, flat surface free from any defects or irregularities.
- Select the Appropriate Scale: Choose the correct Rockwell scale based on the material being tested.
- Apply the Load Correctly: Follow the correct procedure for applying the minor and major loads.
- Calibrate Regularly: Regularly calibrate the instrument using reference materials with known hardness values.
- Maintain the Instrument: Keep the instrument clean and free from mechanical issues.
By following these best practices, you can ensure that the Rockwell Hardness Tester provides accurate and reliable hardness measurements.
In conclusion, the Rockwell Hardness Tester is an essential tool for assessing the hardness of materials across various industries. Its principles of operation, types of scales, applications, calibration, and maintenance are crucial for ensuring accurate and reliable results. Understanding the advantages and limitations of the Rockwell Hardness Tester, as well as following best practices, will help professionals make informed decisions and ensure the quality and performance of materials.
