Understanding the Rockwell C scale is crucial for anyone involved in materials science, engineering, or manufacturing. This scale is widely used to measure the hardness of materials, particularly metals. It provides a standardized way to compare the hardness of different materials, which is essential for quality control and material selection. The Rockwell C scale is just one of several scales within the Rockwell hardness testing method, each designed to measure different types of materials and hardness ranges.
What is the Rockwell C Scale?
The Rockwell C scale, often abbreviated as HRC, is a specific scale within the Rockwell hardness testing method. It is particularly suited for measuring the hardness of harder materials, such as steel and other alloys. The scale ranges from 0 to 100, with higher numbers indicating harder materials. The Rockwell C scale uses a diamond cone indenter and a minor load of 10 kgf followed by a major load of 150 kgf. This combination allows for precise measurements of materials with a hardness range typically between 20 and 70 HRC.
How Does the Rockwell C Scale Work?
The Rockwell hardness test involves applying a specific load to the material being tested and measuring the depth of the indentation left by the indenter. The process can be broken down into several steps:
- Preparation: Ensure the surface of the material is smooth and free of defects. This is crucial for accurate readings.
- Minor Load Application: Apply a minor load (10 kgf) to the material using the indenter. This initial load helps to seat the indenter and establish a reference point.
- Major Load Application: Apply a major load (150 kgf) to the material. This load creates the indentation.
- Measurement: Remove the major load and measure the depth of the indentation. The difference between the depth of the indentation under the minor load and the depth under the major load is used to calculate the Rockwell hardness number.
The formula for calculating the Rockwell hardness number (HRC) is:
đź“ť Note: The formula for calculating the Rockwell hardness number (HRC) is HRC = 100 - (h - h0) * 500 / s, where h is the depth of indentation under the major load, h0 is the depth of indentation under the minor load, and s is the scale factor.
Applications of the Rockwell C Scale
The Rockwell C scale is extensively used in various industries due to its accuracy and reliability. Some of the key applications include:
- Quality Control: In manufacturing, the Rockwell C scale is used to ensure that materials meet the required hardness specifications. This is crucial for maintaining product quality and performance.
- Material Selection: Engineers and designers use the Rockwell C scale to select materials that can withstand specific loads and stresses. This is particularly important in industries like aerospace and automotive, where material performance is critical.
- Research and Development: In materials science, the Rockwell C scale is used to study the properties of new materials and to develop materials with specific hardness characteristics.
Advantages of the Rockwell C Scale
The Rockwell C scale offers several advantages that make it a preferred method for hardness testing:
- Precision: The Rockwell C scale provides highly accurate and repeatable results, making it suitable for precise measurements.
- Speed: The test can be completed quickly, making it efficient for quality control and production environments.
- Non-Destructive: Unlike some other hardness testing methods, the Rockwell C scale test is relatively non-destructive, allowing the tested material to be used afterward.
- Versatility: The Rockwell C scale can be used to test a wide range of materials, including metals, alloys, and even some plastics.
Limitations of the Rockwell C Scale
While the Rockwell C scale is highly effective, it does have some limitations:
- Surface Finish: The accuracy of the test can be affected by the surface finish of the material. Rough or uneven surfaces can lead to inaccurate readings.

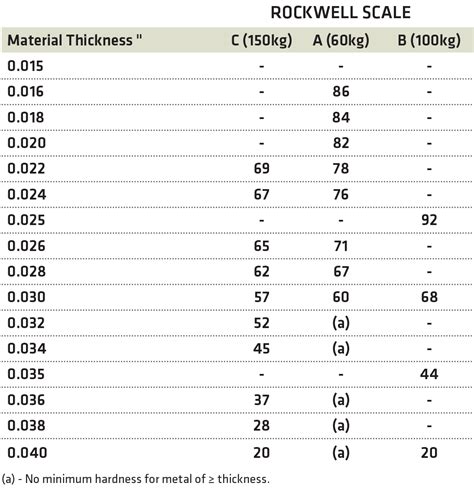

- Material Thickness: The Rockwell C scale is not suitable for very thin materials, as the indentation depth may exceed the material's thickness.
- Anisotropy: Materials with anisotropic properties (properties that vary with direction) may give different readings depending on the orientation of the test.
Comparison with Other Rockwell Scales
The Rockwell hardness testing method includes several scales, each designed for different types of materials and hardness ranges. Some of the most commonly used scales include:
| Scale | Indenter | Minor Load (kgf) | Major Load (kgf) | Typical Materials |
|---|---|---|---|---|
| Rockwell A | Diamond cone | 10 | 60 | Thin materials, shallow case-hardened steel |
| Rockwell B | 1/16" steel ball | 10 | 100 | Soft materials, aluminum alloys |
| Rockwell C | Diamond cone | 10 | 150 | Hard materials, steel, hard alloys |
| Rockwell D | Diamond cone | 10 | 100 | Very hard materials, thin steel |
| Rockwell E | 1/8" steel ball | 10 | 100 | Cast iron, aluminum alloys |
The choice of scale depends on the type of material being tested and the expected hardness range. The Rockwell C scale is particularly well-suited for harder materials, making it a popular choice in industries that require high-strength materials.
Calibration and Maintenance
To ensure accurate and reliable results, Rockwell hardness testers must be regularly calibrated and maintained. Calibration involves using certified reference blocks to verify the accuracy of the tester. Maintenance includes cleaning the indenter, checking the load application mechanism, and ensuring the tester is free from mechanical defects.
🛠️ Note: Regular calibration and maintenance are essential for maintaining the accuracy and reliability of Rockwell hardness testers. Follow the manufacturer's guidelines for calibration and maintenance procedures.
Interpreting Rockwell C Scale Results
Interpreting Rockwell C scale results involves understanding the hardness number in the context of the material being tested. A higher HRC number indicates a harder material. For example, a material with an HRC of 60 is harder than one with an HRC of 40. However, it is important to consider the specific application and requirements when interpreting hardness values.
Here are some general guidelines for interpreting Rockwell C scale results:
- Soft Materials: HRC below 20
- Medium Hardness: HRC between 20 and 40
- Hard Materials: HRC between 40 and 60
- Very Hard Materials: HRC above 60
It is also important to note that the Rockwell C scale is not a direct measure of a material's strength or toughness. Hardness is just one of many properties that contribute to a material's overall performance.
In the context of the Rockwell C scale, hardness is defined as the resistance of a material to plastic deformation. This means that a harder material will resist indentation more effectively than a softer material. However, hardness does not necessarily correlate with other mechanical properties, such as tensile strength or ductility.
For example, a material with a high HRC value may be very hard but also brittle, making it susceptible to fracture under certain conditions. Conversely, a material with a lower HRC value may be softer but more ductile, allowing it to deform without breaking.
Therefore, when interpreting Rockwell C scale results, it is important to consider the specific application and the other properties of the material. Hardness is just one piece of the puzzle, and a comprehensive understanding of the material's properties is essential for making informed decisions.
In summary, the Rockwell C scale is a valuable tool for measuring the hardness of materials, particularly metals and alloys. It provides a standardized method for comparing the hardness of different materials, which is crucial for quality control, material selection, and research and development. By understanding the principles of the Rockwell C scale and its applications, engineers and materials scientists can make informed decisions about material selection and performance.
In conclusion, the Rockwell C scale is an essential tool in the field of materials science and engineering. Its precision, speed, and versatility make it a preferred method for hardness testing in various industries. By understanding the principles of the Rockwell C scale and its applications, professionals can ensure the quality and performance of materials used in their projects. Whether in manufacturing, research, or quality control, the Rockwell C scale plays a crucial role in maintaining high standards and achieving optimal results.
