Right Ventricular Hypertrophy Ecg

Right ventricular hypertrophy (RVH) is a condition where the right ventricle of the heart thickens and enlarges, often due to increased pressure or volume overload. This condition can be detected through various diagnostic methods, with the electrocardiogram (ECG) being one of the most commonly used tools. Understanding Right Ventricular Hypertrophy ECG findings is crucial for accurate diagnosis and effective management of this condition.

Table of Contents

Understanding Right Ventricular Hypertrophy

Right ventricular hypertrophy occurs when the right ventricle of the heart has to work harder than usual to pump blood. This increased workload can be due to various underlying conditions, such as pulmonary hypertension, congenital heart defects, or chronic lung diseases. Over time, the right ventricle adapts by thickening its walls, which can lead to significant changes in the heart's electrical activity.

ECG Findings in Right Ventricular Hypertrophy

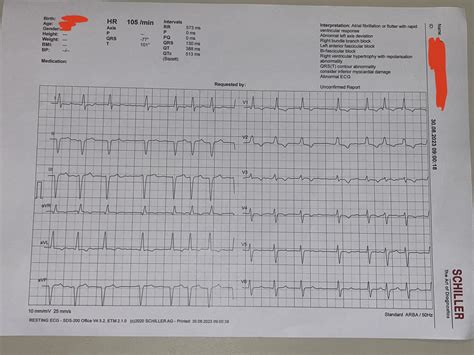

An ECG is a non-invasive test that records the electrical activity of the heart. In the context of Right Ventricular Hypertrophy ECG, several characteristic changes can be observed. These changes reflect the altered electrical conduction and increased muscle mass in the right ventricle. Some of the key ECG findings include:

Right Axis Deviation: The electrical axis of the heart shifts to the right, typically greater than +90 degrees.
R Wave in V1: An increased R wave amplitude in the V1 lead, often greater than 7 mm.
S Wave in V5 or V6: A deep S wave in the left precordial leads (V5 or V6), often greater than 7 mm.
R/S Ratio in V1: An R/S ratio greater than 1 in the V1 lead.
ST-Segment and T-Wave Changes: ST-segment depression and T-wave inversion in the right precordial leads (V1-V3).

Diagnostic Criteria for Right Ventricular Hypertrophy

Diagnosing Right Ventricular Hypertrophy ECG involves recognizing specific patterns and criteria. The most commonly used criteria are:

R/S Ratio in V1: An R/S ratio greater than 1 in the V1 lead.
R Wave in V1: An R wave amplitude greater than 7 mm in the V1 lead.
S Wave in V5 or V6: An S wave amplitude greater than 7 mm in the V5 or V6 leads.
Right Axis Deviation: An electrical axis greater than +90 degrees.

These criteria help clinicians identify Right Ventricular Hypertrophy ECG patterns and differentiate them from other cardiac conditions.

Differential Diagnosis

Several conditions can mimic the ECG findings of right ventricular hypertrophy, making differential diagnosis essential. Some of these conditions include:

Left Posterior Fascicular Block: This condition can cause right axis deviation and increased R wave in V1, similar to RVH.
Pulmonary Embolism: Acute pulmonary embolism can cause right ventricular strain and ECG changes similar to RVH.

Chronic Obstructive Pulmonary Disease (COPD): COPD can lead to pulmonary hypertension and subsequent RVH.

Atrial Septal Defect: This congenital heart defect can cause right ventricular volume overload and RVH.

Differentiating these conditions from Right Ventricular Hypertrophy ECG requires a comprehensive clinical evaluation, including medical history, physical examination, and additional diagnostic tests such as echocardiography and cardiac magnetic resonance imaging (MRI).

Management and Treatment

The management of right ventricular hypertrophy focuses on treating the underlying cause and alleviating symptoms. Treatment options may include:

Medications: Drugs such as diuretics, vasodilators, and inotropes may be prescribed to reduce right ventricular workload and improve cardiac function.

Oxygen Therapy: For patients with chronic lung diseases, oxygen therapy can help reduce pulmonary hypertension and improve right ventricular function.

Surgical Interventions: In cases of congenital heart defects or severe pulmonary hypertension, surgical procedures may be necessary to correct the underlying issue.

Lifestyle Modifications: Patients are often advised to make lifestyle changes, such as quitting smoking, maintaining a healthy weight, and engaging in regular physical activity.

Regular follow-up and monitoring are essential to assess the effectiveness of treatment and make necessary adjustments.

Prognosis and Complications

The prognosis of right ventricular hypertrophy varies depending on the underlying cause and the severity of the condition. Early diagnosis and appropriate management can improve outcomes and reduce the risk of complications. However, if left untreated, right ventricular hypertrophy can lead to several complications, including:

Heart Failure: Progressive right ventricular dysfunction can lead to heart failure, characterized by symptoms such as shortness of breath, fatigue, and fluid retention.

Arrhythmias: Right ventricular hypertrophy can increase the risk of arrhythmias, including atrial fibrillation and ventricular tachycardia.

Sudden Cardiac Death: In severe cases, right ventricular hypertrophy can lead to sudden cardiac death, particularly in patients with underlying genetic conditions.

Regular monitoring and timely intervention can help manage these complications and improve the quality of life for patients with right ventricular hypertrophy.

📝 Note: The information provided in this blog is for educational purposes only and should not be used as a substitute for professional medical advice. Always consult a healthcare provider for diagnosis and treatment.

Right ventricular hypertrophy is a complex condition that requires careful evaluation and management. Understanding the ECG findings associated with Right Ventricular Hypertrophy ECG is crucial for accurate diagnosis and effective treatment. By recognizing the characteristic patterns and differentiating them from other conditions, clinicians can provide appropriate care and improve outcomes for patients with this condition. Early intervention and regular monitoring are key to managing right ventricular hypertrophy and preventing complications. With advancements in diagnostic techniques and treatment options, the prognosis for patients with right ventricular hypertrophy continues to improve, offering hope for better quality of life and long-term health.
