In the realm of electronics, understanding the differences between a rheostat vs potentiometer is crucial for anyone working with circuits. Both devices are variable resistors, but they serve different purposes and have distinct characteristics. This post will delve into the intricacies of rheostats and potentiometers, comparing their functions, applications, and key differences to help you make informed decisions in your electronic projects.
Understanding Rheostats

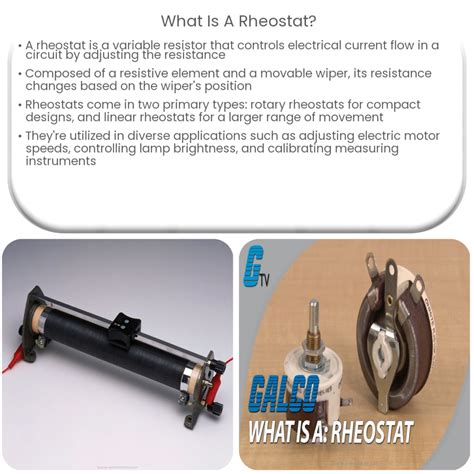

A rheostat is a type of variable resistor used to control current. It consists of a resistive element and a sliding contact that can be moved along the resistive element to adjust the resistance. Rheostats are typically used in applications where the primary goal is to control the amount of current flowing through a circuit.
Key features of rheostats include:
- Two Terminals: Rheostats have only two terminals, making them simpler in design compared to potentiometers.
- Current Control: They are primarily used to control current rather than voltage.
- Power Dissipation: Rheostats can handle higher power levels and are often used in applications where significant power dissipation is required.
Understanding Potentiometers
A potentiometer, on the other hand, is a three-terminal variable resistor. It has a resistive element and a wiper that can be moved along the resistive element to vary the resistance between the wiper and one of the two outer terminals. Potentiometers are used to control voltage levels in a circuit.
Key features of potentiometers include:
- Three Terminals: Potentiometers have three terminals, allowing for more versatile applications.
- Voltage Control: They are primarily used to control voltage rather than current.
- Signal Adjustment: Potentiometers are often used in applications where precise signal adjustment is required, such as in audio equipment.

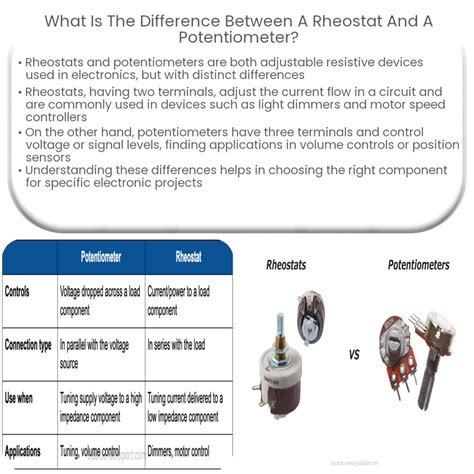

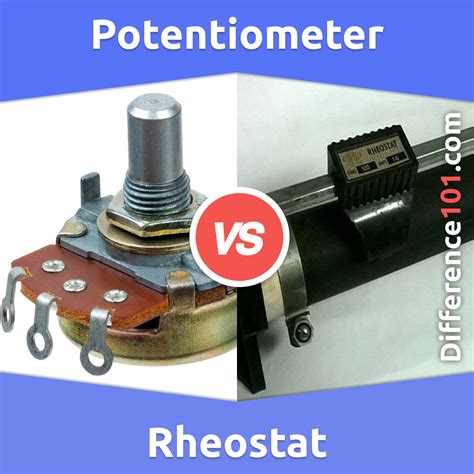

Rheostat Vs Potentiometer: Key Differences
While both rheostats and potentiometers are variable resistors, they have several key differences that make them suitable for different applications. Here is a detailed comparison:
| Feature | Rheostat | Potentiometer |
|---|---|---|
| Number of Terminals | Two | Three |
| Primary Function | Current Control | Voltage Control |
| Power Handling | Higher Power Dissipation | Lower Power Dissipation |
| Applications | Motor speed control, lighting dimmers | Volume control, signal adjustment |
These differences highlight the specific use cases for each device. Rheostats are ideal for applications where current control and high power dissipation are required, while potentiometers are better suited for precise voltage control and signal adjustment.
Applications of Rheostats
Rheostats are commonly used in various applications where current control is essential. Some of the most common uses include:
- Motor Speed Control: Rheostats are used to control the speed of electric motors by adjusting the current flowing through the motor.
- Lighting Dimmers: In lighting systems, rheostats can be used to dim lights by controlling the current to the light bulbs.
- Heating Elements: Rheostats are used to control the current to heating elements, allowing for precise temperature control.
Rheostats are particularly useful in applications where the primary goal is to regulate the amount of current flowing through a circuit, making them indispensable in many industrial and household applications.
Applications of Potentiometers
Potentiometers are widely used in applications where precise voltage control and signal adjustment are required. Some of the most common uses include:
- Volume Control: In audio equipment, potentiometers are used to adjust the volume by controlling the voltage level of the audio signal.
- Signal Adjustment: Potentiometers are used in various electronic devices to adjust signals, such as in amplifiers and oscilloscopes.
- Sensor Calibration: In measurement and control systems, potentiometers are used to calibrate sensors by adjusting the voltage levels.
Potentiometers are versatile and can be found in a wide range of electronic devices, from simple audio equipment to complex measurement systems.
Choosing Between a Rheostat and a Potentiometer
When deciding between a rheostat and a potentiometer, it's essential to consider the specific requirements of your application. Here are some factors to consider:
- Current vs. Voltage Control: If your application requires current control, a rheostat is the better choice. If voltage control is needed, opt for a potentiometer.
- Power Dissipation: For applications with high power dissipation, rheostats are more suitable. For lower power applications, potentiometers are sufficient.
- Precision: If precise signal adjustment is required, potentiometers offer better control due to their three-terminal design.
By understanding these factors, you can make an informed decision on whether to use a rheostat or a potentiometer in your electronic projects.
💡 Note: Always consider the specific requirements of your application when choosing between a rheostat and a potentiometer. The wrong choice can lead to inefficiencies or even damage to your circuit.
In summary, rheostats and potentiometers are both essential components in electronics, each with its unique characteristics and applications. Understanding the differences between a rheostat vs potentiometer will help you select the right component for your projects, ensuring optimal performance and efficiency.
