Reversing Camera Wiring Guide

Installing a reversing camera in your vehicle can significantly enhance safety and convenience, especially when parking or maneuvering in tight spaces. This comprehensive Reversing Camera Wiring Guide will walk you through the entire process, from selecting the right components to wiring and testing your new reversing camera system. Whether you're a DIY enthusiast or a professional installer, this guide will provide you with the necessary steps to ensure a successful installation.

Table of Contents

Understanding Reversing Camera Systems

A reversing camera system typically consists of a camera, a monitor, and the necessary wiring. The camera is mounted at the rear of the vehicle, providing a clear view of the area behind it. The monitor, usually integrated into the vehicle's dashboard or rearview mirror, displays the camera feed. The wiring connects these components, ensuring seamless communication and power supply.

Selecting the Right Components

Before diving into the installation process, it's crucial to select the right components for your vehicle. Here are some key factors to consider:

Camera Type: Choose between analog and digital cameras. Analog cameras are generally more affordable, while digital cameras offer better image quality and additional features like night vision.
Monitor Type: Decide whether you want a standalone monitor or an integrated solution. Standalone monitors are easier to install but may not blend seamlessly with your vehicle's interior. Integrated solutions, such as those built into the rearview mirror, offer a more discreet and polished look.
Power Supply: Ensure that your camera and monitor are compatible with your vehicle's power supply. Most reversing camera systems require a 12V power source.

Gathering the Necessary Tools

To successfully install your reversing camera system, you'll need the following tools:

Screwdriver set
Wire strippers
Crimping tool
Electrical tape
Zip ties
Drill and drill bits
Soldering iron and solder (optional)

Installing the Reversing Camera

The first step in the installation process is to mount the reversing camera at the rear of your vehicle. Follow these steps:

Choose a suitable location for the camera, ensuring it provides a clear view of the area behind the vehicle. Common locations include the rear bumper, license plate frame, or tailgate.
Mark the mounting holes and drill them carefully to avoid damaging any wiring or components.
Secure the camera in place using the provided mounting hardware.
Connect the camera's power and video cables, ensuring they are securely fastened to prevent any movement or disconnection.

🔧 Note: Ensure that the camera is properly aligned and secured to avoid any vibrations or movement that could affect the image quality.

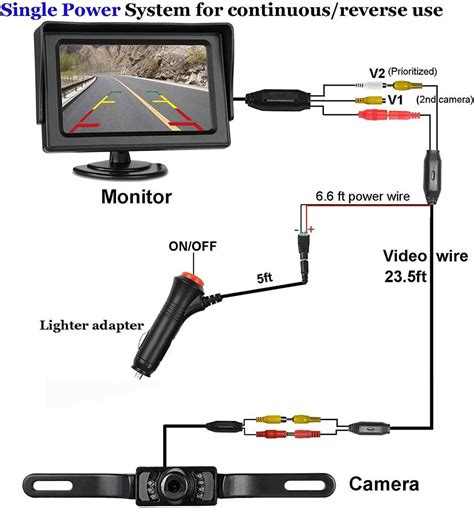

Running the Wiring

Running the wiring from the reversing camera to the monitor is a critical step in the installation process. Follow these steps to ensure a clean and efficient wiring setup:

Route the camera's power and video cables through the vehicle's interior, avoiding any sharp bends or kinks that could damage the wires.
Use zip ties or cable clips to secure the wires along the vehicle's frame or interior panels, ensuring they are neatly organized and out of sight.

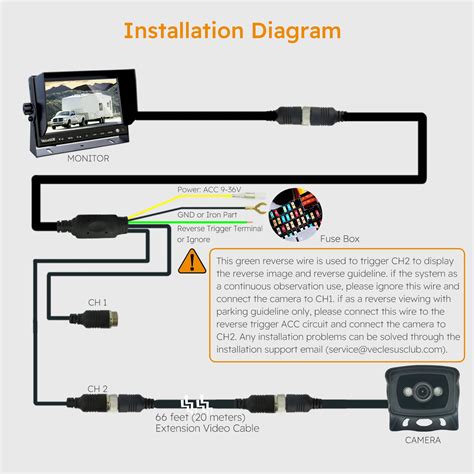

Connect the power cable to the vehicle's reverse light circuit, ensuring that the camera only activates when the vehicle is in reverse gear. This can typically be done by tapping into the reverse light wiring harness.
Connect the video cable to the monitor, ensuring a secure connection.

🔧 Note: Be cautious when running wires through the vehicle's interior to avoid damaging any existing wiring or components. If you're unsure about any step, consult a professional installer.

Installing the Monitor

The monitor is the visual component of the reversing camera system, displaying the camera feed to the driver. Follow these steps to install the monitor:

Choose a suitable location for the monitor, ensuring it is easily visible to the driver. Common locations include the dashboard, windshield, or rearview mirror.
Mount the monitor using the provided mounting hardware, ensuring it is securely fastened and properly aligned.
Connect the monitor's power and video cables, ensuring they are securely fastened to prevent any movement or disconnection.

🔧 Note: If you're installing an integrated monitor, such as one built into the rearview mirror, follow the manufacturer's instructions for proper installation and alignment.

Testing the System

Once the reversing camera and monitor are installed, it's time to test the system to ensure everything is working correctly. Follow these steps:

Turn on the vehicle's ignition and shift into reverse gear.
Check the monitor to ensure the camera feed is displayed clearly and without any interference.
Adjust the camera's angle and position if necessary to achieve the best possible view.
Test the system in various lighting conditions to ensure optimal performance.

🔧 Note: If you encounter any issues during testing, double-check all connections and wiring to ensure they are secure and properly connected.

Troubleshooting Common Issues

Even with careful installation, you may encounter some common issues with your reversing camera system. Here are some troubleshooting tips:

No Image on Monitor: Check all connections and wiring to ensure they are secure and properly connected. Verify that the camera is receiving power and that the video cable is correctly connected to the monitor.
Poor Image Quality: Adjust the camera's angle and position to ensure a clear view. Check for any obstructions or debris that may be affecting the image quality.
Camera Not Activating: Ensure that the camera's power cable is connected to the vehicle's reverse light circuit. Verify that the reverse lights are functioning correctly.

Maintaining Your Reversing Camera System

To ensure the longevity and optimal performance of your reversing camera system, follow these maintenance tips:

Regularly clean the camera lens to remove any dirt, debris, or condensation that may affect the image quality.
Inspect the wiring and connections periodically to ensure they are secure and free from damage.
Test the system regularly to ensure it is functioning correctly and make any necessary adjustments.

🔧 Note: Avoid exposing the camera to extreme temperatures or harsh weather conditions, as this can affect its performance and lifespan.

Additional Features and Accessories

To enhance the functionality and convenience of your reversing camera system, consider adding some additional features and accessories:

Night Vision: Some reversing cameras come with built-in night vision, allowing for clear visibility in low-light conditions.
Parking Sensors: Integrate parking sensors with your reversing camera system for added safety and convenience when parking.
GPS Navigation: Combine your reversing camera system with a GPS navigation system for a comprehensive driving experience.

Here is a table summarizing the key components and their functions:

Component	Function
Reversing Camera	Provides a clear view of the area behind the vehicle.
Monitor	Displays the camera feed to the driver.
Power Supply	Provides power to the camera and monitor.
Wiring	Connects the camera and monitor, ensuring seamless communication and power supply.

By following this comprehensive Reversing Camera Wiring Guide, you can successfully install a reversing camera system in your vehicle, enhancing safety and convenience. Whether you're a DIY enthusiast or a professional installer, this guide provides the necessary steps to ensure a successful installation.

In conclusion, installing a reversing camera system involves selecting the right components, gathering the necessary tools, and following a step-by-step installation process. By understanding the key components, running the wiring correctly, and testing the system thoroughly, you can ensure optimal performance and safety. Regular maintenance and troubleshooting will help prolong the lifespan of your reversing camera system, providing you with a reliable and convenient driving experience.
