Restriction Fragment Length Polymorphisms

Genetic research has revolutionized our understanding of heredity and disease, and one of the foundational techniques in this field is Restriction Fragment Length Polymorphisms (RFLP). RFLP analysis has been instrumental in various applications, from paternity testing to disease diagnosis and genetic mapping. This blog post delves into the intricacies of RFLP, its applications, and its significance in modern genetics.

Table of Contents

Understanding Restriction Fragment Length Polymorphisms

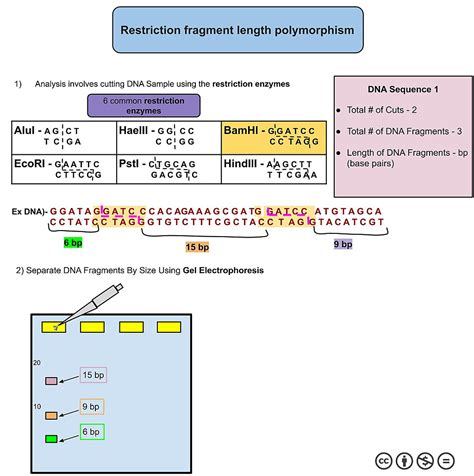

Restriction Fragment Length Polymorphisms (RFLP) is a technique used to detect variations in DNA sequences. The method involves cutting DNA into fragments using restriction enzymes, which recognize specific sequences and cleave the DNA at those sites. The resulting fragments are then separated by size using gel electrophoresis. Variations in the DNA sequence can lead to differences in the sizes of the fragments, which can be visualized and analyzed.

The Process of RFLP Analysis

RFLP analysis involves several key steps:

DNA Extraction: The first step is to extract DNA from the sample, which could be from blood, tissue, or other biological sources.
Restriction Digestion: The extracted DNA is then digested using restriction enzymes. These enzymes cut the DNA at specific recognition sites, producing fragments of varying lengths.
Gel Electrophoresis: The digested DNA fragments are separated by size using gel electrophoresis. This process involves running the fragments through a gel matrix, where smaller fragments move faster than larger ones.
Southern Blotting: The separated DNA fragments are transferred from the gel to a membrane. This process, known as Southern blotting, allows for the immobilization of the DNA fragments on the membrane.
Probe Hybridization: A labeled DNA probe, which is complementary to the target sequence, is hybridized to the membrane. The probe binds to the specific DNA fragments of interest.
Detection: The hybridized probe is detected, usually through autoradiography or fluorescence, revealing the presence and size of the target DNA fragments.

🔍 Note: The choice of restriction enzyme is crucial as it determines the specificity and resolution of the RFLP analysis.

Applications of RFLP

RFLP analysis has a wide range of applications in genetics and molecular biology. Some of the most notable applications include:

Paternity Testing: RFLP is used to determine paternity by comparing DNA fragments from the child and potential father. Matching fragments provide evidence of a genetic relationship.
Disease Diagnosis: RFLP can identify genetic mutations associated with diseases. For example, it can detect the presence of mutations in genes like CFTR, which is associated with cystic fibrosis.
Genetic Mapping: RFLP markers are used to create genetic maps, which help in identifying the location of genes on chromosomes. This is essential for understanding genetic disorders and developing genetic therapies.
Forensic Science: In forensic investigations, RFLP analysis can match DNA samples from crime scenes to suspects, providing crucial evidence in legal cases.
Plant and Animal Breeding: RFLP is used in agricultural research to identify desirable traits in plants and animals, aiding in selective breeding programs.

Advantages and Limitations of RFLP

RFLP analysis offers several advantages, including high specificity and the ability to detect single nucleotide polymorphisms (SNPs). However, it also has limitations that have led to the development of more advanced techniques.

Advantages

High Specificity: RFLP can detect specific DNA sequences with high accuracy.
Versatility: It can be applied to a wide range of biological samples and species.
Cost-Effective: Compared to some modern techniques, RFLP is relatively inexpensive.

Limitations

Time-Consuming: The process involves multiple steps and can take several days to complete.
Low Resolution: RFLP may not detect small variations in DNA sequences, limiting its sensitivity.
Requires Large Amounts of DNA: The technique often requires a significant amount of DNA, which can be challenging to obtain from some samples.

📚 Note: The limitations of RFLP have led to the development of more advanced techniques like Polymerase Chain Reaction (PCR) and DNA sequencing, which offer higher sensitivity and resolution.

RFLP in Genetic Mapping

One of the most significant applications of RFLP is in genetic mapping. Genetic maps provide a framework for understanding the location and function of genes. RFLP markers are used to create these maps by identifying polymorphic sites across the genome. These markers help in:

Identifying Disease Genes: By mapping the location of genes associated with genetic disorders, researchers can develop targeted therapies.
Studying Genetic Diversity: RFLP markers can be used to study genetic diversity within and between populations, aiding in evolutionary studies.
Marker-Assisted Selection: In agriculture, RFLP markers are used to select plants and animals with desirable traits, enhancing breeding programs.

Genetic mapping using RFLP involves several steps:

Identification of Polymorphic Sites: RFLP markers are identified by detecting variations in DNA sequences.
Mapping the Genome: The markers are mapped to specific locations on chromosomes, creating a genetic map.
Analyzing Genetic Data: The genetic data is analyzed to understand the inheritance patterns and genetic relationships.

Here is a simplified table illustrating the steps involved in genetic mapping using RFLP:

Step	Description
1. DNA Extraction	Extract DNA from the sample.
2. Restriction Digestion	Digest DNA with restriction enzymes.
3. Gel Electrophoresis	Separate DNA fragments by size.
4. Southern Blotting	Transfer DNA fragments to a membrane.
5. Probe Hybridization	Hybridize labeled probes to the membrane.
6. Detection	Detect hybridized probes.
7. Data Analysis	Analyze the genetic data to create a map.

RFLP in Disease Diagnosis

RFLP analysis plays a crucial role in disease diagnosis by identifying genetic mutations associated with various disorders. For example, cystic fibrosis is caused by mutations in the CFTR gene. RFLP can detect these mutations by analyzing DNA fragments from affected individuals. The process involves:

DNA Extraction: Extract DNA from the patient's sample.
Restriction Digestion: Digest the DNA with restriction enzymes.
Gel Electrophoresis: Separate the DNA fragments by size.
Southern Blotting: Transfer the fragments to a membrane.
Probe Hybridization: Hybridize a labeled probe specific to the CFTR gene.
Detection: Detect the hybridized probe to identify mutations.

RFLP analysis can also be used to diagnose other genetic disorders, such as:

Sickle Cell Anemia: Detect mutations in the HBB gene.
Huntington's Disease: Identify the expanded CAG repeat in the HTT gene.
Thalassemia: Detect mutations in the HBA and HBB genes.

🔬 Note: RFLP analysis is particularly useful for diagnosing genetic disorders that involve large deletions or insertions, as these can be easily detected by changes in fragment sizes.

RFLP in Forensic Science

In forensic science, RFLP analysis is used to match DNA samples from crime scenes to suspects. This technique has been instrumental in solving numerous criminal cases by providing irrefutable evidence. The process involves:

DNA Extraction: Extract DNA from biological evidence, such as blood, saliva, or hair.
Restriction Digestion: Digest the DNA with restriction enzymes.
Gel Electrophoresis: Separate the DNA fragments by size.
Southern Blotting: Transfer the fragments to a membrane.
Probe Hybridization: Hybridize a labeled probe specific to the target DNA sequence.
Detection: Detect the hybridized probe to match the DNA samples.

RFLP analysis in forensic science has several advantages, including:

High Specificity: The technique can detect specific DNA sequences with high accuracy.
Non-Invasive: DNA can be extracted from various biological samples without causing harm to the individual.
Legal Admissibility: RFLP results are widely accepted in courts as reliable evidence.

However, RFLP also has limitations, such as the requirement for large amounts of DNA and the time-consuming nature of the process. Modern techniques like PCR and DNA sequencing have largely replaced RFLP in forensic applications due to their higher sensitivity and efficiency.

🔍 Note: Despite its limitations, RFLP analysis remains a valuable tool in forensic science, particularly in cases where large amounts of DNA are available.

RFLP in Plant and Animal Breeding

In agriculture, RFLP analysis is used to identify desirable traits in plants and animals, aiding in selective breeding programs. This technique helps in:

Marker-Assisted Selection: Identifying genetic markers associated with desirable traits, such as disease resistance or high yield.
Genetic Diversity Studies: Analyzing genetic diversity within and between populations to enhance breeding programs.
Trait Mapping: Mapping the location of genes associated with specific traits, aiding in the development of improved varieties.

RFLP analysis in plant and animal breeding involves several steps:

DNA Extraction: Extract DNA from the plant or animal sample.
Restriction Digestion: Digest the DNA with restriction enzymes.
Gel Electrophoresis: Separate the DNA fragments by size.
Southern Blotting: Transfer the fragments to a membrane.
Probe Hybridization: Hybridize a labeled probe specific to the target DNA sequence.
Detection: Detect the hybridized probe to identify genetic markers.

RFLP analysis has been successfully used in various agricultural applications, such as:

Crop Improvement: Identifying genetic markers for disease resistance, drought tolerance, and high yield in crops like rice, wheat, and maize.
Livestock Breeding: Selecting animals with desirable traits, such as high milk production, meat quality, and disease resistance.
Forestry: Enhancing the genetic diversity and productivity of tree species.

🌱 Note: RFLP analysis is particularly useful in plant and animal breeding for its ability to detect genetic variations that are not visible through phenotypic observations.

RFLP analysis has significantly contributed to our understanding of genetics and its applications in various fields. From paternity testing to disease diagnosis and genetic mapping, RFLP has provided valuable insights into the genetic makeup of organisms. However, with the advent of more advanced techniques like PCR and DNA sequencing, the use of RFLP has declined. Nevertheless, it remains a foundational technique in genetics, laying the groundwork for modern genetic research.
